Roof Lid Glass Operation Current Check
WARNING: This page is about a different variant/trim than selected.

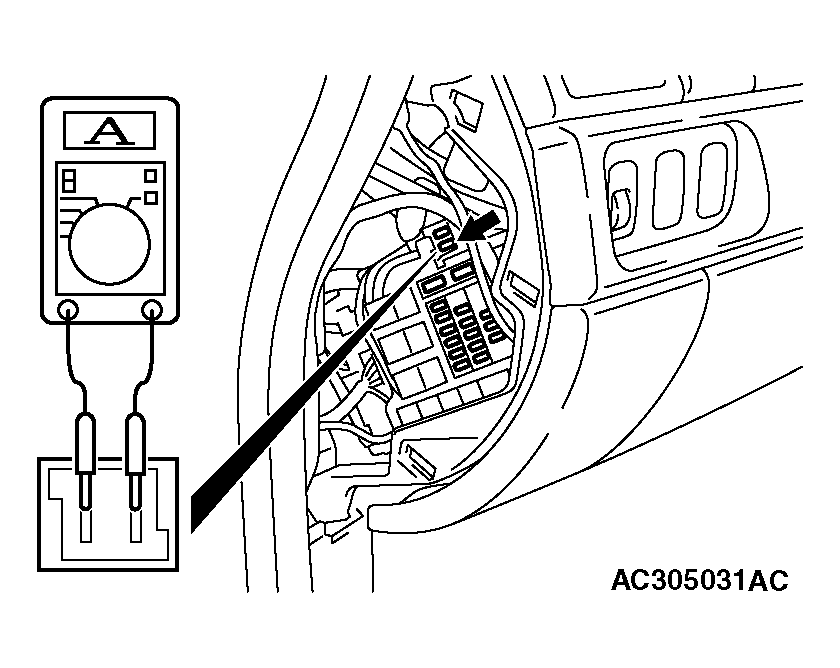

- Remove the fuse of the sunroof, then connect the circuit tester as shown in Fig 1.
- Turn ON the sunroof switch, then measure the operating current when the roof lid glass is halfway opened.
Standard value: 7 A or less [at 20 °C (68 °F)]
- Check the following areas if the operating current of exceeds the standard value:
- Sunroof installation, deformation and appearance of any foreign substances.
- Drive cable installation.
- Tilting of roof lid glass.
