Adjustment Of Hood Height

WARNING: This page is about a different variant/trim than selected.

Turn the hood damper until its height is as shown. If the hood height is still not even at the left and right sides, turn the hood damper further until the hood height is even.

NOTE: Turning a new hood damper one full turn will increase/decrease the hood height by approximately 3 mm (0.1 inch).

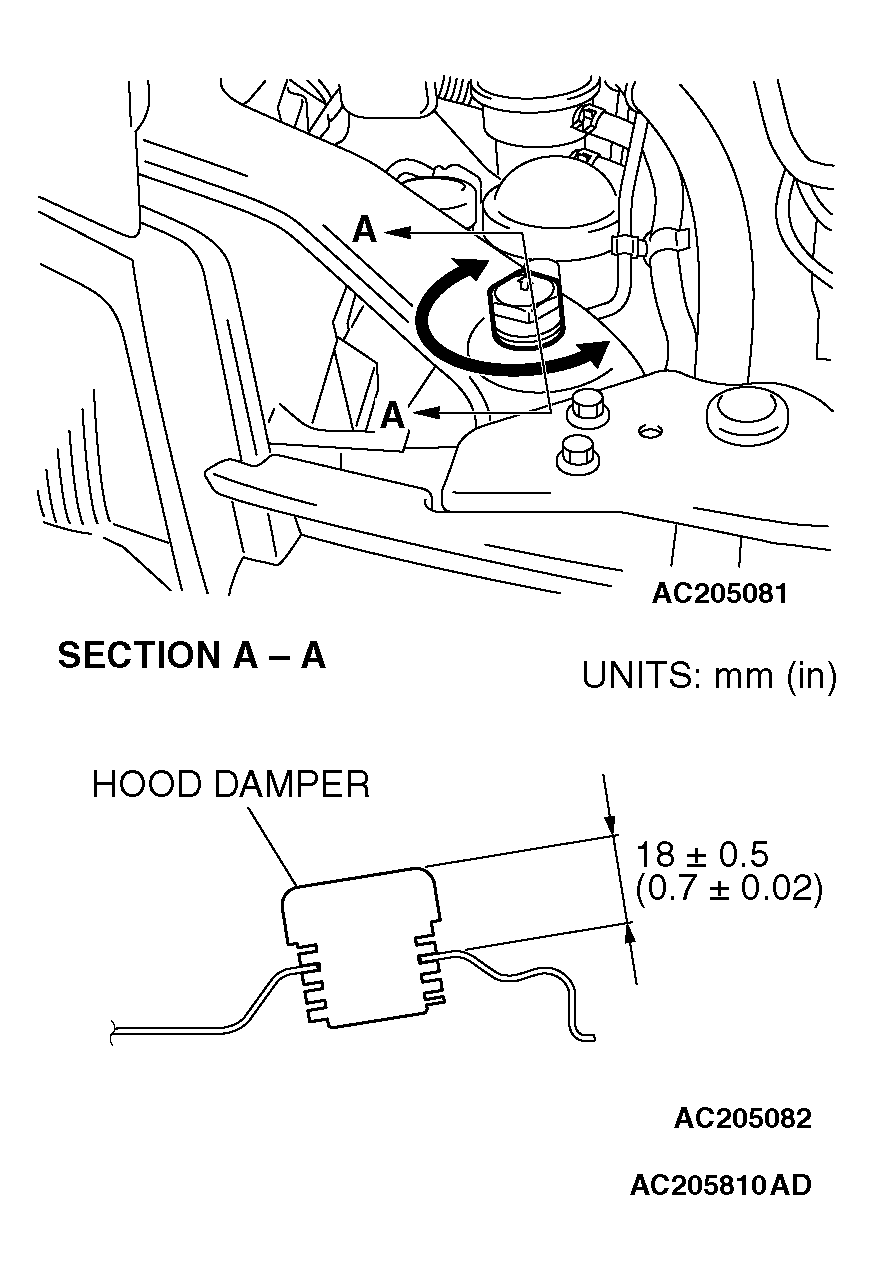

Fig 1: Adjusting Hood Height (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

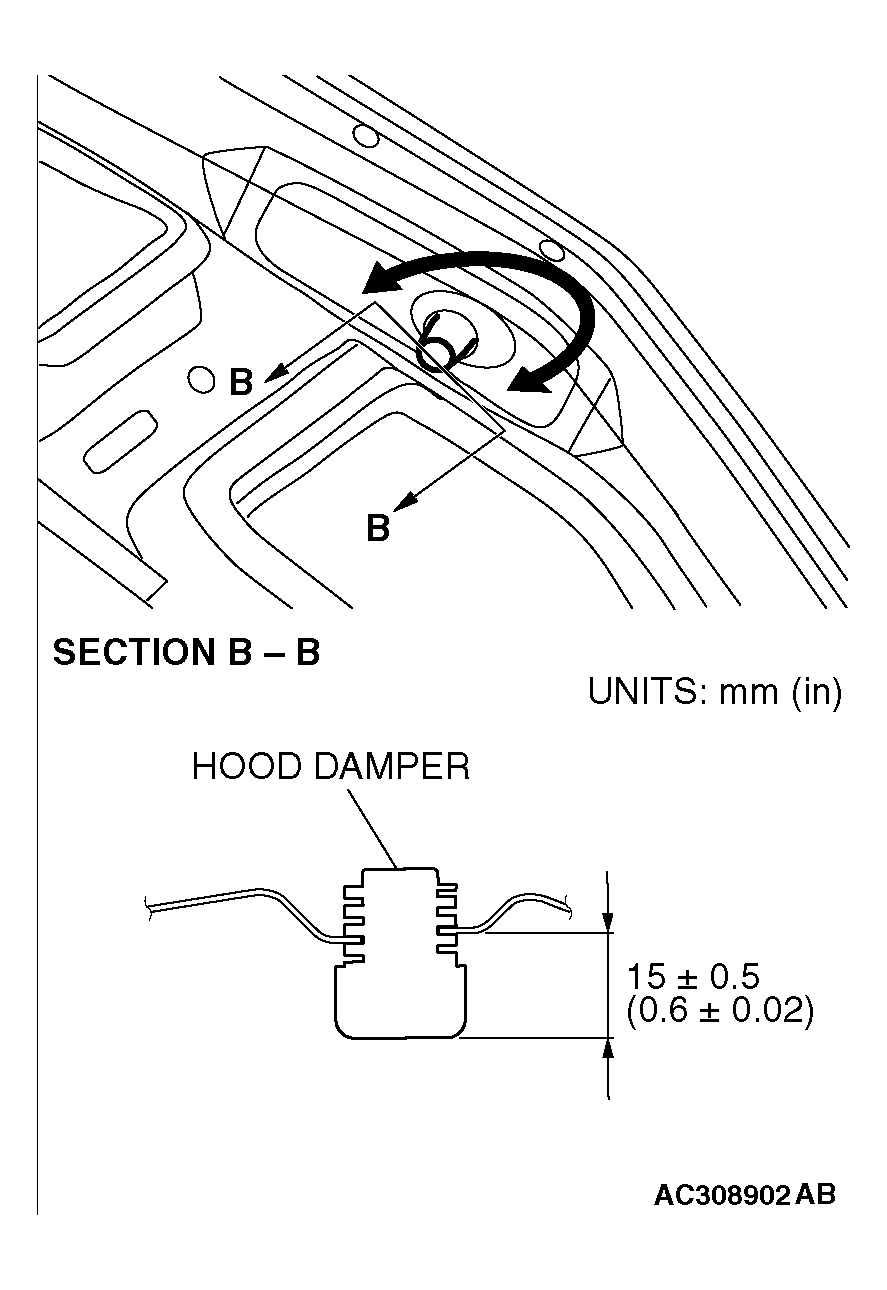

Fig 2: Adjusting Hood Height (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
