<< A >> Hood Lock Release Cable Removal

WARNING: This page is about a different variant/trim than selected.

Release the grommet as shown, and pull out the hood lock release cable in the arrow direction (passenger compartment side).

NOTE: If you attempt to pull out the hood lock release cable in the opposite direction, the end of the hood lock release cable will engage the grommet and prevent cable removal.

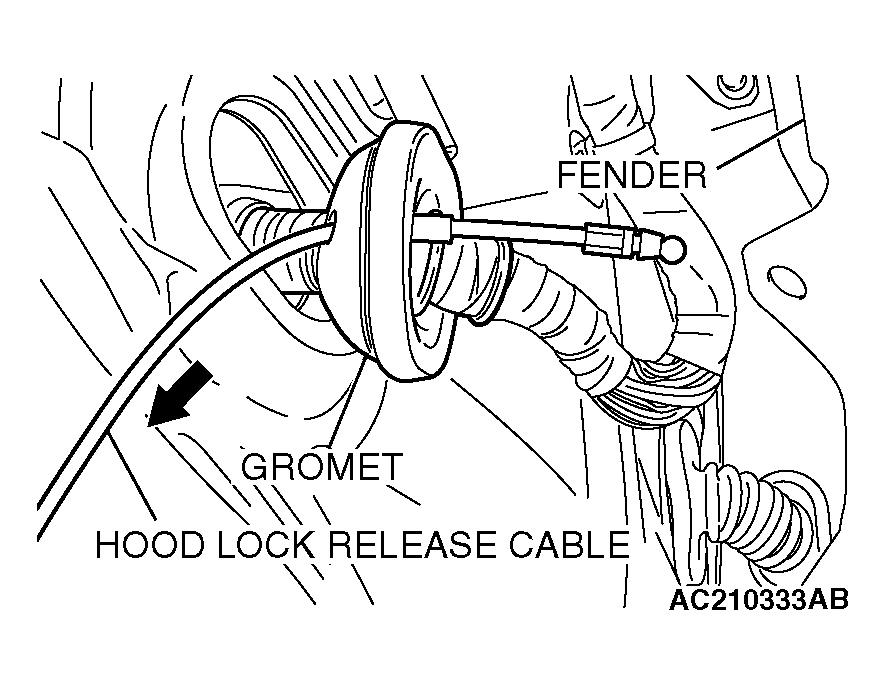

Fig 1: Removing Hood Lock Release Cable
G04255609Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
