Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

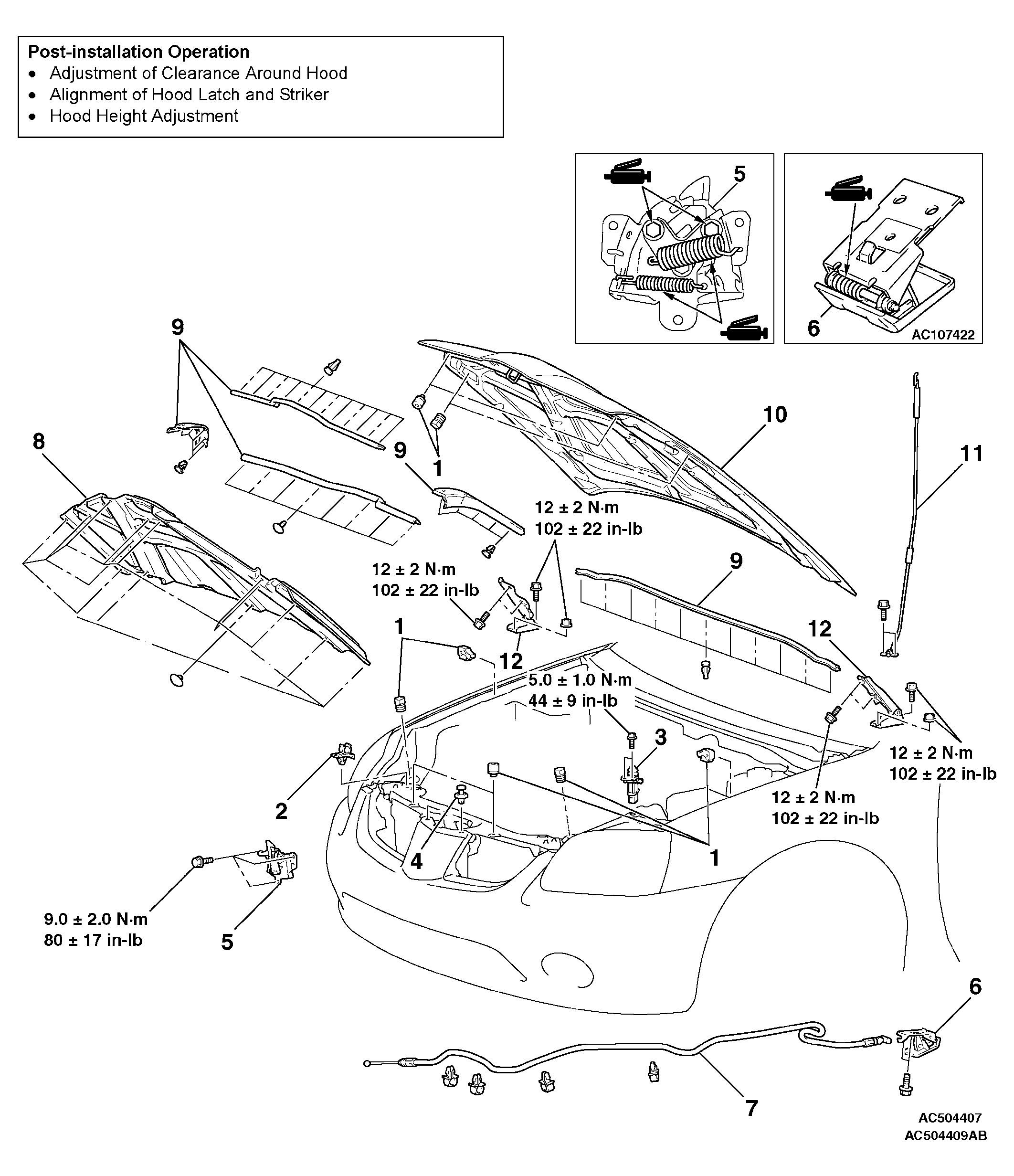

Fig 1: Removing/Installing Hood
G04255607Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

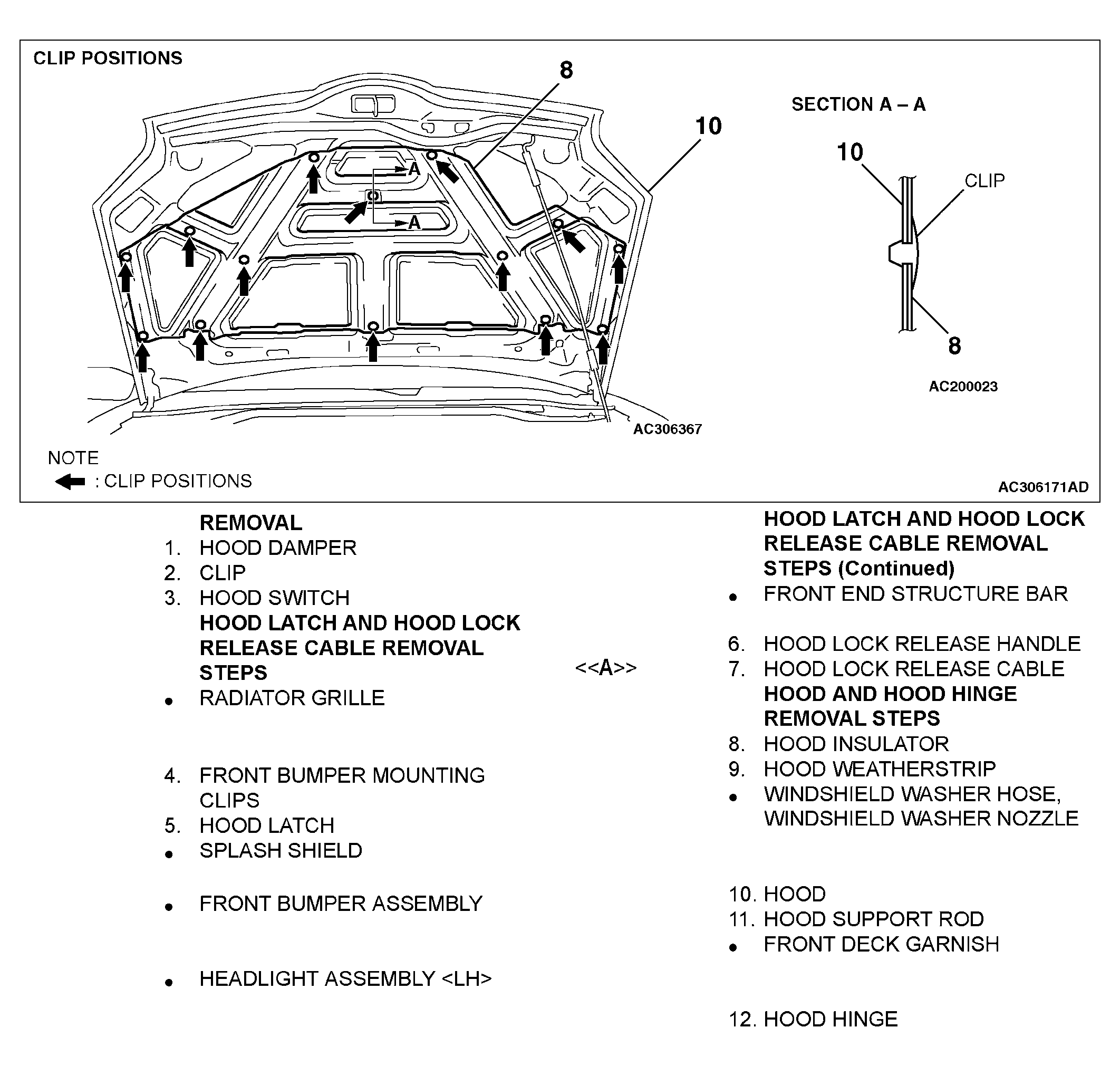

Fig 2: Identifying Clip Positions (Hood)
G04255608Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
