Glass Sliding Mechanism Check And Adjustment
WARNING: This page is about a different variant/trim than selected.
If the window glass automatically starts moving downwards at the wrong time while it is being raised, carry out the following adjustment or replacement procedures.
- Remove the door trim assembly (Refer to DOOR TRIM ).
- Remove the waterproof film (Refer to WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP
).CAUTION: Insert a cushion or similar object to prevent damage to the glass if it should fall.
- Remove the window regulator assembly from the door window glass, and then raise and lower the door window glass by hand to check the operation force.

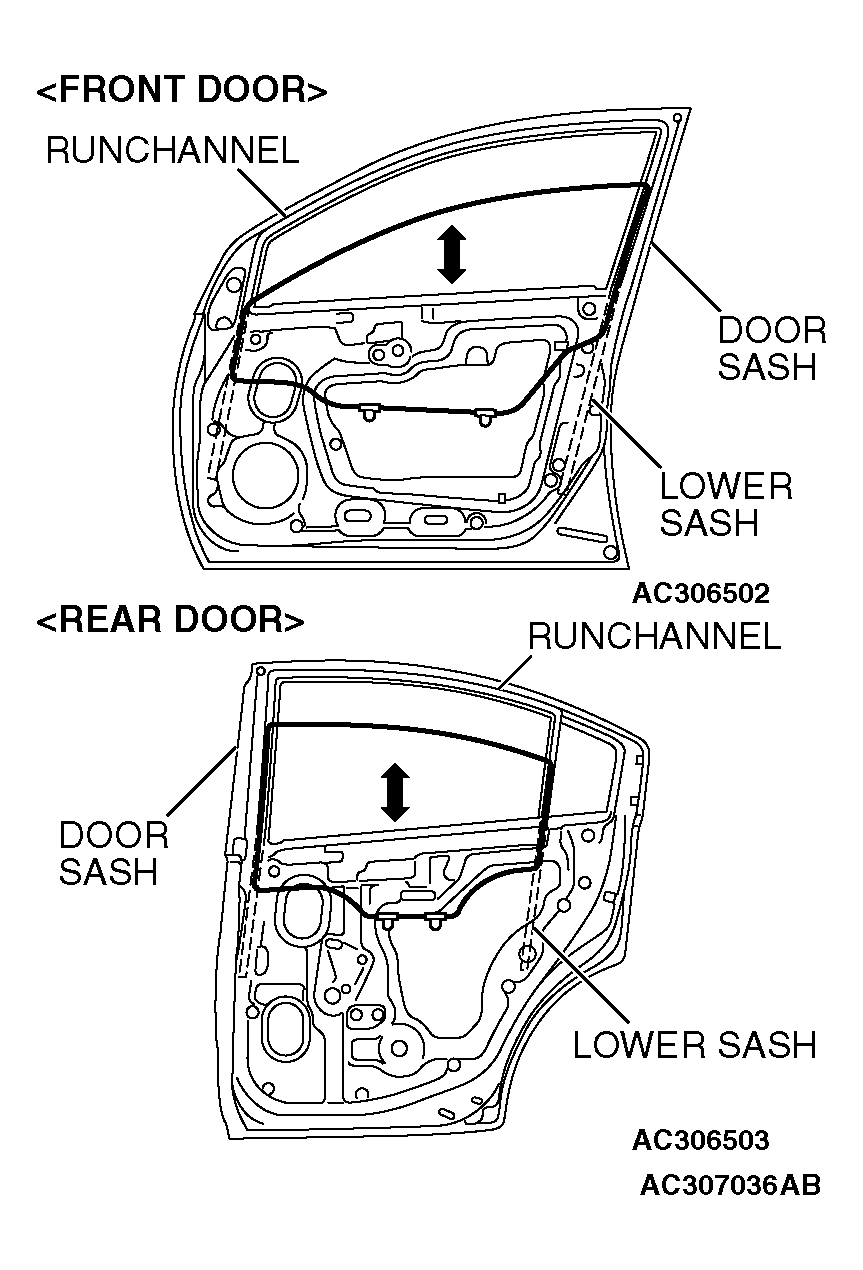

- If the door window glass does not move up and down smoothly, check or repair the following points:
- Check the installation condition of the runchannel.
- Repair any twisting in the door sash.
- Check the installation condition of the lower sash.NOTE: To align the lower sash, loosen the lower sash mounting bolts, and move the lower sash along the oblong mounting holes.
- If repair or adjustment is not possible, replace the door assembly.
