Door Window Glass Adjustment

Check that the door glass moves while contacting the door glass channel when it is raised and lowered fully. If not, adjust the door window according to the following procedures.

1. Remove the door trim assembly (Refer to DOOR TRIM ).
2. Remove the waterproof film (Refer to WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP  ).
3. Loosen the door window glass mounting bolts.
4. Adjust the position of the door window glass so that it is aligned with the runchannel. On completion, tighten the door window glass mounting bolts.

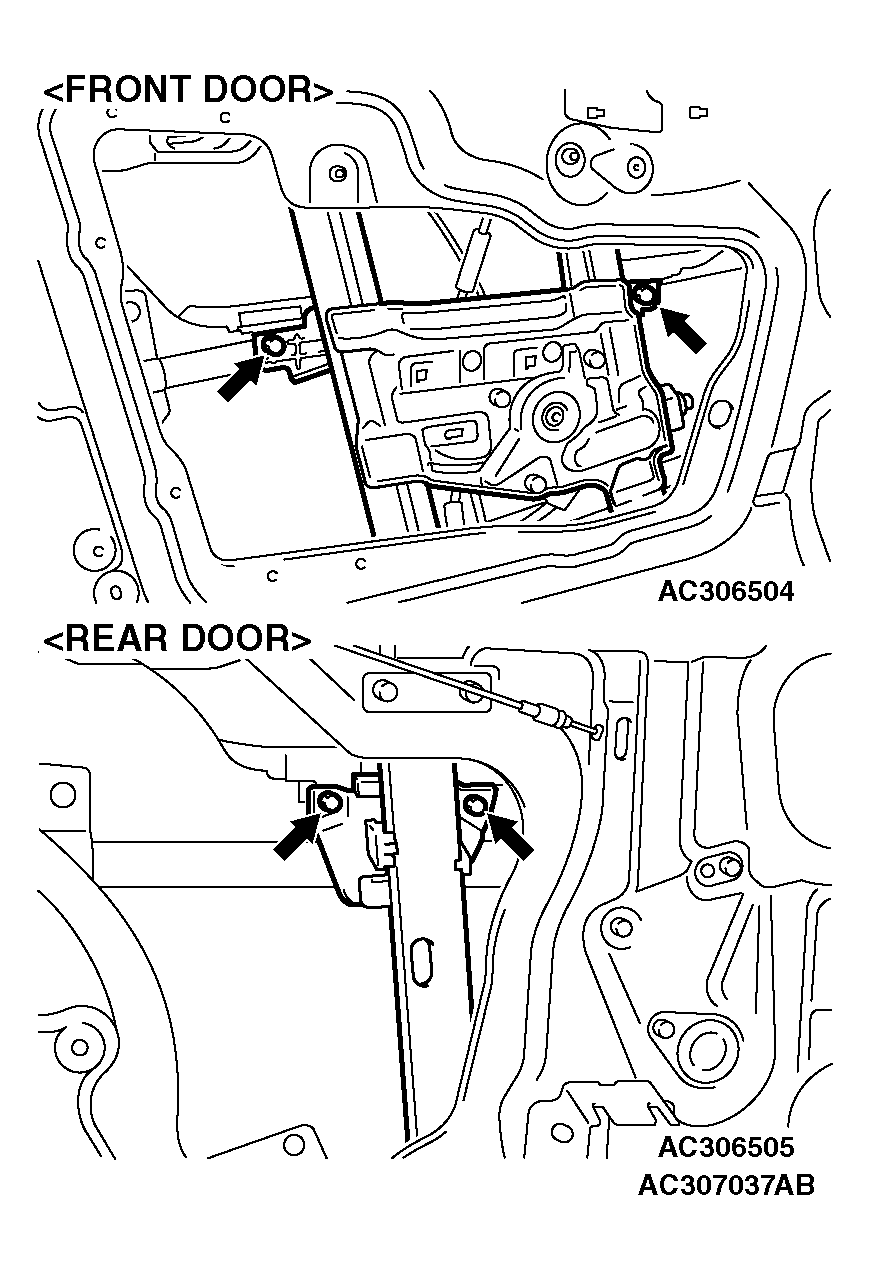

   Fig 1: Adjusting Door Window Glass

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
