Door Inside Handle Lock Knob Stroke Check

WARNING: This page is about a different variant/trim than selected.
  1. Remove the door trim assembly (Refer to DOOR TRIM ).
  2. Check that the door inside handle lock knob stroke is within the standard value.

    Standard value (B): 21.6 mm (0.850 inch)

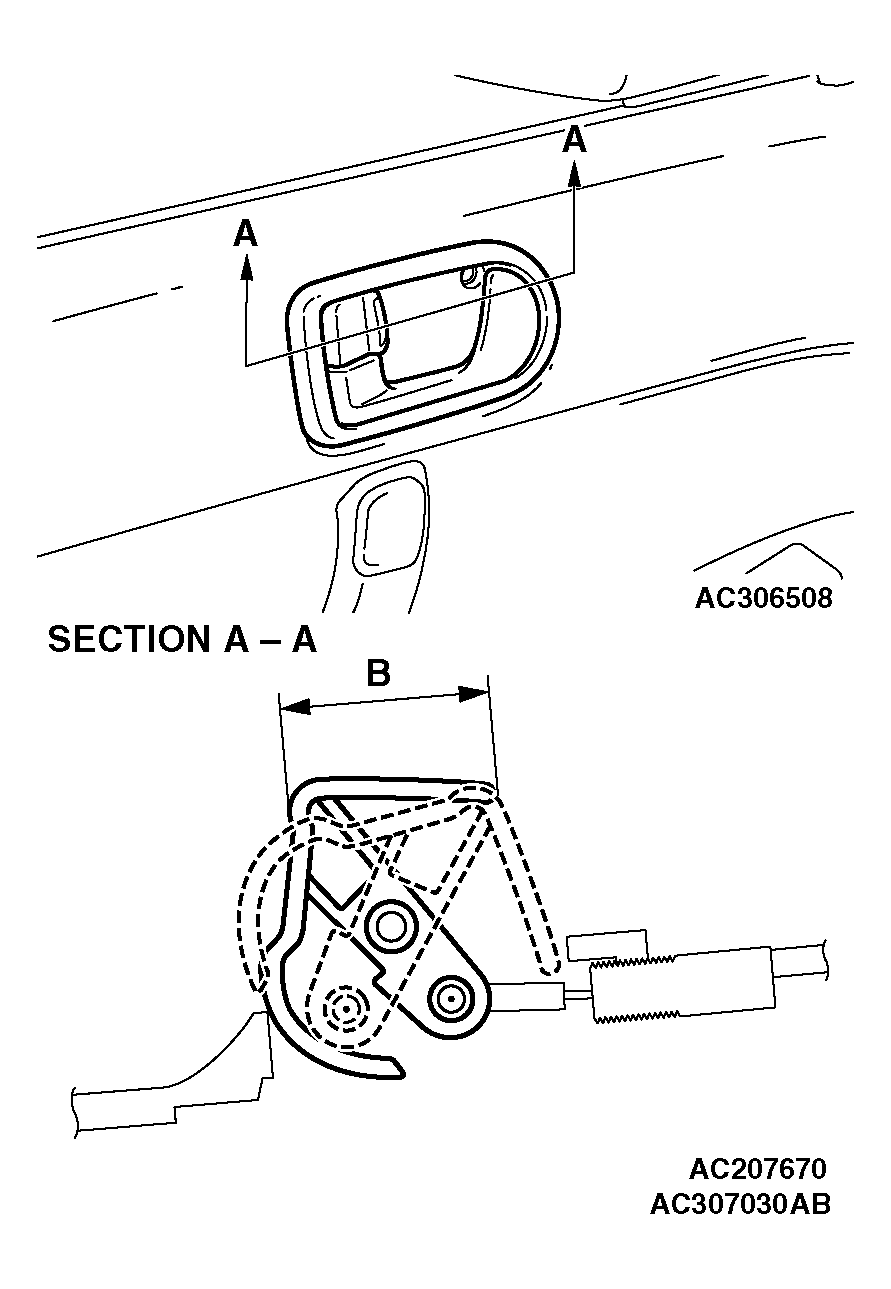

    Fig 1: Checking Door Inside Handle Lock Knob Stroke
    G04255651Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. If not within the standard value, adjust the inside handle lock knob stroke with the outer cable end connecting the inside handle lock knob and inside lock cable.

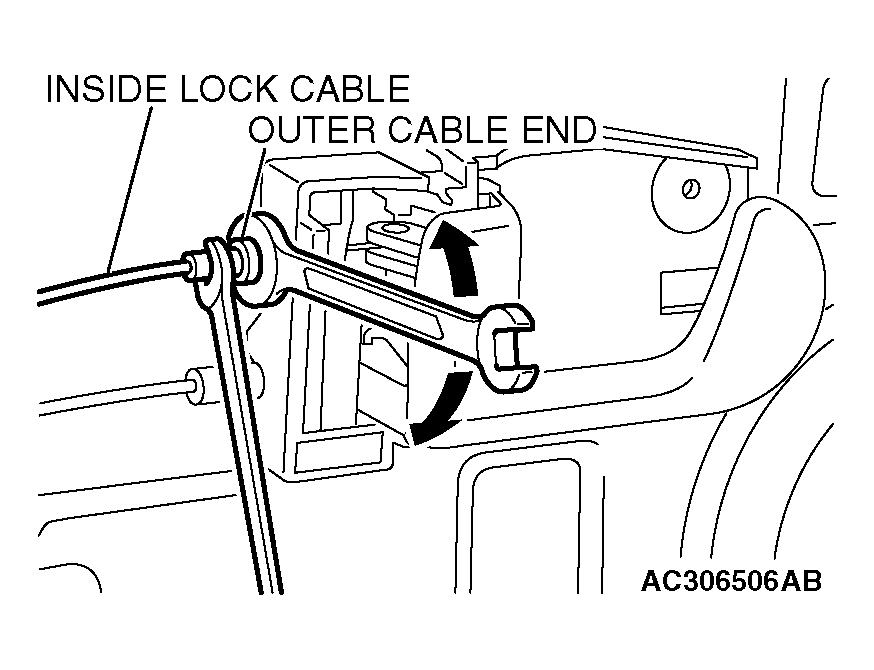

    Fig 2: Adjusting Inside Handle Lock Knob Stroke
    G04255652Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
