Door Inside Handle Knob Play Check
WARNING: This page is about a different variant/trim than selected.

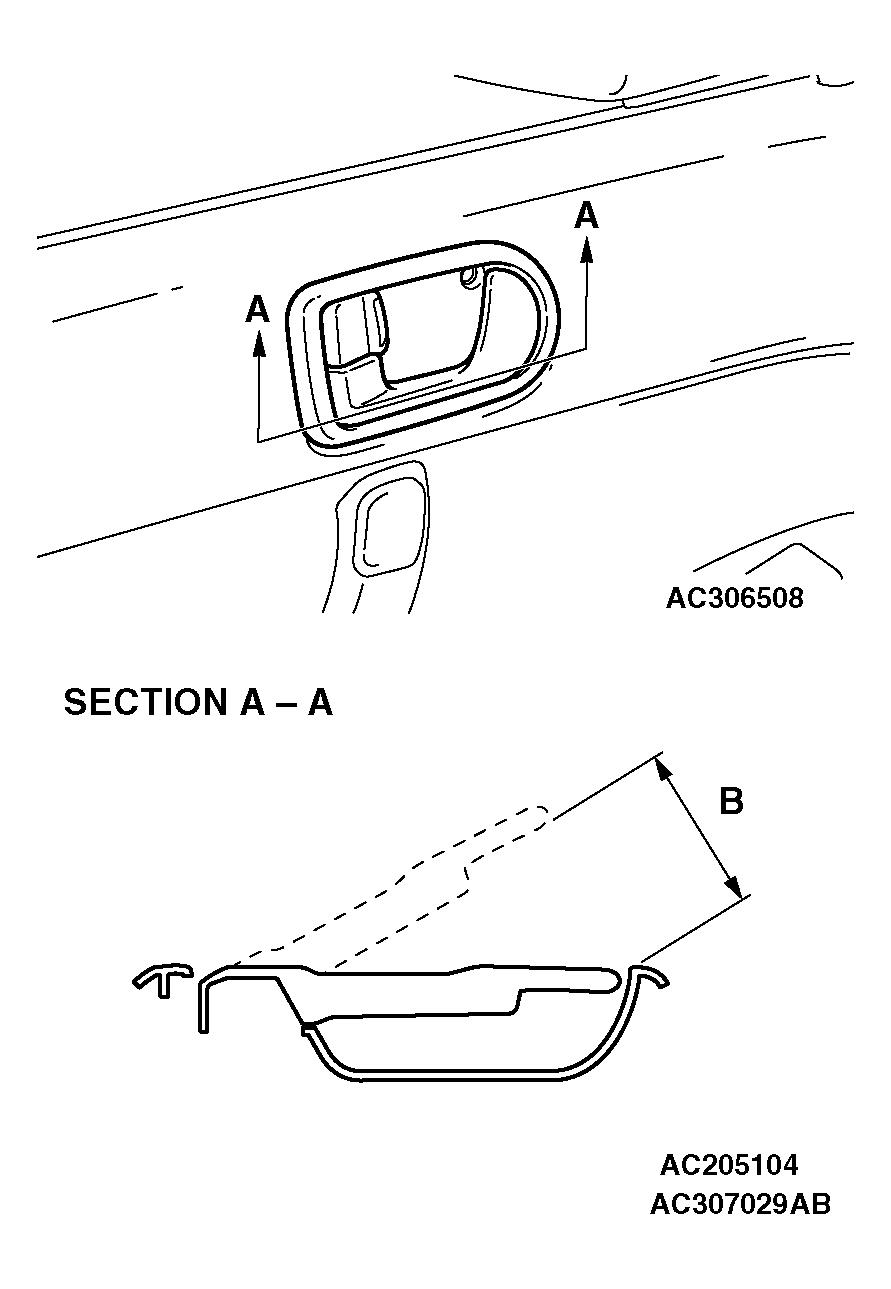

- Check that the door inside handle play is within the standard value range.
Standard value (B):
Front door: 26.1-58.1 mm (1.028-2.287 inches) [Target value 41 mm (1.61inches)]
Rear door: 30.3-58.1 mm (1.193-2.287 inches) [Target value 41 mm (1.61inches)]
- If the door inside handle play is not within the standard value range, check the door inside handle or the inside handle cable. Replace if necessary.
