Door Fit Adjustment

WARNING: This page is about a different variant/trim than selected.

Required Special Tools:

MB990211: Slide Hammer
MB990243: Body Puller
MB990900 or MB991164: Door adjusting Wrench
MB990939: Brass Bar

CAUTION:

Attach protection tape to the fender and door edges where the hinge is installed.
Do not rotate special tool MB991164 with a torque of over 98 N.m (72 ft-lb).

Use special tool MB990900 or MB991164 to loosen the hinge mounting bolts on the body side, and then adjust the clearance around the door so that it is uniform on all sides.
If a door is not flush with its surrounding panels, loosen the door-side door hinge mounting bolts and adjust the door as necessary.

Fig 1: Loosening Hinge Mounting Bolts On Body Side
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: If the door hinge mounting bolt washers are welded, grind off the welding according to the procedure below beforehand.
1. Remove the door hinge. (Refer DOOR ASSEMBLY ).
2. Use a chisel or grinder to release the door hinge mounting bolt washer, which is welded to the door hinge.
3. On completion, paint the affected area with touch-up paint to prevent corrosion.
4. Install the door hinge. (Refer DOOR ASSEMBLY ).

  Fig 2: Identifying Door Hinge Mounting Bolt Washer
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If the door is stiff to lock and unlock:
1. Adjustment by using the striker (vertically or toward the inside of the vehicle)
  Install an temporary bolts instead of the striker mounting bolt, and use special tool MB990939 and a hammer to tap the bolt in the desired direction.

  Fig 3: Adjusting Door (Vertically Or Toward Inside Of Vehicle)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Adjustment by using the striker (toward the outside of the vehicle)

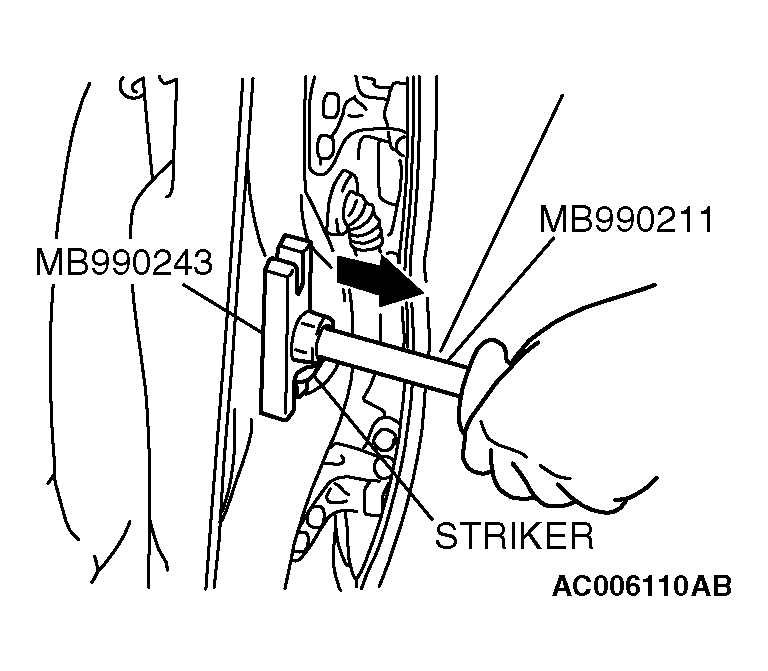

  Use special tools MB990211 and MB990243 to pull the striker toward the outside of the vehicle.

  Fig 4: Adjusting Door (Toward Outside Of Vehicle)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

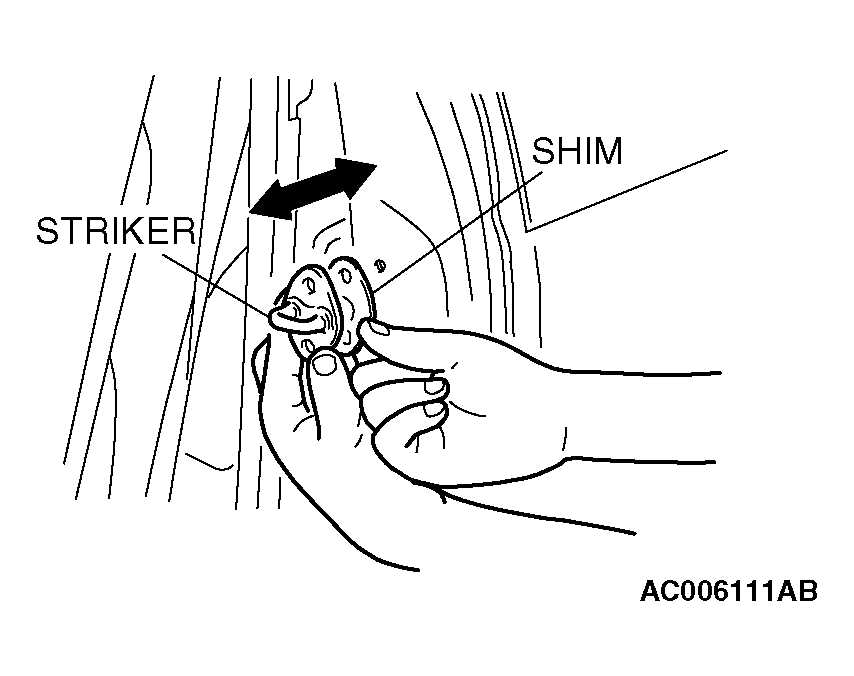

3. Adjustment by using shims (forward and rearward) Increase or decrease the number of shims so that the striker engages with the door latch properly.

  Fig 5: Adjusting Door Using Shim
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
