How To Connect SWS Monitor

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A
MB991813: SWS Monitor Kit
- MB991806: SWS Monitor Cartridge
- MB991812: SWS Monitor Harness (For Column-ECU)
- MB991822: Probe Harness

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958. Connect the main harness A MB991910 before connecting the SWS monitor harness (for column-ECU) MB991812. Be sure to connect SWS monitor cartridge MB991806 after turning on the V.C.I. MB991824.

Ensure that the ignition switch is at the "LOCK" (OFF) position.
Start up the personal computer.
Connect special tool MB991827 to special tool MB991824 and the personal computer.
Connect special tool MB991910 to special tool MB991824.
Connect special tool MB991910 to the data link connector.

Fig 1: Connecting Scan Tool To Data Link Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the steering column cover.
Remove the steering column switch connector.
Connect special tool MB991812 to the column switch connector.

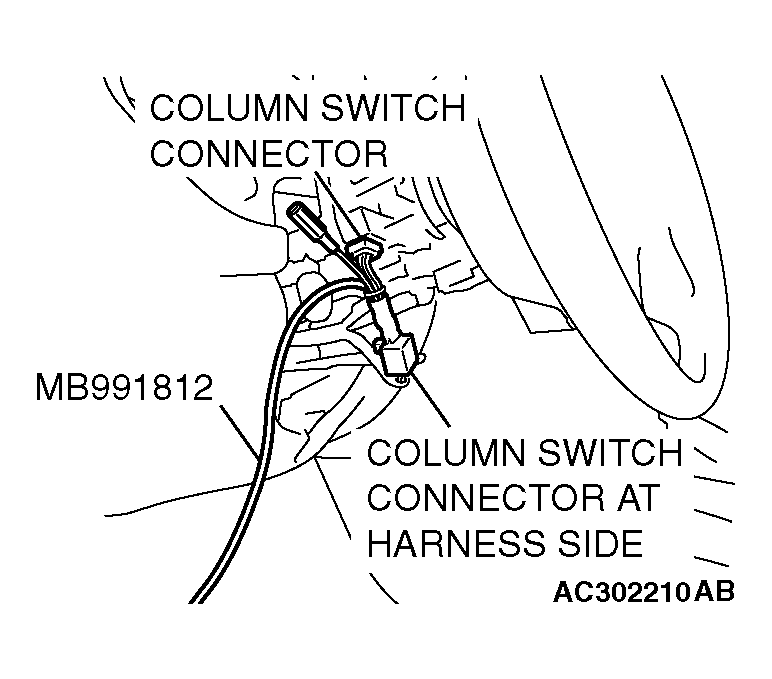

Fig 2: Identifying Column Switch Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Connect special tool MB991812 to special tool MB991806.
Connect special tool MB991806 to special tool MB991824.
Turn the power switch of special tool MB991824 to the "ON" position.
NOTE: When special tool MB991824 is energized, special tool MB991824 indicator light will be illuminated in a green color.
Start the M.U.T.-III system on the personal computer.

Fig 3: Connecting Special Tools
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
