Parking Brake Switch Check

  1. Remove the floor console. (Refer to FLOOR CONSOLE ASSEMBLY ).
  2. Check for continuity between the parking brake switch terminal and the switch mounting bolt.
    PARKING BRAKE SWITCH CONTINUITY

    When parking brake pedal is pulled 2 ohms or less
    When parking brake pedal is released Open circuit

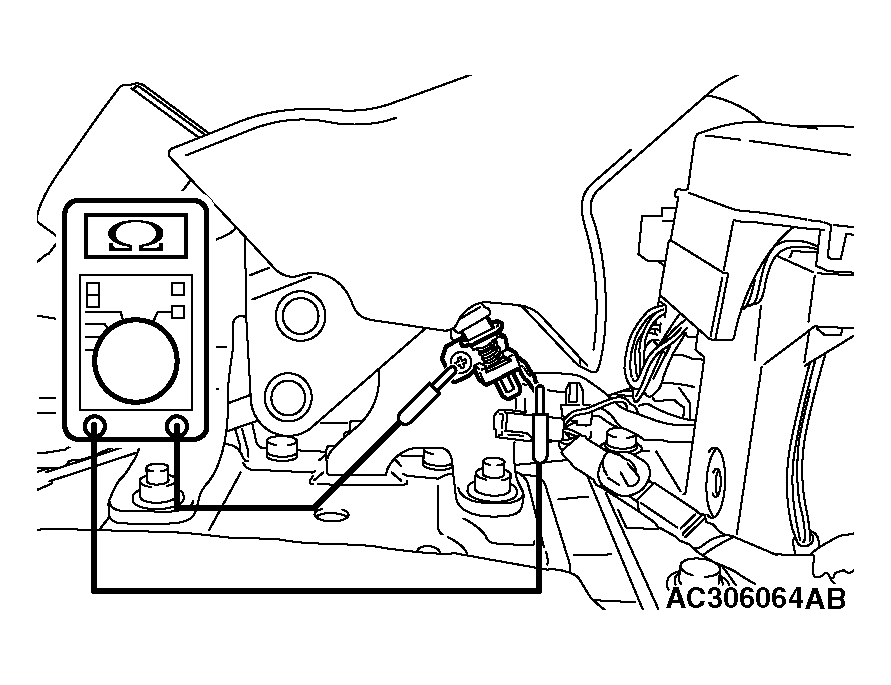

    Fig 1: Checking Parking Brake Switch
    G04255459Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
