Headlight Adjustment

NOTE: When adjusting headlight, disconnect the other headlight harness.
  1. The low beam headlight will project on the screen upper edge of the beam (cut-off).
  2. Turn the adjusting screws to achieve the specified low-beam cut-off location on the aiming screen.

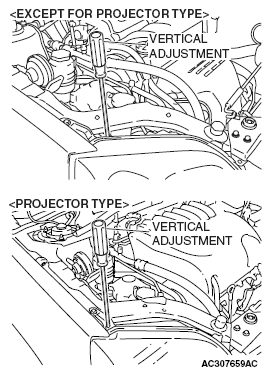

    Fig 1: Adjusting Headlight
    G05105157Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Standard value: (Vertical direction) Horizontal center line ± 50.5 mm (± 2.0 inches) (0.38 degrees angle)

    CAUTION: Do not cover a headlight for more than three minutes to prevent the plastic headlight lens deformation.
    NOTE: There is no horizontal aim adjustment. Horizontal aim is preset and does not require adjustment. High-beam pattern should be correct when the low-beams are adjusted properly.
    Fig 2: Identifying High Intensity Zone And Distance Of Vertical Direction
    G05105158Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
