INSPECTION PROCEDURE 7: No Sound from One Speaker. < Vehicles with audio amplifier >: Notes

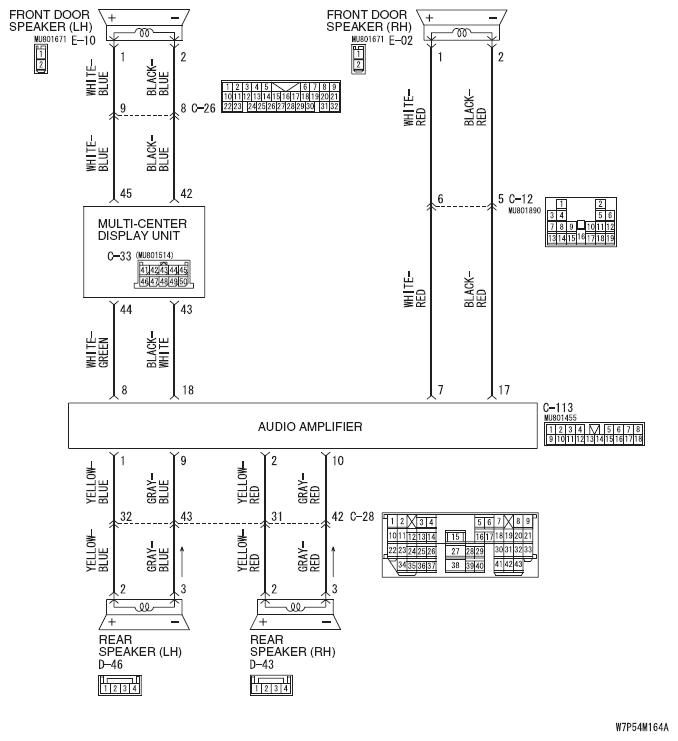

Fig 1: Audio Amplifier & Speaker Circuit Diagram (1 Of 2)

G05105278

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
