INSPECTION PROCEDURE 6: No Sound from One Speaker. < Vehicles without audio amplifier >: Notes

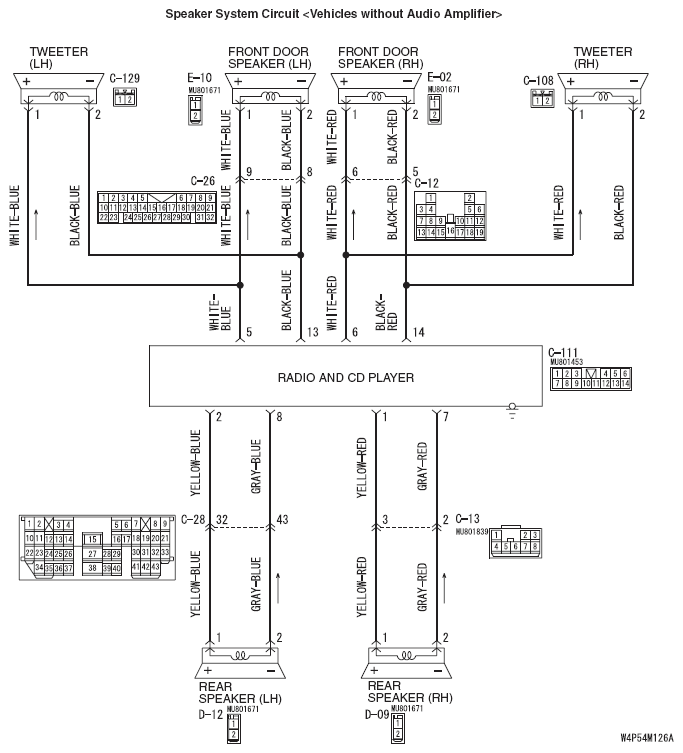

Fig 1: Speaker System Circuit Diagram - Vehicles Without Audio Amplifier (1 Of 2)
G05105246Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
