INSPECTION PROCEDURE 5: No Sound. < Vehicles with Audio Amplifier >: Diagnosis
Required Special Tool:
- MB991223: Harness set
- STEP 1. Measure the voltage at audio amplifier connector C-113 in order to check the battery circuit of power supply system to the audio amplifier.
- Disconnect audio amplifier connector C-113, and measure at the wiring harness side.
- Measure the voltage between terminal 5 and ground.
- The voltage should measure approximately 12 volts (battery positive voltage).
- Measure the voltage between terminal 15 and ground.
- The voltage should measure approximately 12 volts (battery positive voltage).
- Measure the voltage between terminal 16 and ground.
- The voltage should measure approximately 12 volts (battery positive voltage).
Q: Is the measured voltage approximately 12 volts (battery positive voltage)?
YES: Go to Step 4.
NO: Go to Step 2.
- STEP 2. Check audio amplifier connector C-113 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Is audio amplifier connector C-113 in good condition?
YES: Go to Step 3.
NO: Repair or replace the component(s). Refer to HARNESS CONNECTOR INSPECTION . The speakers should sound.
- STEP 3. Check the wiring harness between audio amplifier connector C-113 (terminal 5, 15 and 16) and the battery.
NOTE: Also check intermediate connector C-29 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connectors C-29 is damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .
Q: Is the wiring harness between audio amplifier connector C-113 (terminal 5, 15 and 16) and the battery in good condition?
YES: There is no action to be taken.
NO: Repair the wiring harness. The speakers should sound.
- STEP 4. Measure the resistance at audio amplifier connector C-113 in order to check the ground circuit to the audio amplifier.
- Disconnect audio amplifier connector C-113, and measure at the wiring harness side.
- Measure the resistance between terminal 4 and ground.
- The resistance should be 2 ohms or less.
- Measure the resistance between terminal 11 and ground.
- The resistance should be 2 ohms or less.
- Measure the resistance between terminal 12 and ground.
- The resistance should be 2 ohms or less.
Q: Is the measured resistance 2 ohms or less?
YES: Go to Step 7.
NO: Go to Step 5.
- STEP 5. Check audio amplifier connector C-113 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Is audio amplifier connector C-113 in good condition?
YES: Go to Step 6.
NO: Repair or replace the component(s). Refer to HARNESS CONNECTOR INSPECTION . The speakers should sound.
- STEP 6. Check the wiring harness between audio amplifier connector C-113 (terminal 4, 11 and 12) and ground.
Q: Is the wiring harness between audio amplifier connector C-113 (terminal 4, 11 and 12) and ground in good condition?
YES: There is no action to be taken.
NO: Repair the wiring harness. The speakers should sound.

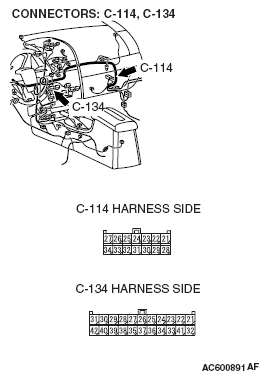

- STEP 7. Check radio, CD player and CD changer connector C-134 and audio amplifier connector C-114 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Are radio, CD player and CD changer connector C-134 and audio amplifier connector C-114 in good condition?
YES: Go to Step 8.
NO: Repair or replace the component(s). Refer to HARNESS CONNECTOR INSPECTION . The door speaker (LH) should sound.
- STEP 8. Check the wiring harness between CD player and CD changer connector C-134 (terminals 21, 22, 23, 25, 26, 32, 34, 35 and 37) and audio amplifier connector C-114 (terminals 24, 34, 27, 22, 21, 31, 32, 25 and 28).
Q: Do the speakers sound normally?
YES: The procedure is complete.
NO: Repair or replace the audio amplifier.
