Immobilizer System: General Description: Operation

With the ignition switch "ON" position, the immobilizer system operates as follows.

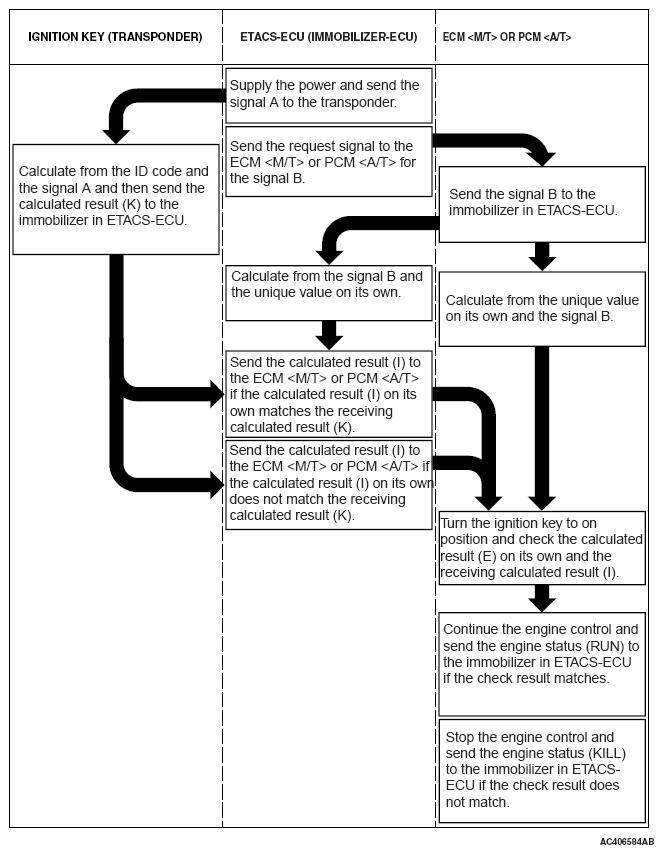

Fig 1: Immobilizer System Operation Diagram
G05106103Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
