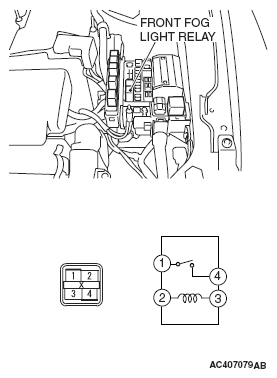

Front Fog Light Relay Check
TERMINALS CONTINUITY REFERENCE CHART
| BATTERY VOLTAGE |
TESTER CONNECTION |
SPECIFIED CONDITION |
| Not supplied |
1-4 |
Open circuit |
- Connect terminal 2 to the positive battery terminal
- Connect terminal 3 to the negative battery terminal
|
1-4 |
Less than 2 ohms |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
