INSPECTION PROCEDURE 2: Power supply circuit, INSPECTION PROCEDURE 3: Odometer and trip meter are not displayed, INSPECTION PROCEDURE 4: All the needle meters do not work, INSPECTION PROCEDURE 5: When the ignition switch is turned to the ON position, the indicator and warning lights do not illuminate: Notes

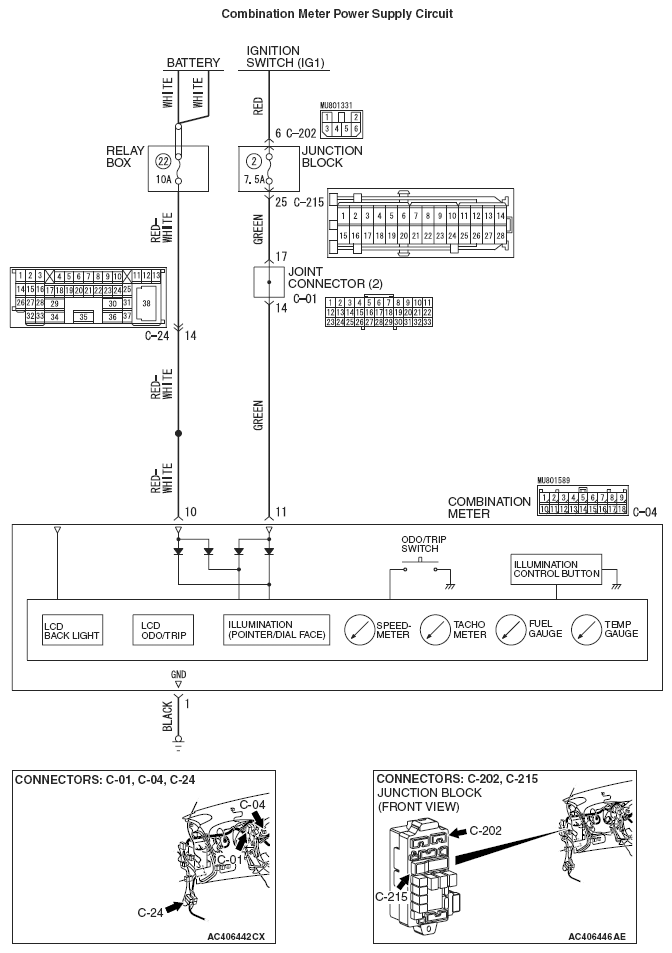

Fig 1: Combination Meter Power Supply Circuit
G05106259Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
