Clip And Claw Positions

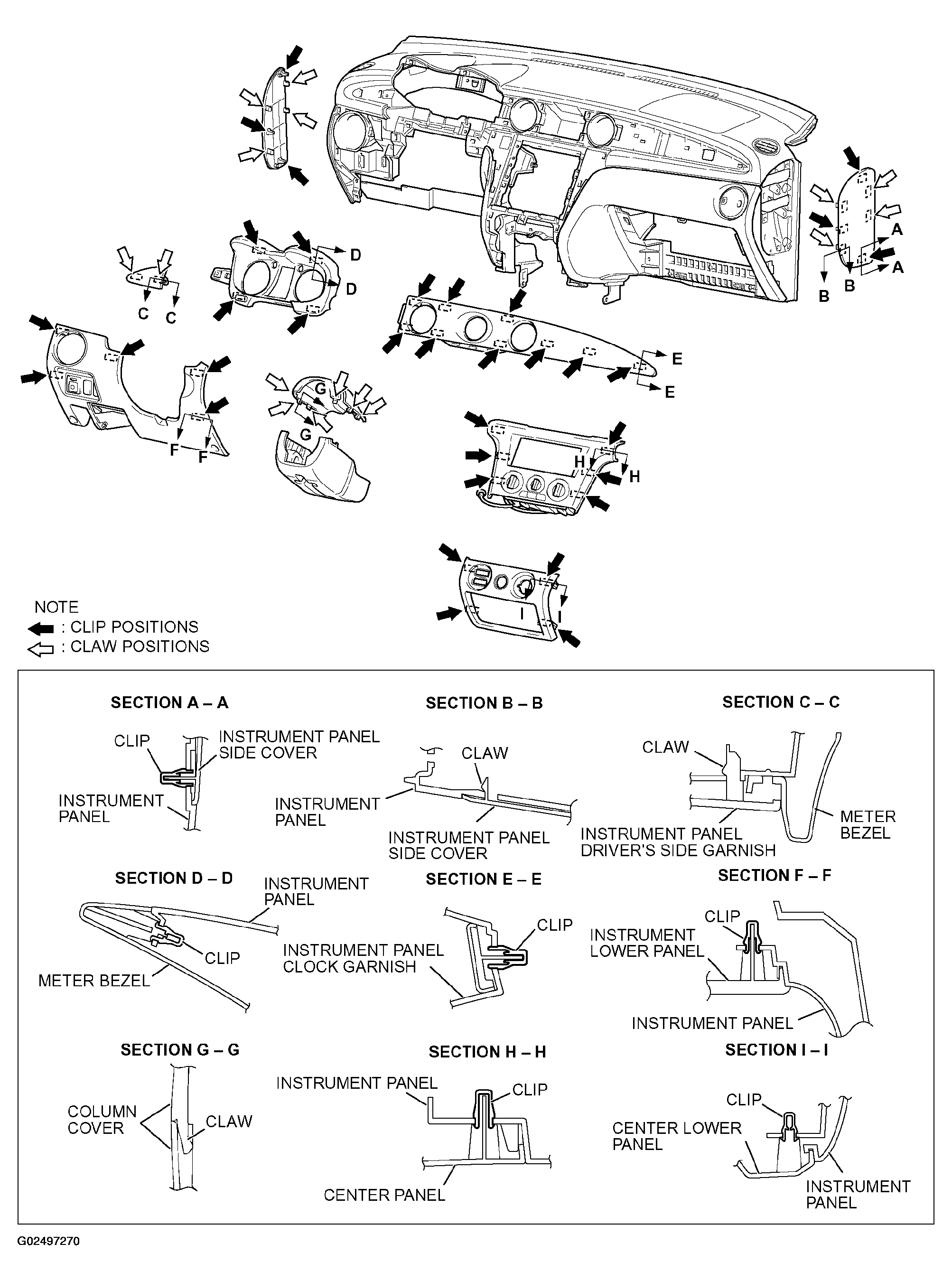

Fig 1: Identifying Clip And Claw Positions
G02497270Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
