Removal And Installation

CAUTION: SRS: Before removing and installing the seat belts with pre-tensioner, refer to SEAT BELT WITH PRE-TENSIONER .

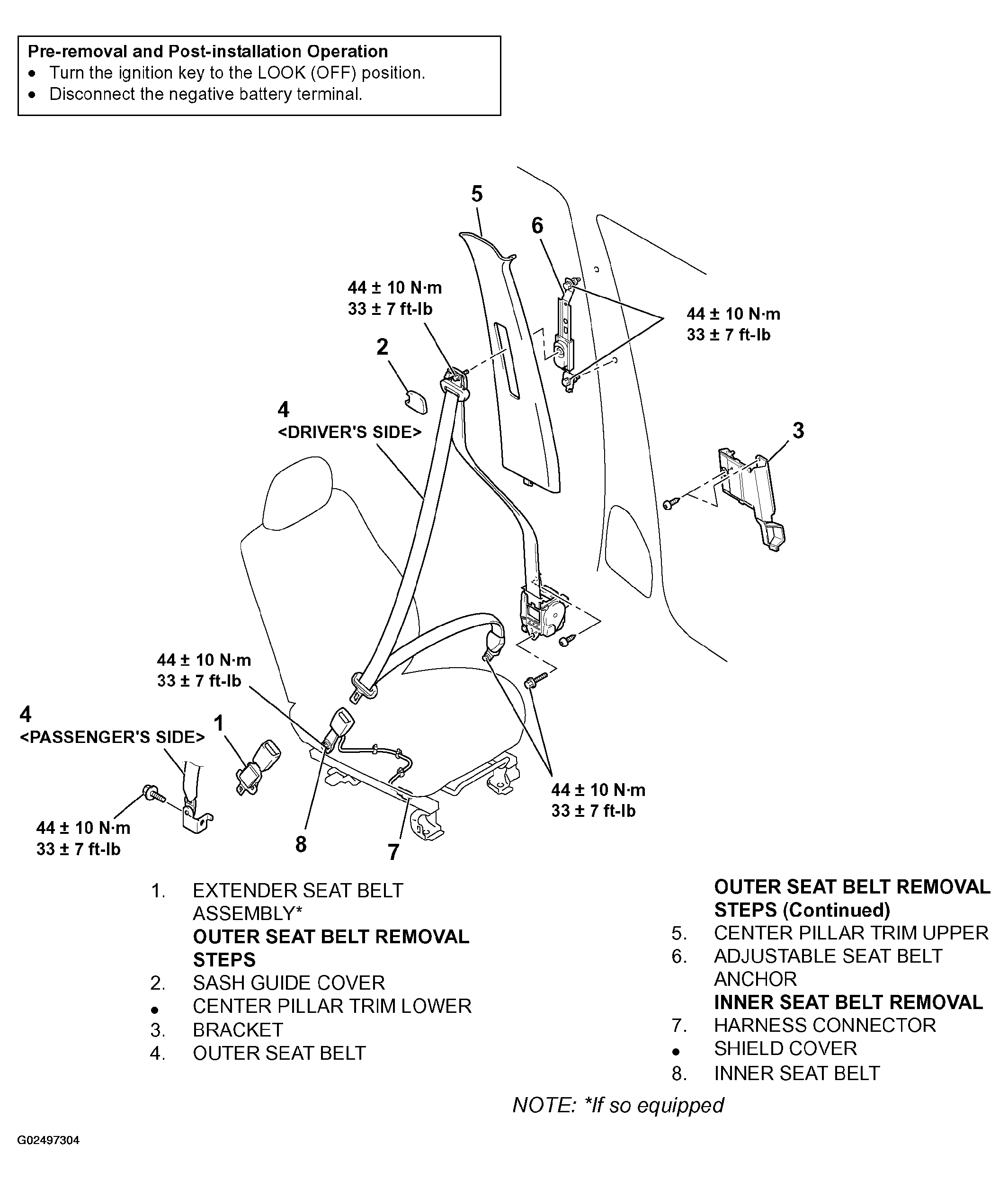

Fig 1: Removing/Installing Front Seat Belt
G02497304Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: *If so equipped
