< Combination Meter >

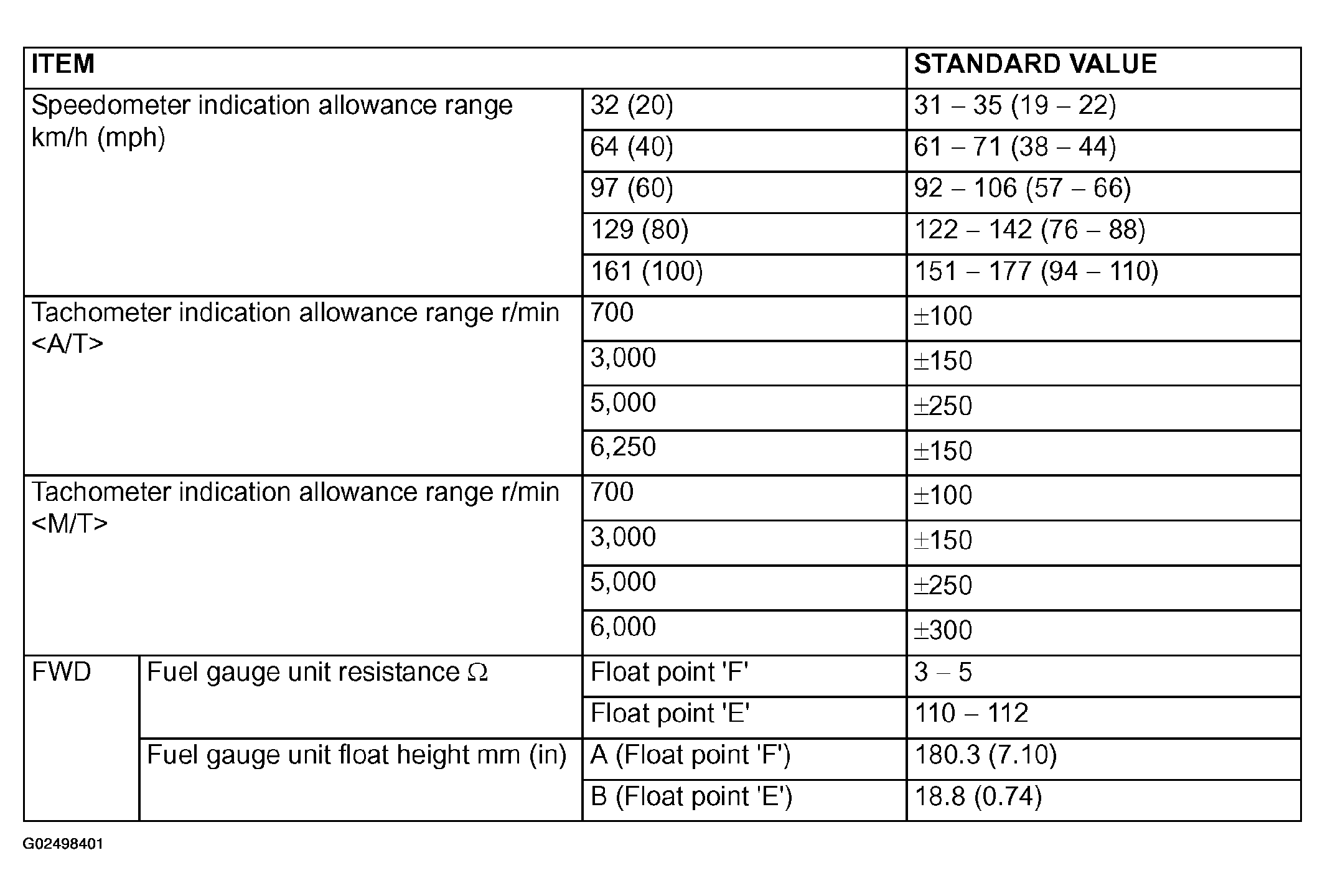

Fig 1: Combination Meter Service Specifications (1 Of 2)
G02498401Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

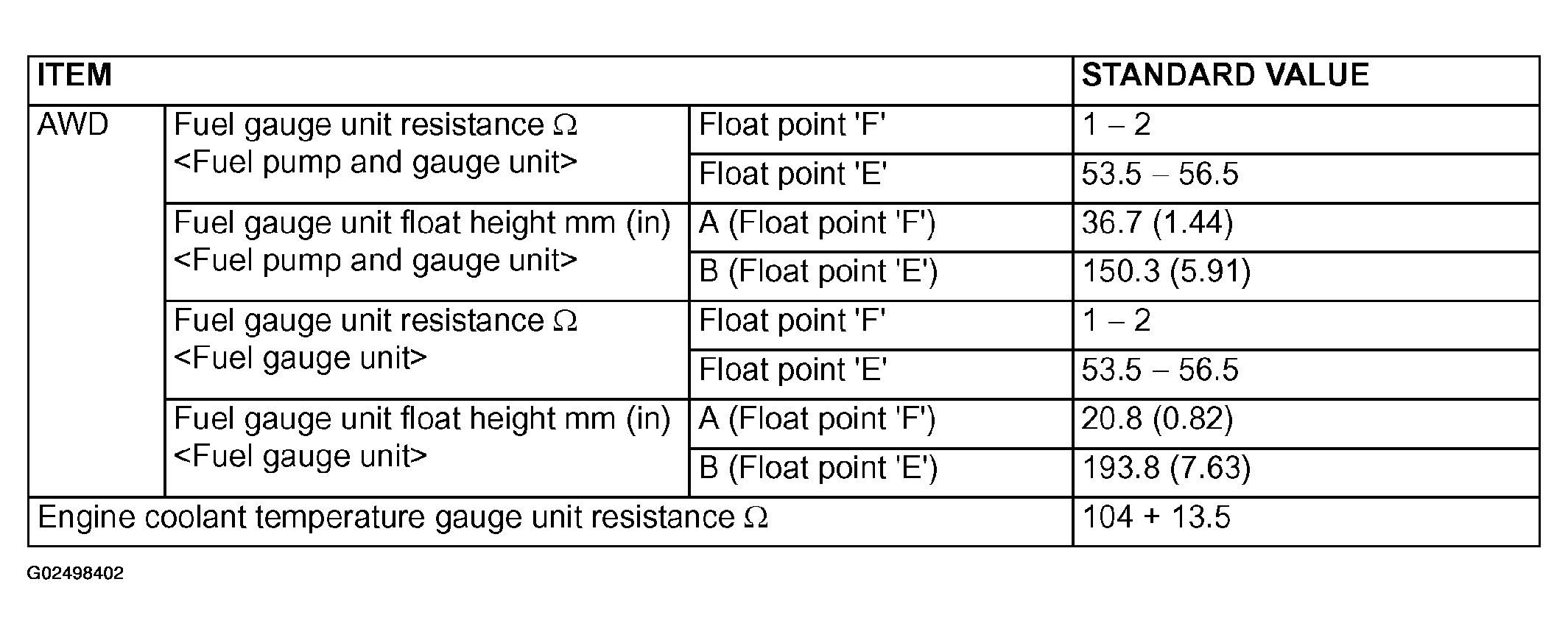

Fig 2: Combination Meter Service Specifications (2 Of 2)
G02498402Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
