Rheostat Resistance Check

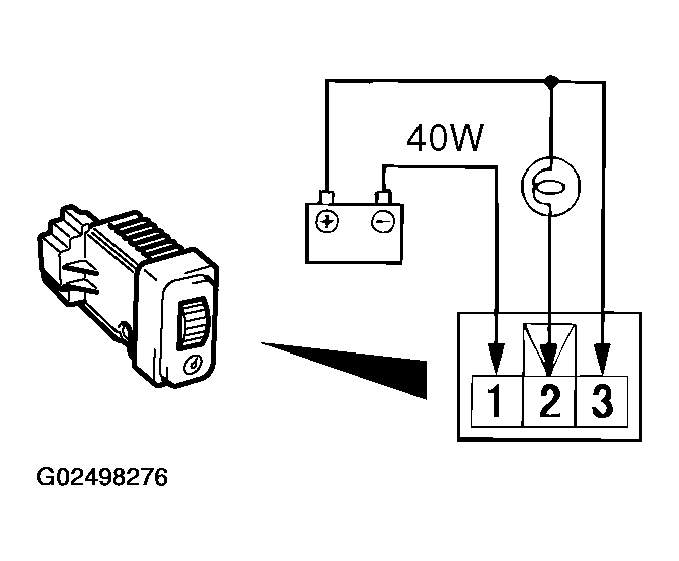

  1. Connect the battery and the test bulb (40 W) as shown in the illumination.
  2. Operate the rheostat, and if brightness changes smoothly without switching off, rheostat function is normal.
    Fig 1: Checking Rheostat Resistance
    G02498276Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
