INSPECTION PROCEDURE 4: No Sound from One Speaker. < vehicles with amplifier >: Notes

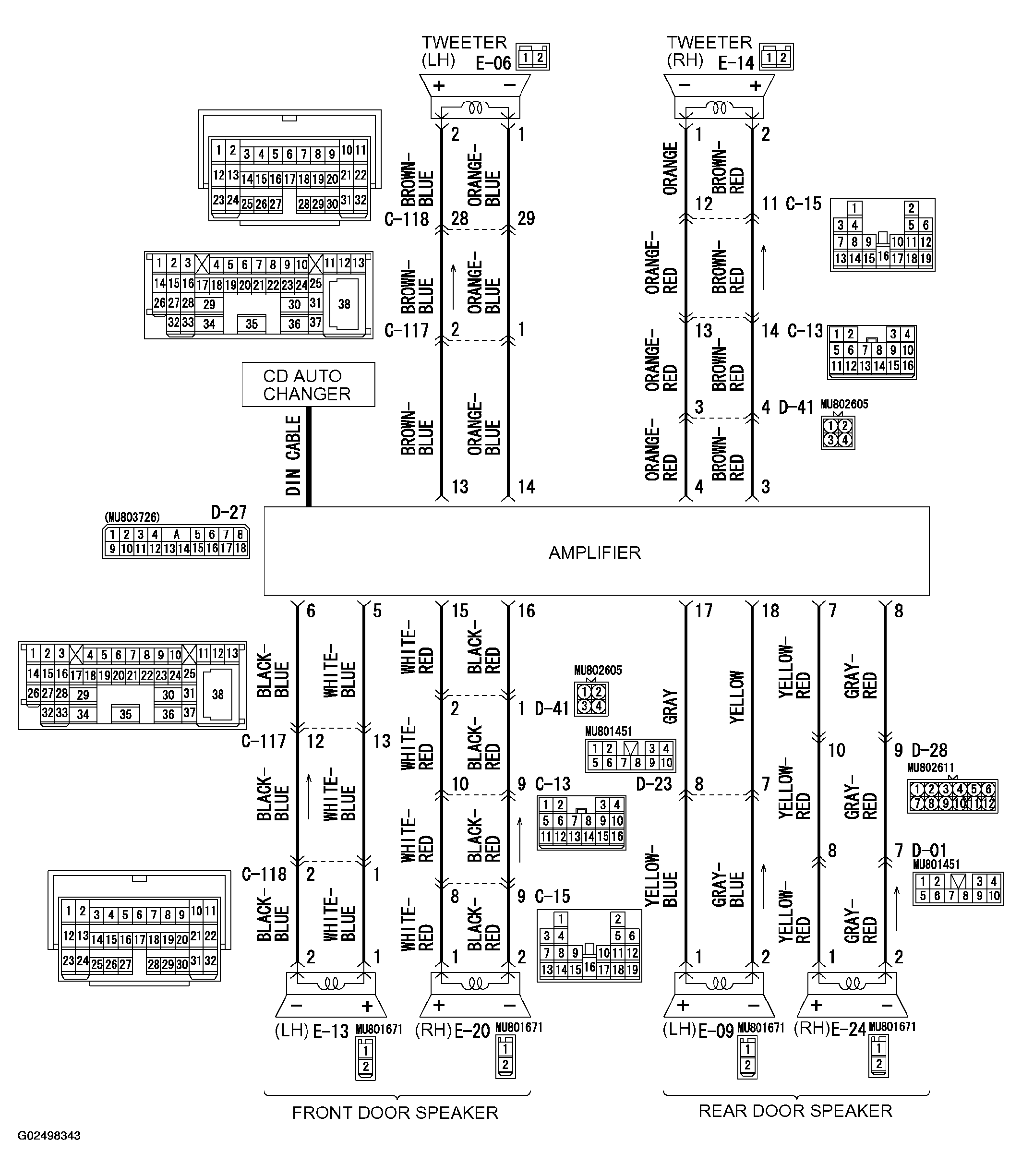

Fig 1: Speaker System Circuit Diagram With Amplifier (1 Of 2)
G02498343Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

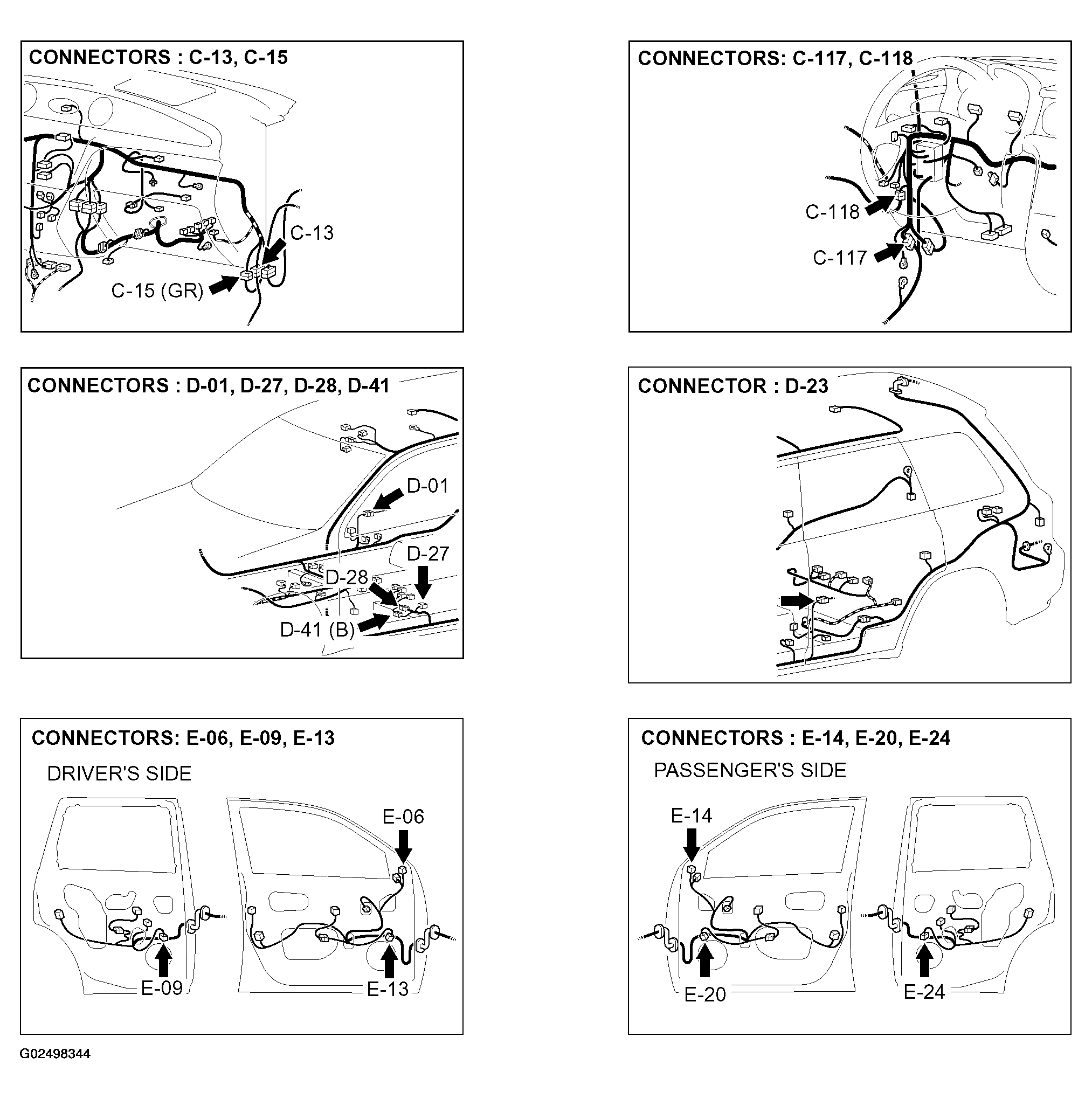

Fig 2: Speaker System Circuit Diagram With Amplifier (2 Of 2)
G02498344Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
