INSPECTION PROCEDURE 3: No Sound from One Speaker. < Vehicles without amplifier >: Notes

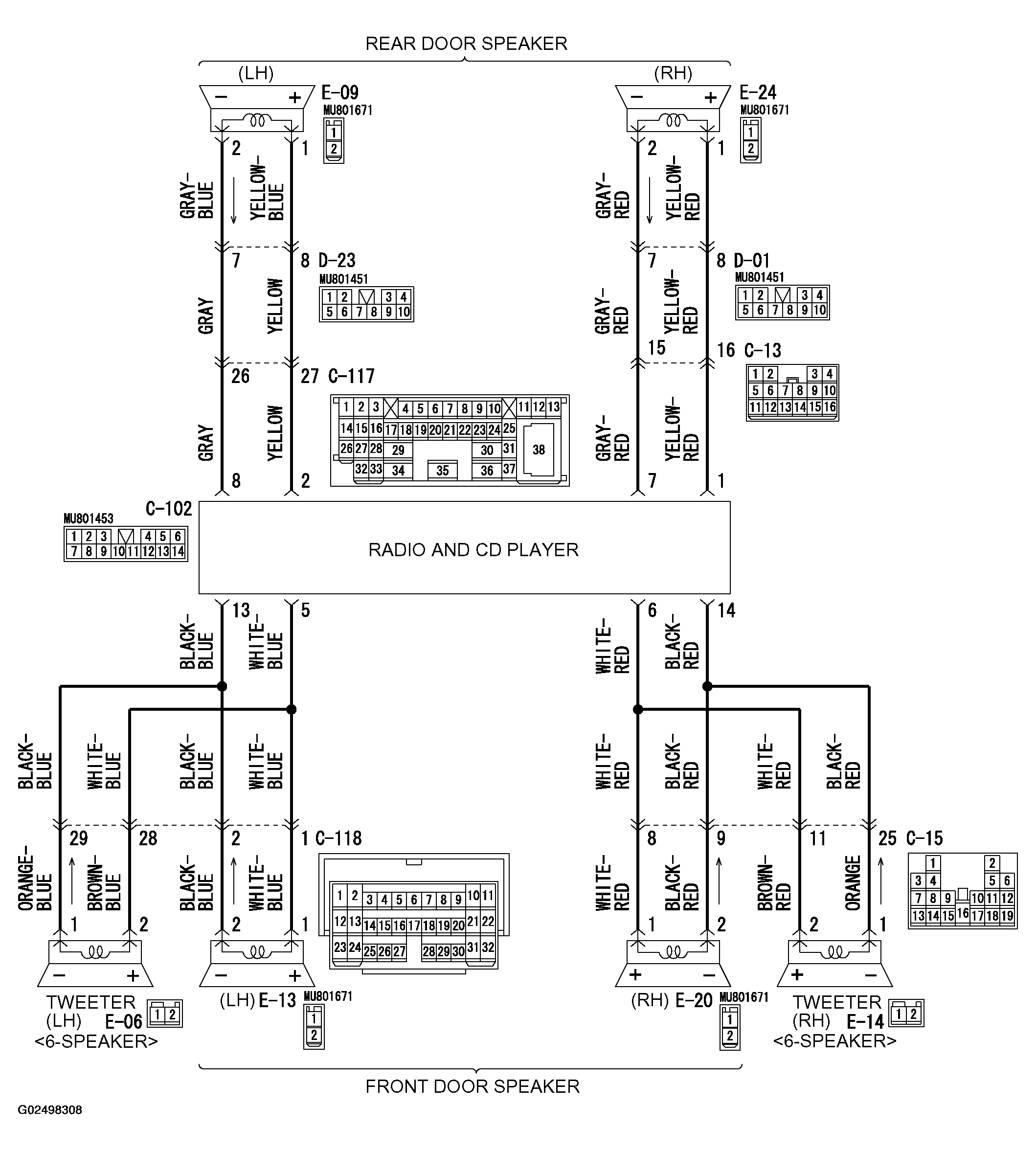

Fig 1: Speaker System Circuit Diagram Without Amplifier (1 Of 2)
G02498308Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

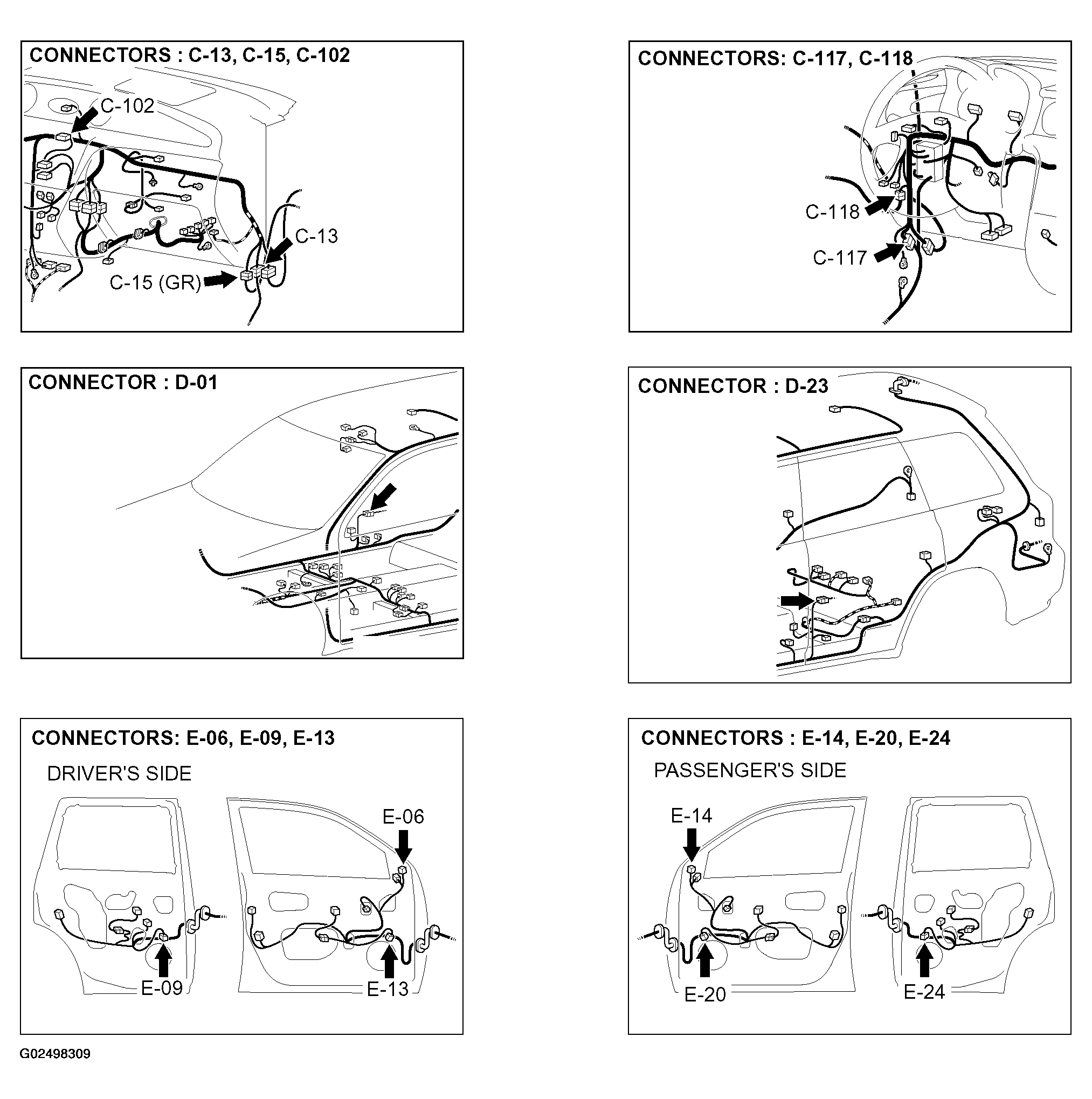

Fig 2: Speaker System Circuit Diagram Without Amplifier (2 Of 2)
G02498309Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
