INSPECTION PROCEDURE 4: The Immobilizer Indicator Light does not Illuminate.: Notes

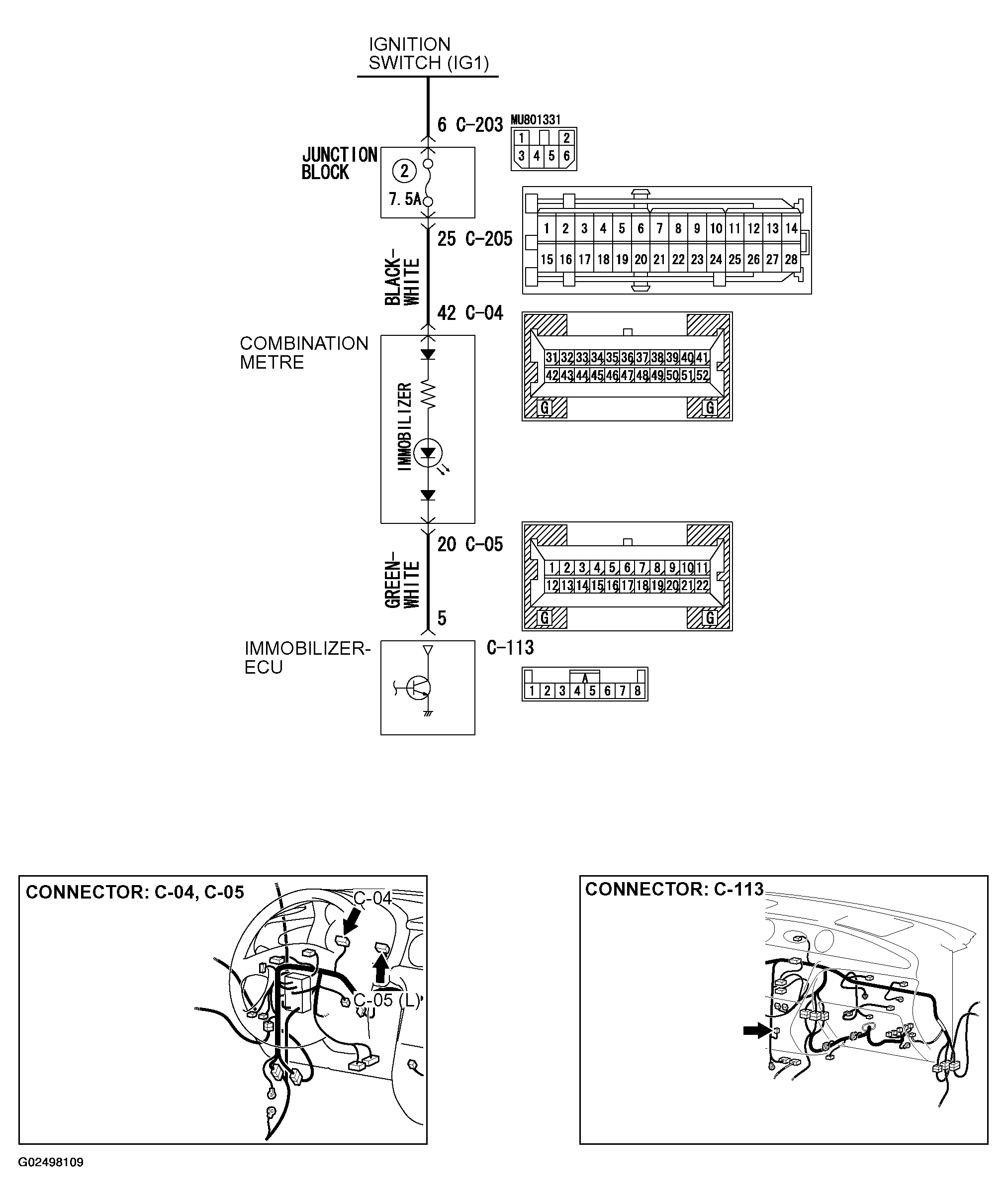

Fig 1: The Security Indicator Circuit Diagram (1 Of 2)
G02498109Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

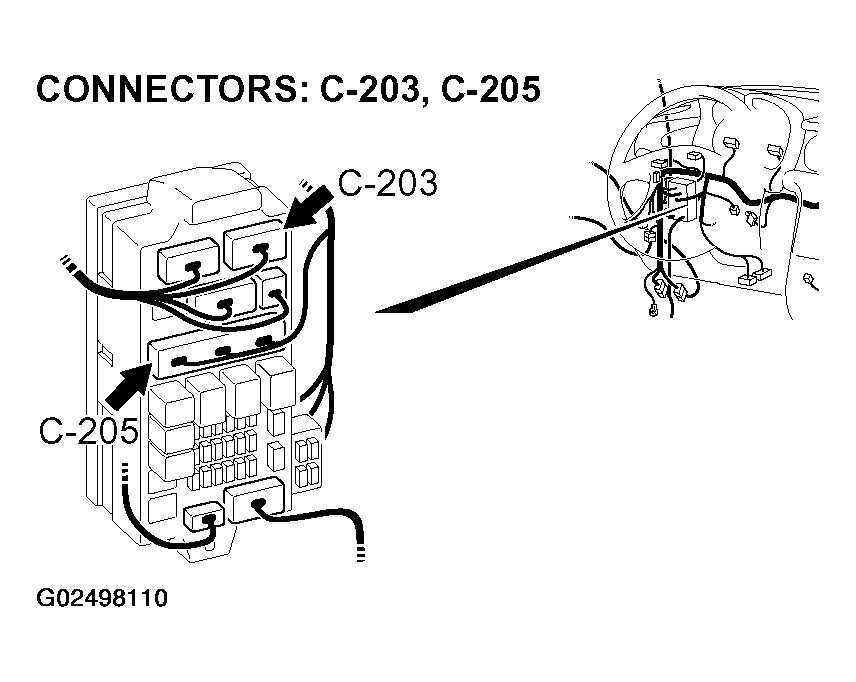

Fig 2: The Security Indicator Circuit Diagram (2 Of 2)
G02498110Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
