Diagnosis Procedure

Required Special Tools:

• MB991223: Harness Set

1. STEP 1. Check immobilizer-ECU connector C-113 for loose, corroded or damaged terminals, or terminals pushed back in the connector

   Q: Is immobilizer-ECU connector C-113 in good condition?

   1. YES  : Go to Step 2.
   2. NO  : Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION . Confirm that scan tool MB991958 communicates normally.

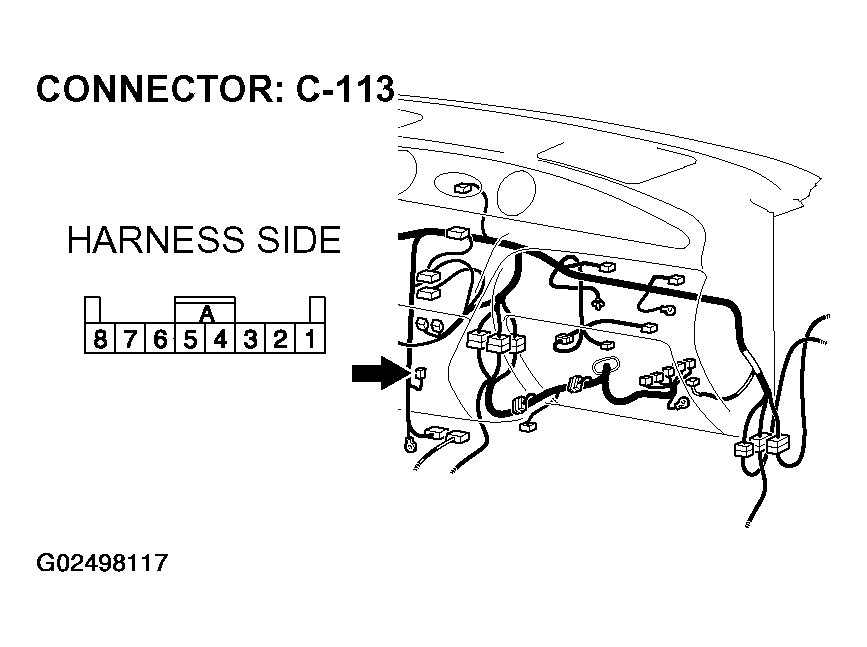

   Fig 1: Identifying Immobilizer-ECU Connector C-113

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. STEP 2. Check the immobilizer indicator light circuit of immobilizer-ECU connector C-113.
   1. Disconnect the immobilizer-ECU C-113 and measure at the harness side.
   2. Turn the ignition switch to the "ON" position.
   3. Connect terminal 5 to the ground.
      Fig 2: Disconnecting Immobilizer-ECU C-113

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   Q: Does only the immobilizer indicator light illuminate? (other indicator lights are in good condition)

   1. YES  : Replace the immobilizer-ECU. Then register the password (secret code) and encrypted code HOW TO REGISTER ENCRYPTED CODE .
   2. NO  : Go to Step 3.

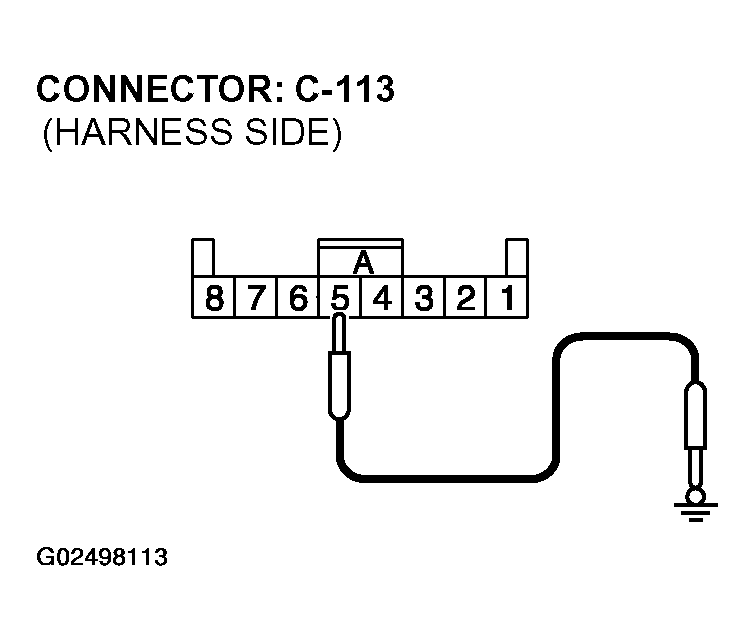

   Fig 3: Connecting Terminal 5 To Ground

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. STEP 3. Check immobilizer-ECU connector C-113 and combination meter connector C-05 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

   Q: Are immobilizer-ECU connector C-113 and combination meter connector C-05 in good condition?

   1. YES  : Go to Step 4.
   2. NO  : Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION . Confirm that scan tool MB991958 communicates normally.

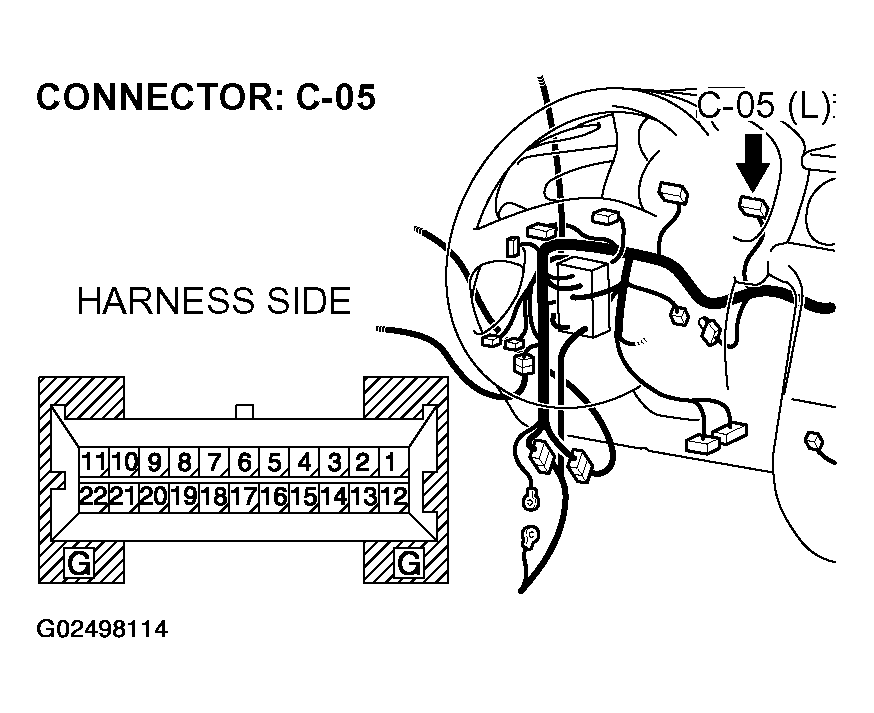

   Fig 4: Identifying Combination Meter Connector C-05

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   Fig 5: Identifying Immobilizer-ECU Connector C-113

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. STEP 4. Check the wiring harness between combination meter connector C-05 (terminal 20) and immobilizer-ECU connector C-113 (terminal 5).

   Q: Is the wiring harness between combination meter connector C-05 (terminal 20) and immobilizer-ECU connector C-113 (terminal 5) in good condition?

   1. YES  : Go to Step 5.
   2. NO  : Repair the wiring harness. Check to see that all meters operate.

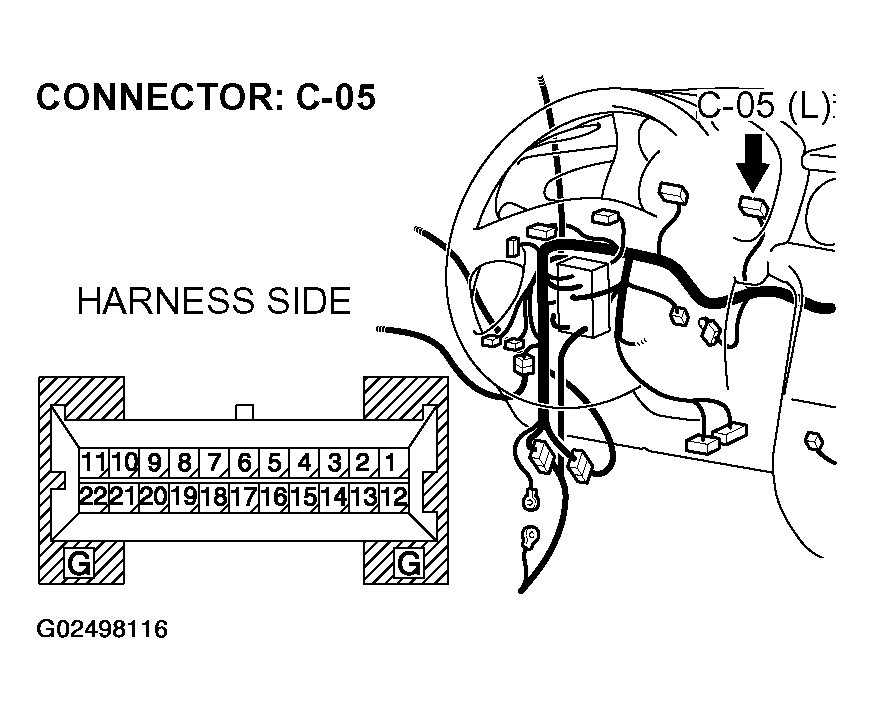

   Fig 6: Identifying Combination Meter Connector C-05

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   Fig 7: Identifying Immobilizer-ECU Connector C-113

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. STEP 5. Measure the voltage at combination meter connector C-04 in order to check the battery circuit of power supply system to the combination meter.
   1. Turn the ignition switch to the "OFF" (LOCK) position.
   2. Disconnect combination meter connector C-04, and measure at the wiring harness side.
      Fig 8: Disconnecting Combination Meter Connector C-04

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   3. Measure the voltage between terminal 42 and ground.
      • The measured value should be approximately 12 volts (battery positive voltage).

   Q: Does the measured voltage correspond with this range?

   1. YES  : Go to  Step 8.
   2. NO  : Go to Step 6.

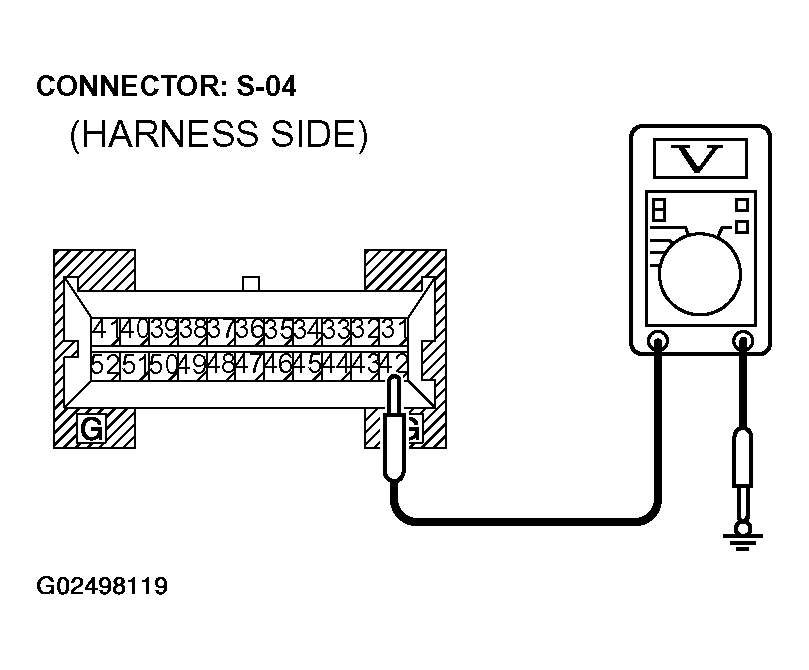

   Fig 9: Measuring Voltage Between Terminal 42 And Ground

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. STEP 6. Check combination meter connector C-04 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

   Q: Is combination meter connector C-04 in good condition?

   1. YES  : Go to Step 7.
   2. NO  : Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION . Check to see that all meters operate.

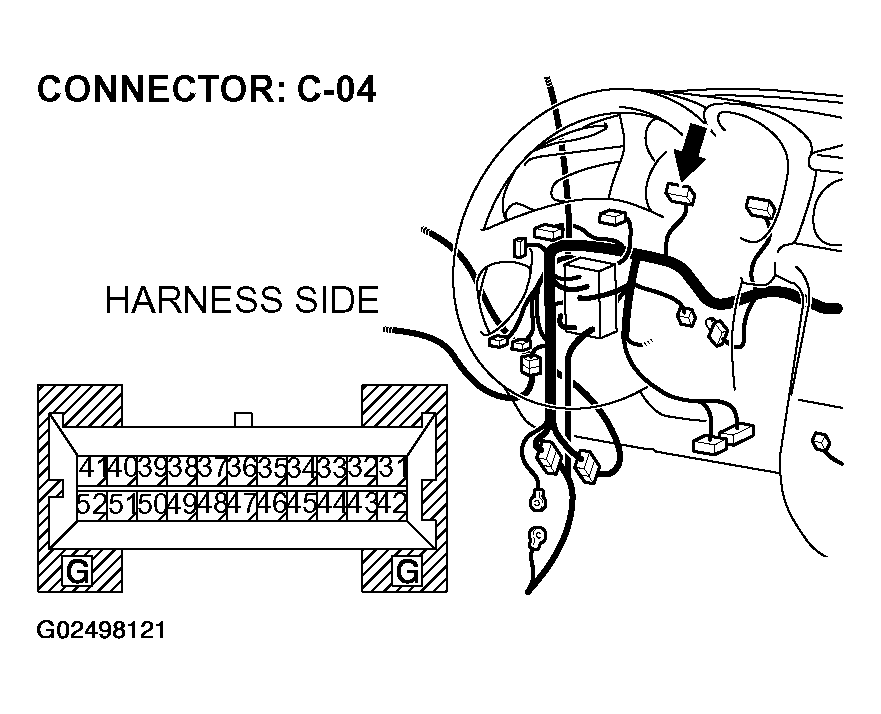

   Fig 10: Identifying Combination Meter Connector C-04

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
7. STEP 7. Check the wiring harness between combination meter connector C-04 (terminal 42) and the battery.
   Fig 11: Identifying Combination Meter Connector C-04

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   NOTE: Also check junction block connector C-205, C-203 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If junction block connector C-205, C-203 is damaged, repair or replace it. Refer to HARNESS CONNECTOR INSPECTION .

   Q: Is the wiring harness between combination meter connector C-04 (terminal 42) and the battery in good condition?

   1. YES  : Go to Step 8.
   2. NO  : Repair the wiring harness. Check to see that all meters operate.

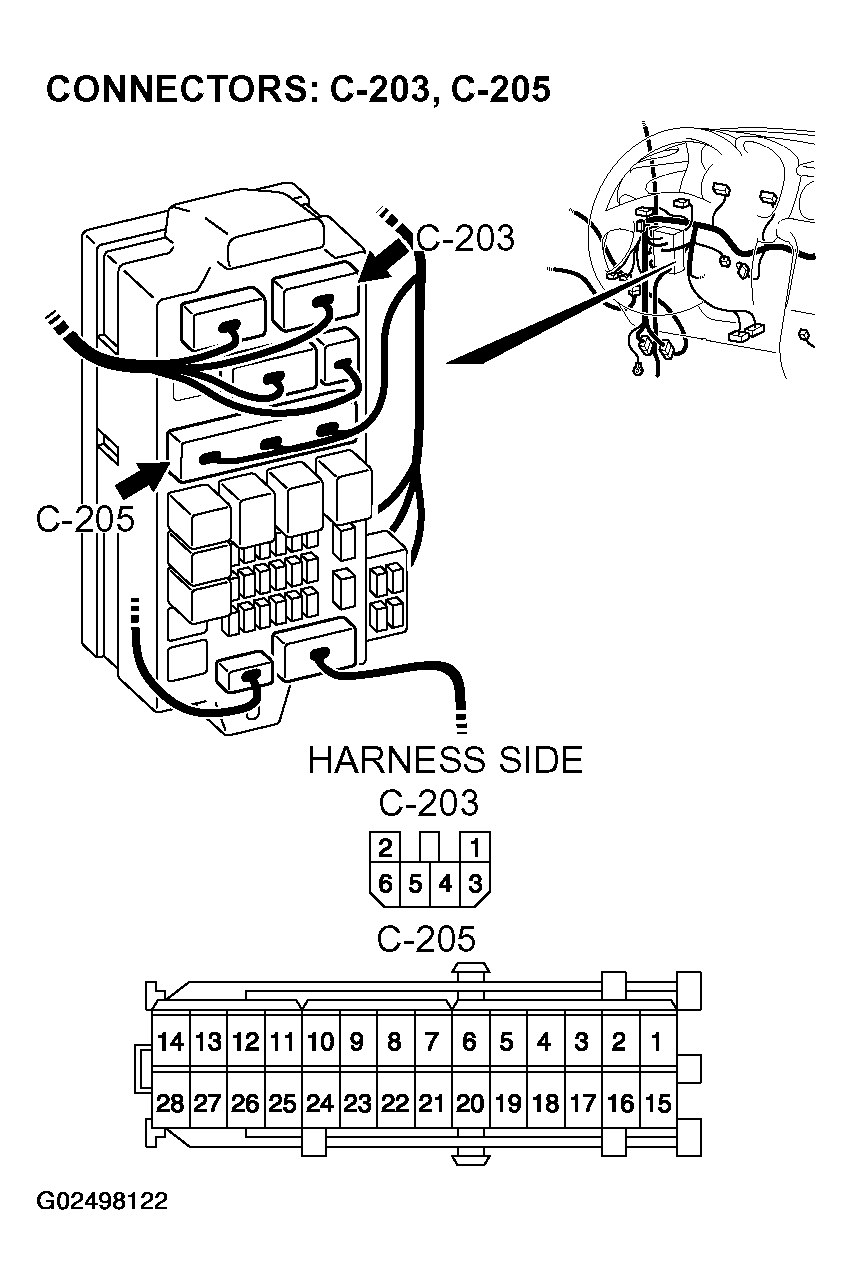

   Fig 12: Identifying Connector Terminals C-203 And C-205

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
8. STEP 8. Retest the system.

   Q: Is the malfunction eliminated?

   1. YES  : The procedure is complete. (If no malfunctions are found in all steps, an intermittent malfunction is suspected. Refer to HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINT ).
   2. NO  : Go to  Step 1.
