INSPECTION PROCEDURE 1: Communication with Scan Tool MB991958 is not possible.: Notes

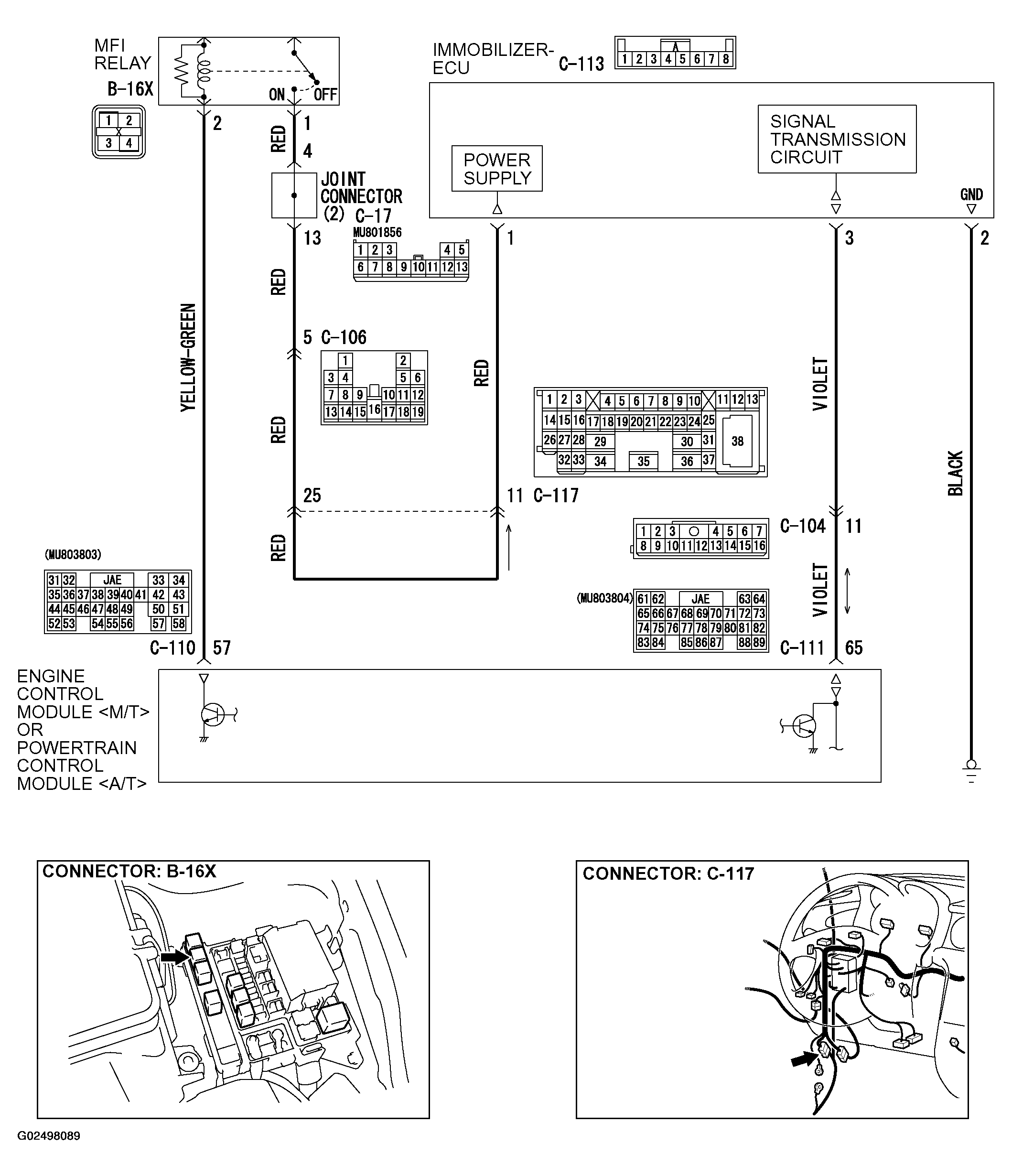

Fig 1: Immobilizer-ECU Power Supply, Ground And Powertrain Control Module Communication Line Circuit Diagram (1 Of 2)
G02498089Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

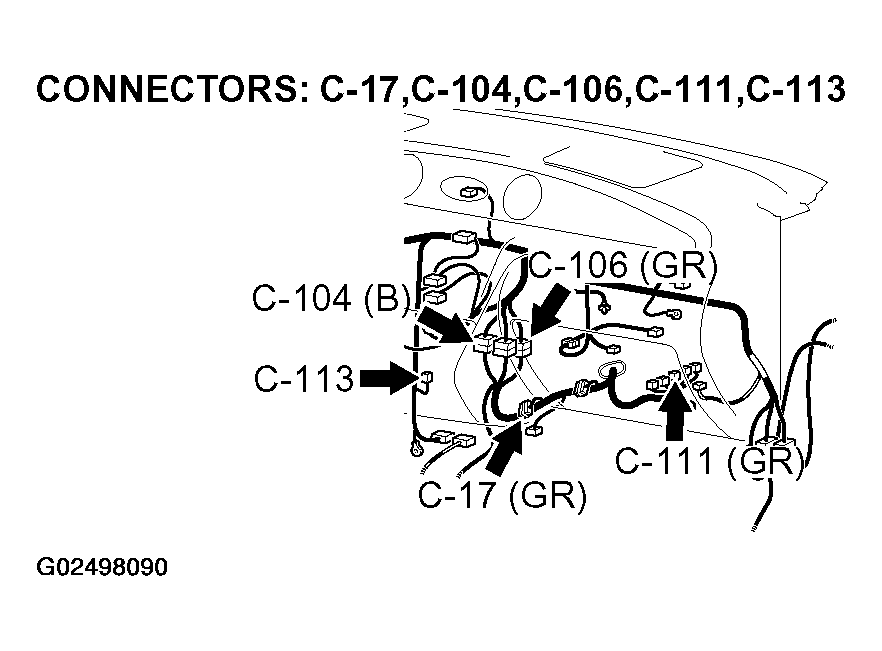

Fig 2: Immobilizer-ECU Power Supply, Ground And Powertrain Control Module Communication Line Circuit Diagram (2 Of 2)
G02498090Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
