Horn Relay Continuity Check

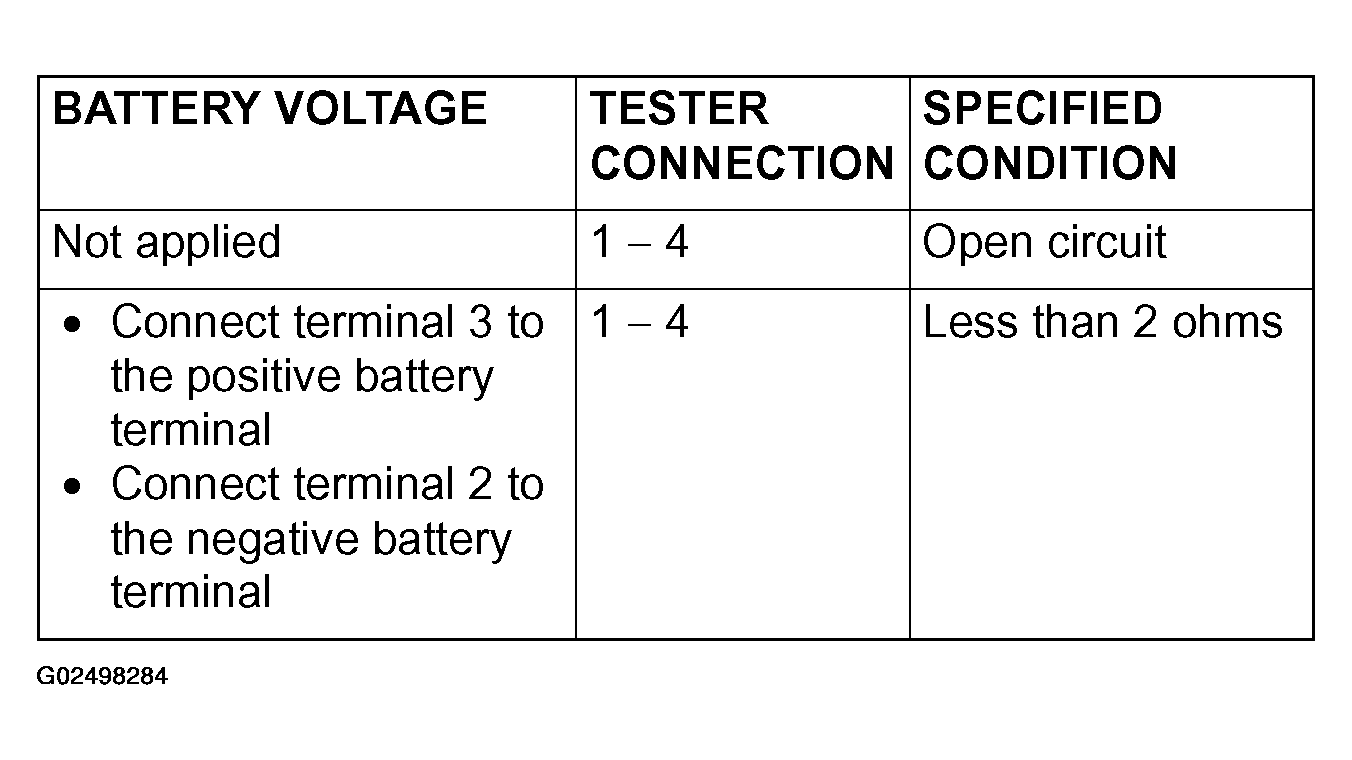

Fig 1: Tester Connection And Condition Reference
G02498284Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

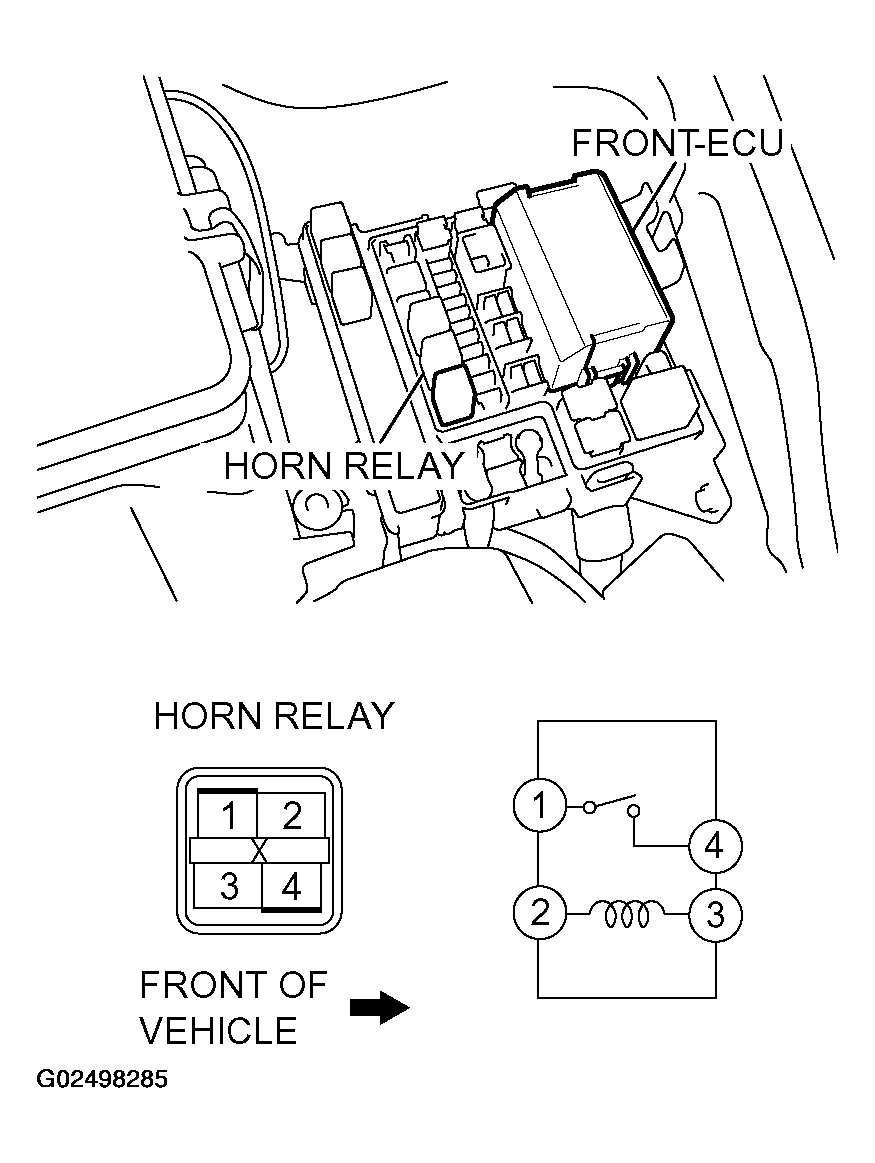

Fig 2: Checking Horn Relay Continuity
G02498285Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
