Headlight Bulb (Low beam)

  1. Disconnect the connector.

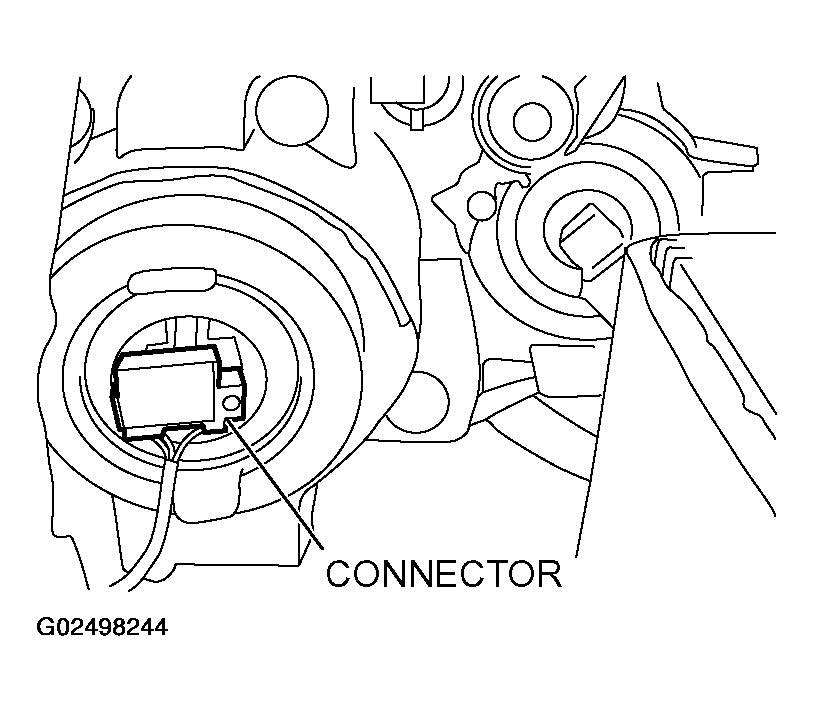

    Fig 1: Disconnecting Connector
    G02498244Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Remove the socket cover.
    CAUTION: Do not touch the surface of the bulb with hands or dirty gloves as the bulb may pop after a short time. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.

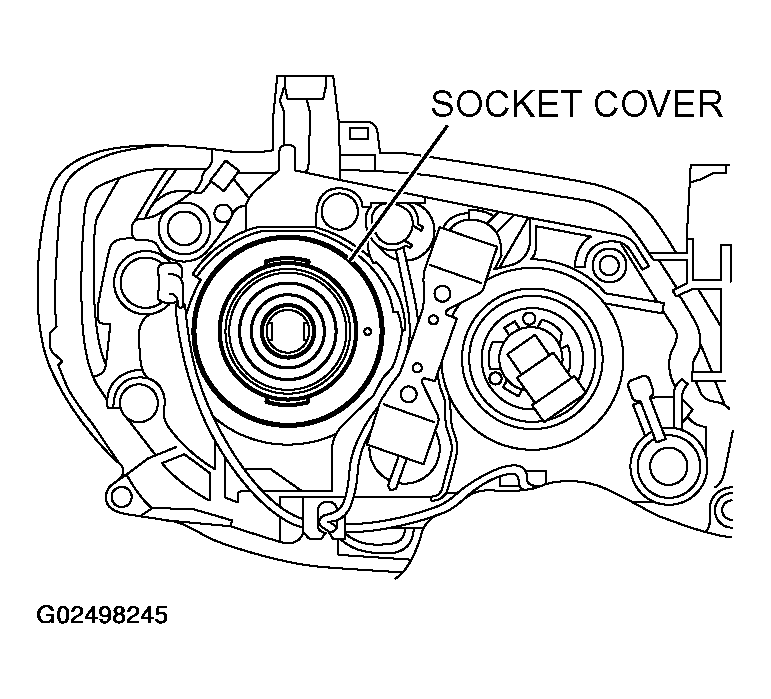

    Fig 2: Removing Socket Cover
    G02498245Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Release the bulb securing spring, and remove the bulb.
  4. Replace the bulb, and connect the connector securely.

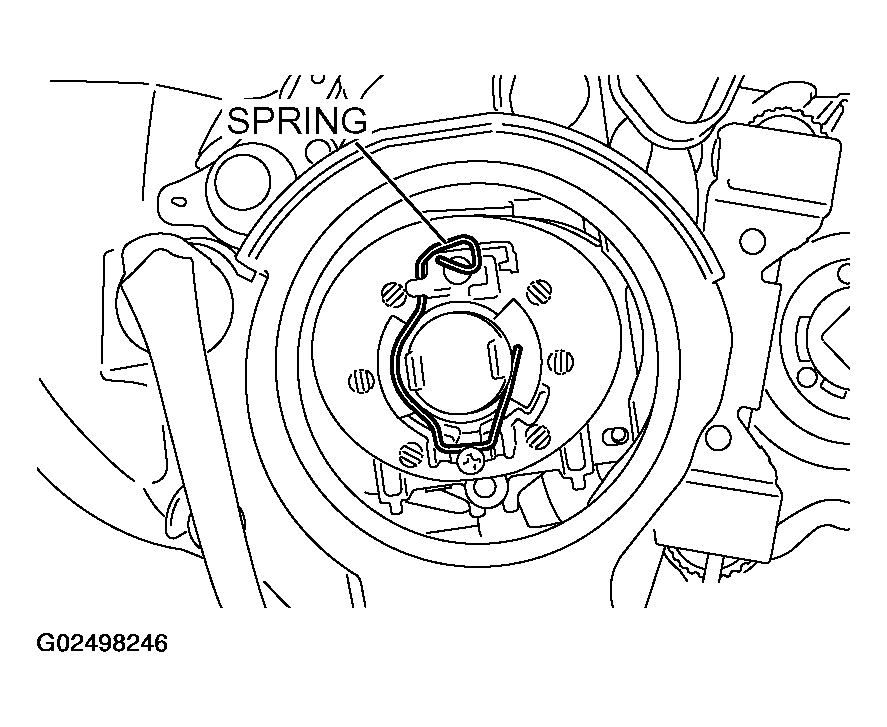

    Fig 3: Releasing Bulb Securing Spring
    G02498246Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
