Fog Light Adjustment

Check if the beam shining onto the screen is at the standard value.

Standard value:
Fog lamp cut off line (Vertical direction): Within 45 mm (0.86°) to 75 mm (1.44°) below the vertical centre line ahead of fog lamp.

NOTE: The horizontal direction is non-adjustable. If deviation of the light beam axis exceeds the standard value, check that the mounting location or some other points are faulty.

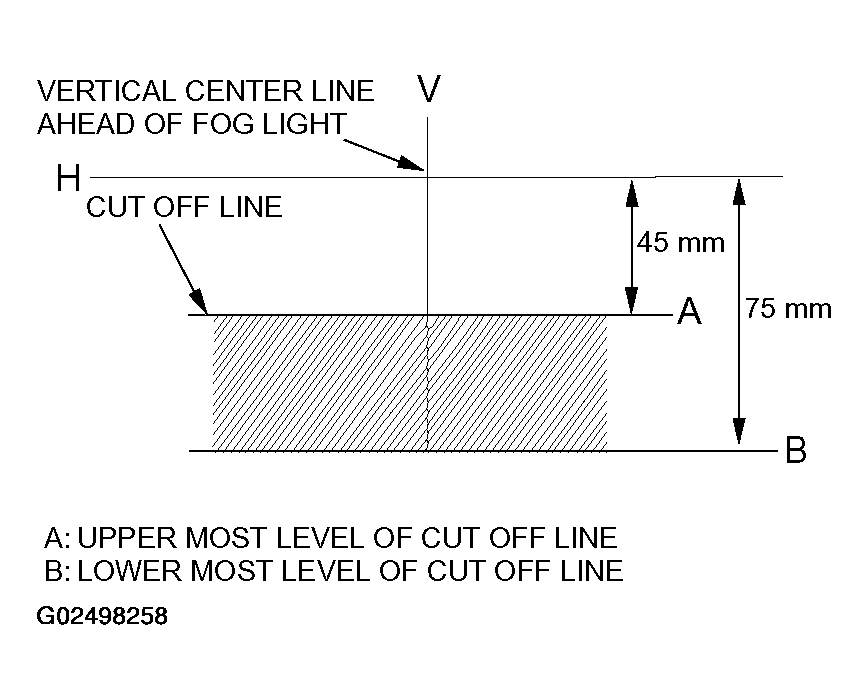

Fig 1: Identifying Beam Shining Screen

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Locating Vertical Adjustment Screw

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
