Fog Light Relay Check

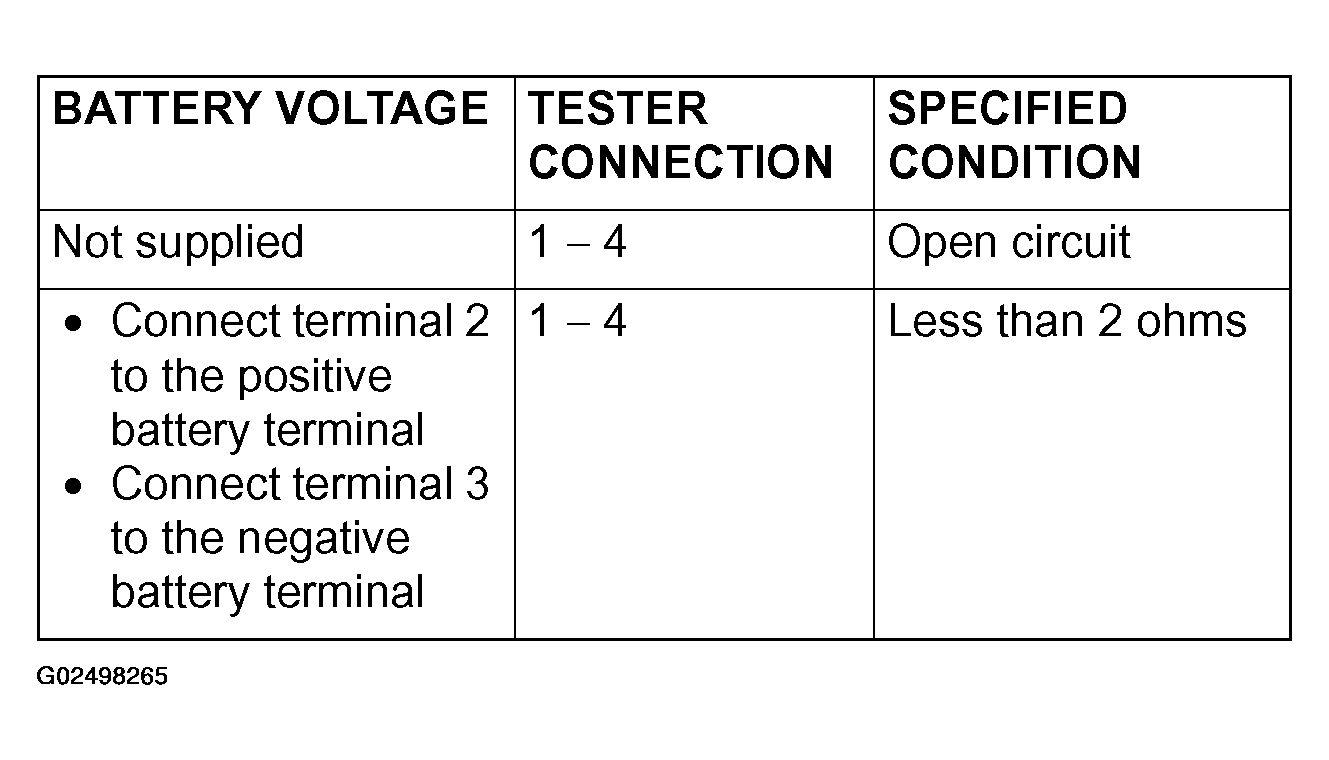

Fig 1: Tester Connection And Condition Reference
G02498265Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

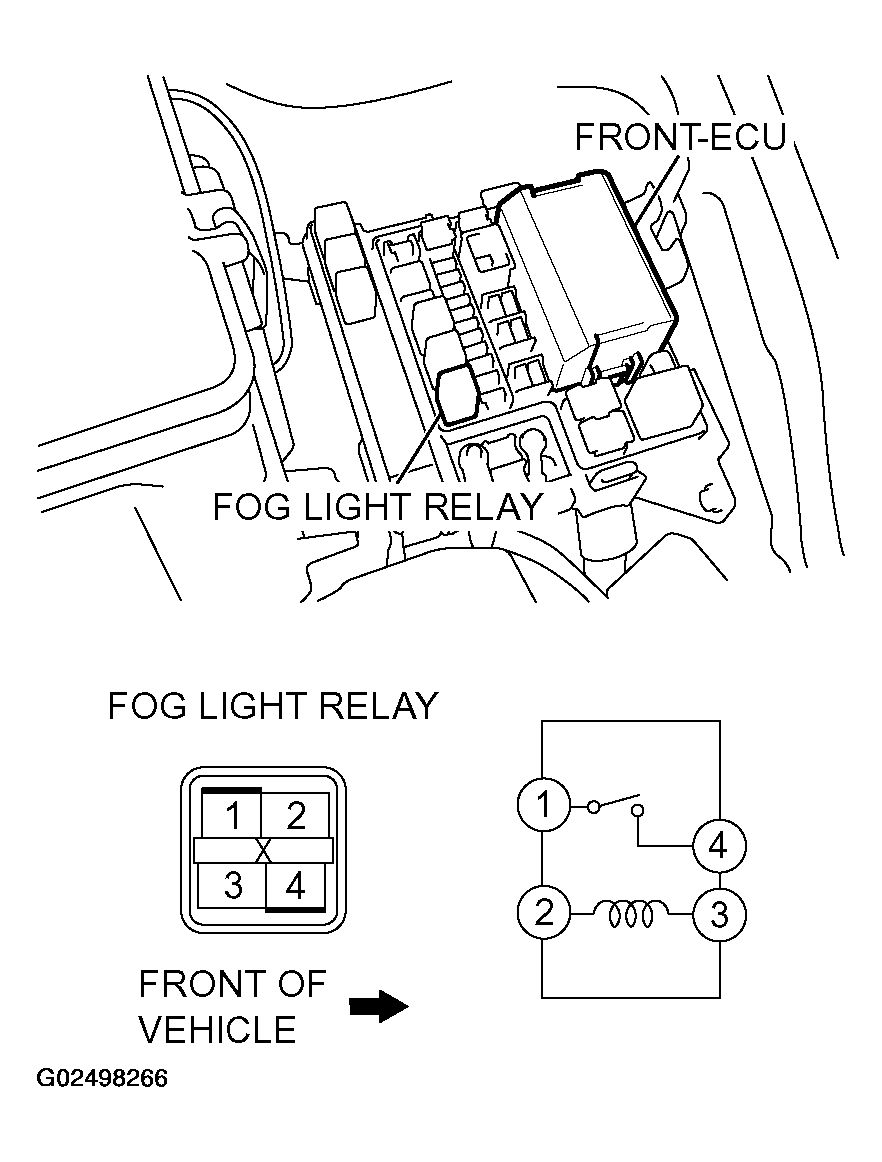

Fig 2: Identifying Fog Light Relay Location
G02498266Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
