Removal And Installation

WARNING: Before removing a seat equipped with the side air bag module, refer to SRS SERVICE PRECAUTIONS .

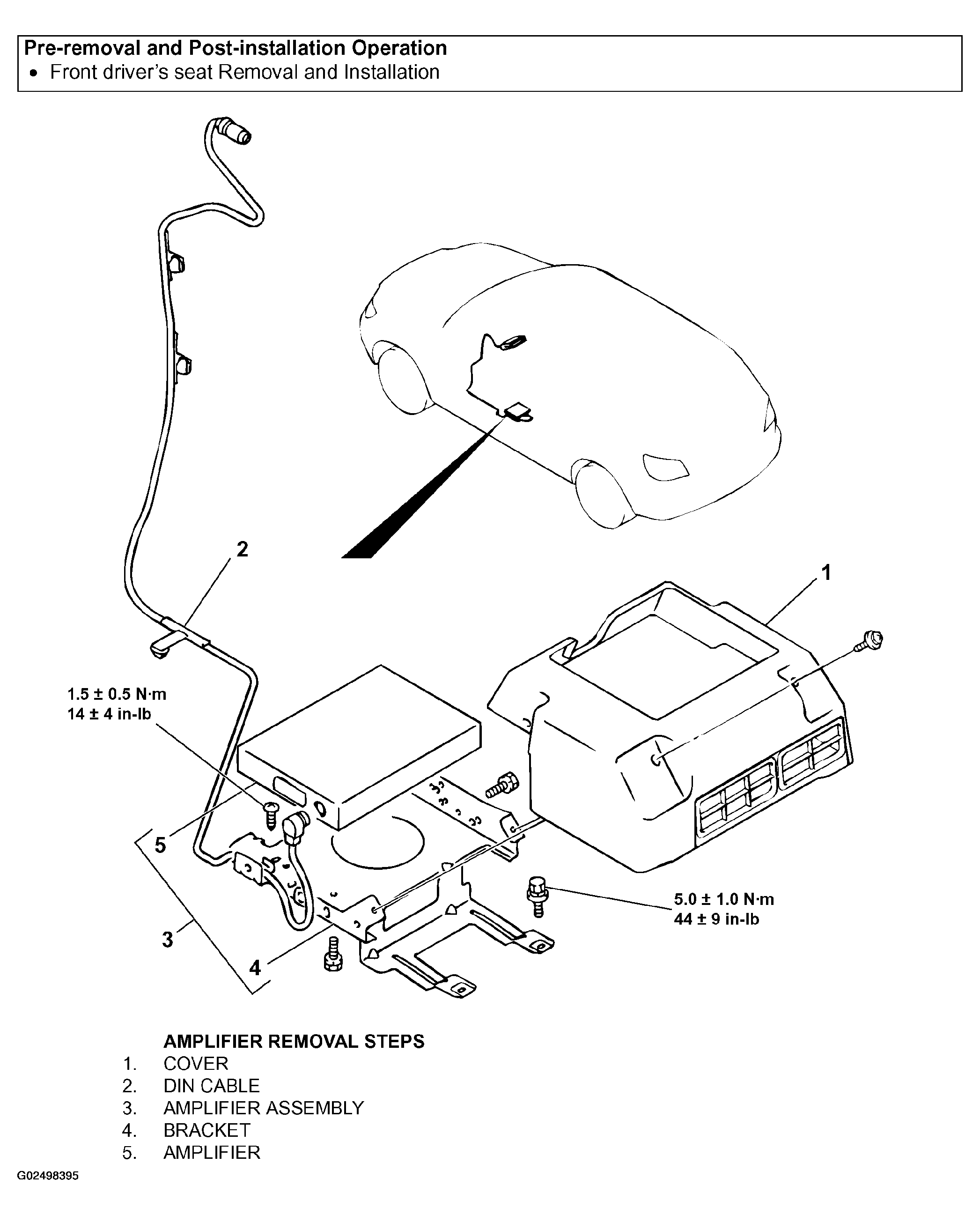

Fig 1: Removing/Installing Amplifier
G02498395Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Install each seat assembly mounting bolt in every installation location, then tighten to the specified torque.
