Chassis Electrical -- Except Evolution
>>
Speaker
>>
Removal And Installation
Removal And Installation

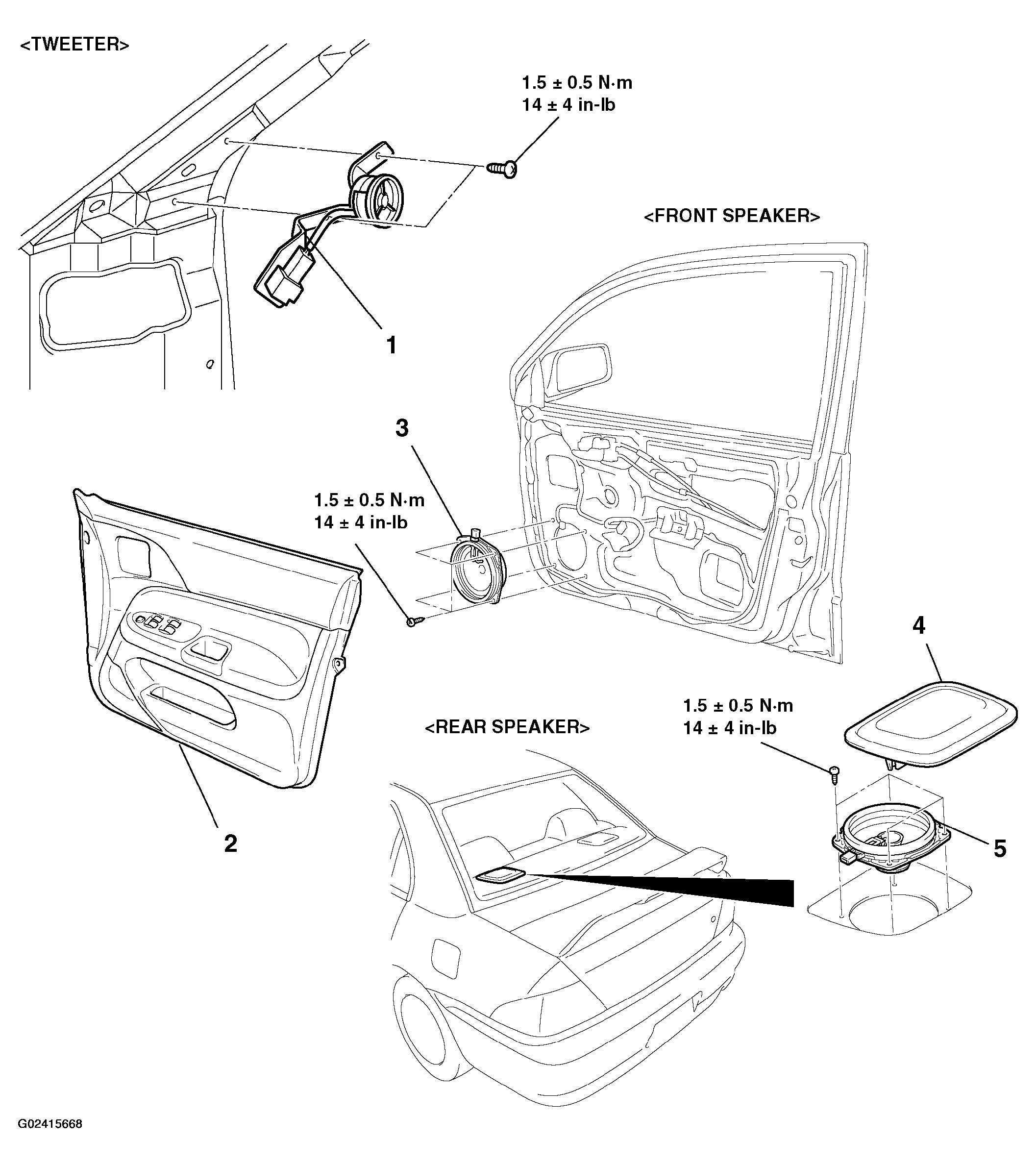

Fig 1: Removing Speaker (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

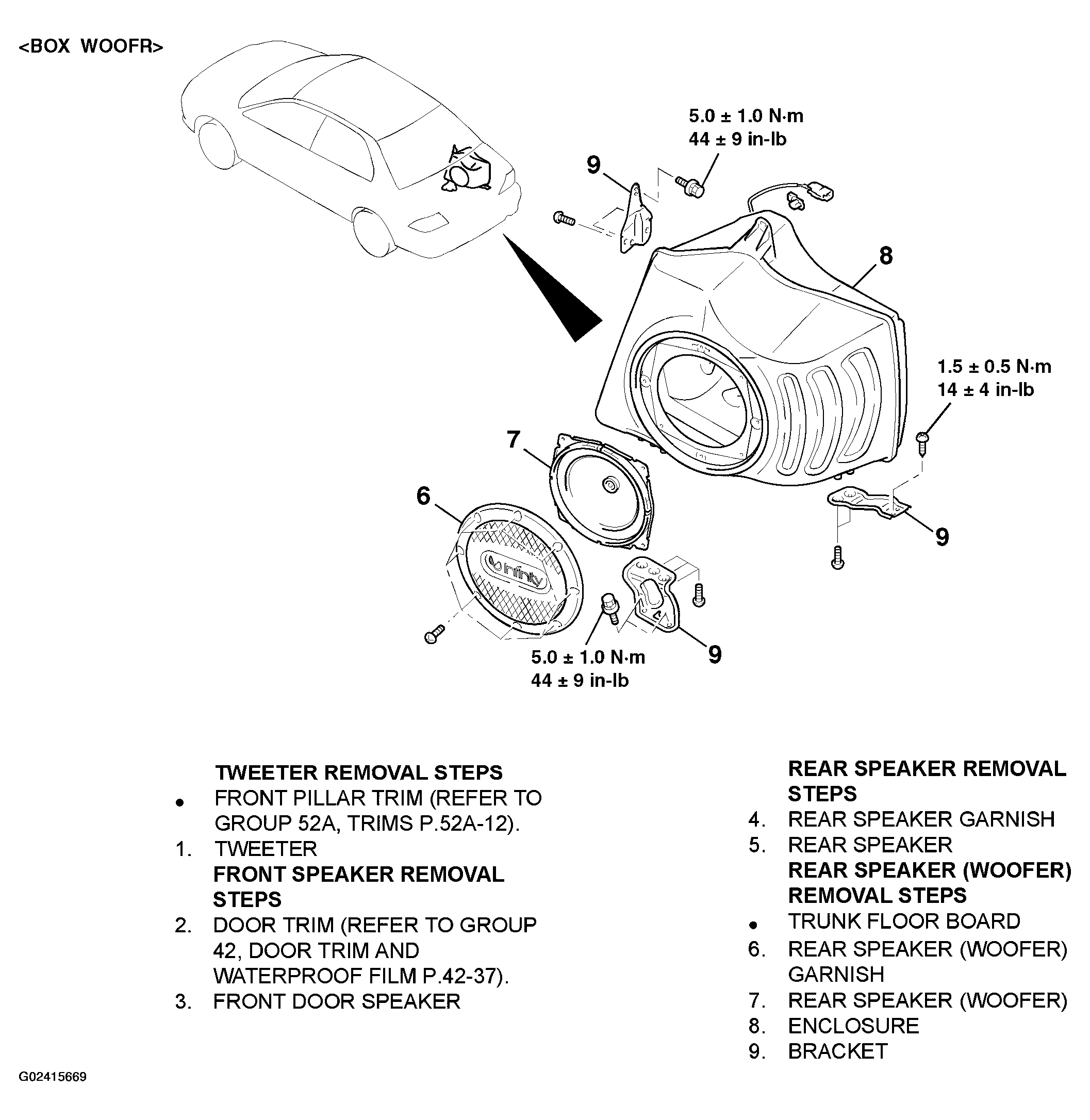

Fig 2: Removing Speaker (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
