Rheostat Check

  1. Connect a test light (40 W) as shown in the illumination.
  2. Operate the rheostat, If the luminance of the lamp changes steadily with no flashing, the rheostat is functioning normally.

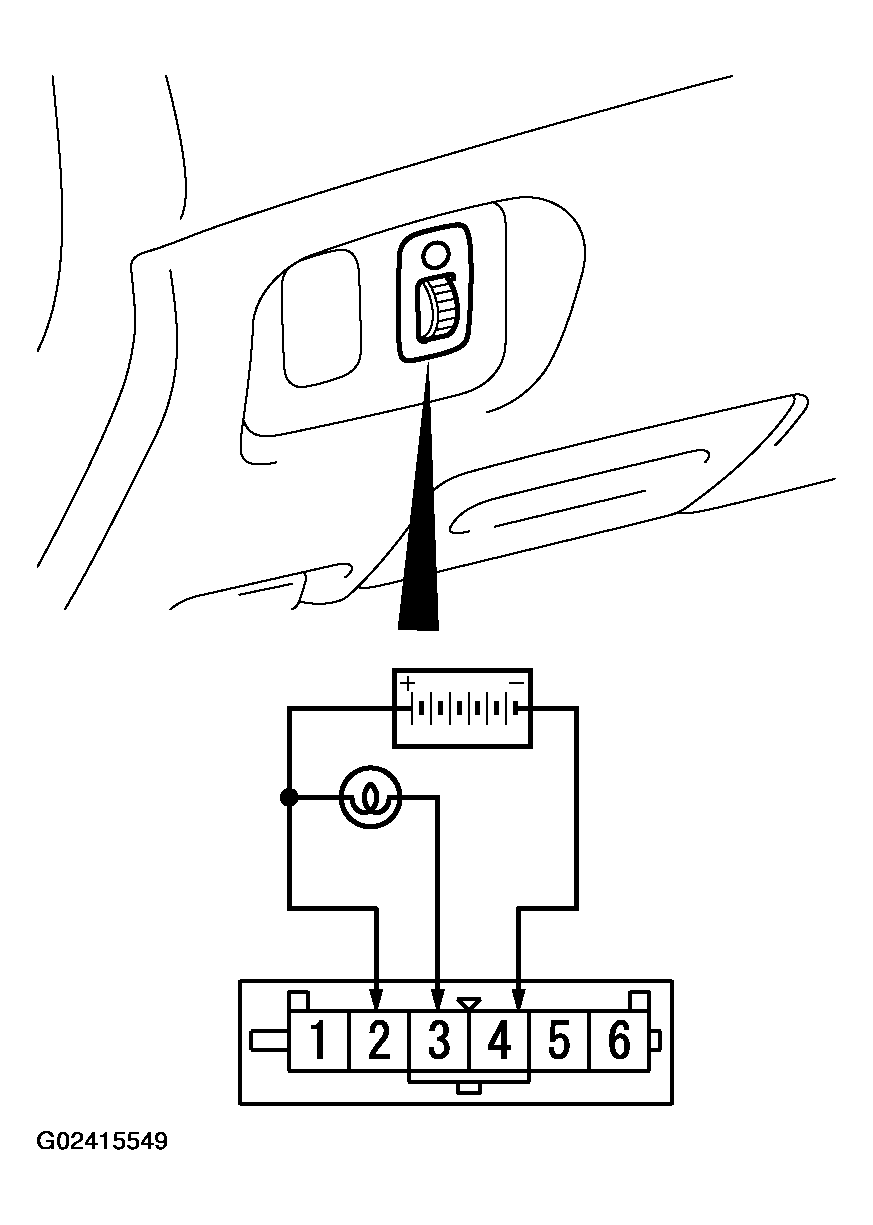

    Fig 1: Checking Rheostat
    G02415549Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
