Removal And Installation

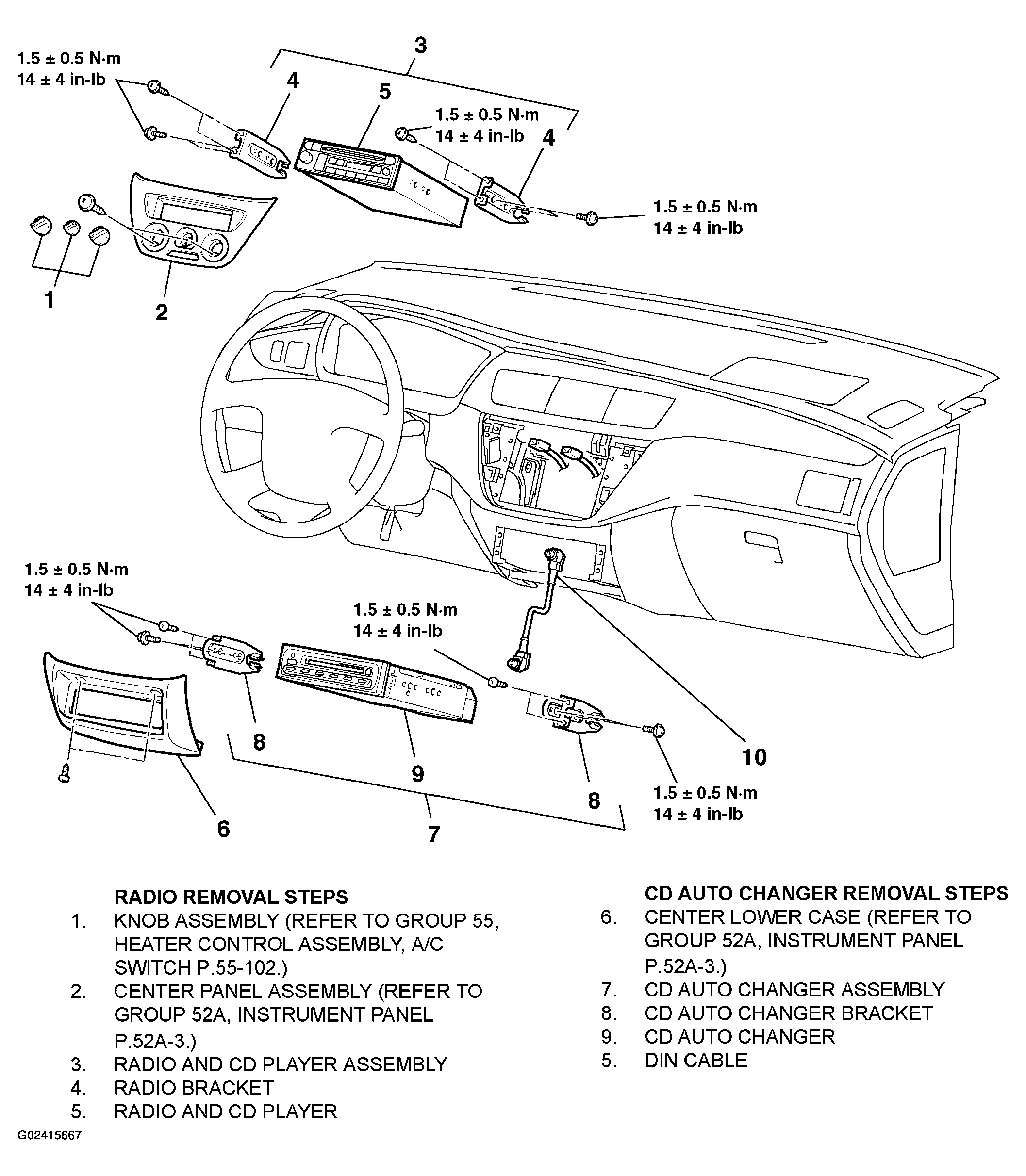

Fig 1: Removing Radio With Cd Player
G02415667Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
