INSPECTION PROCEDURE 3: No Sound from One Speaker. < Vehicles with Amplifier >: Notes

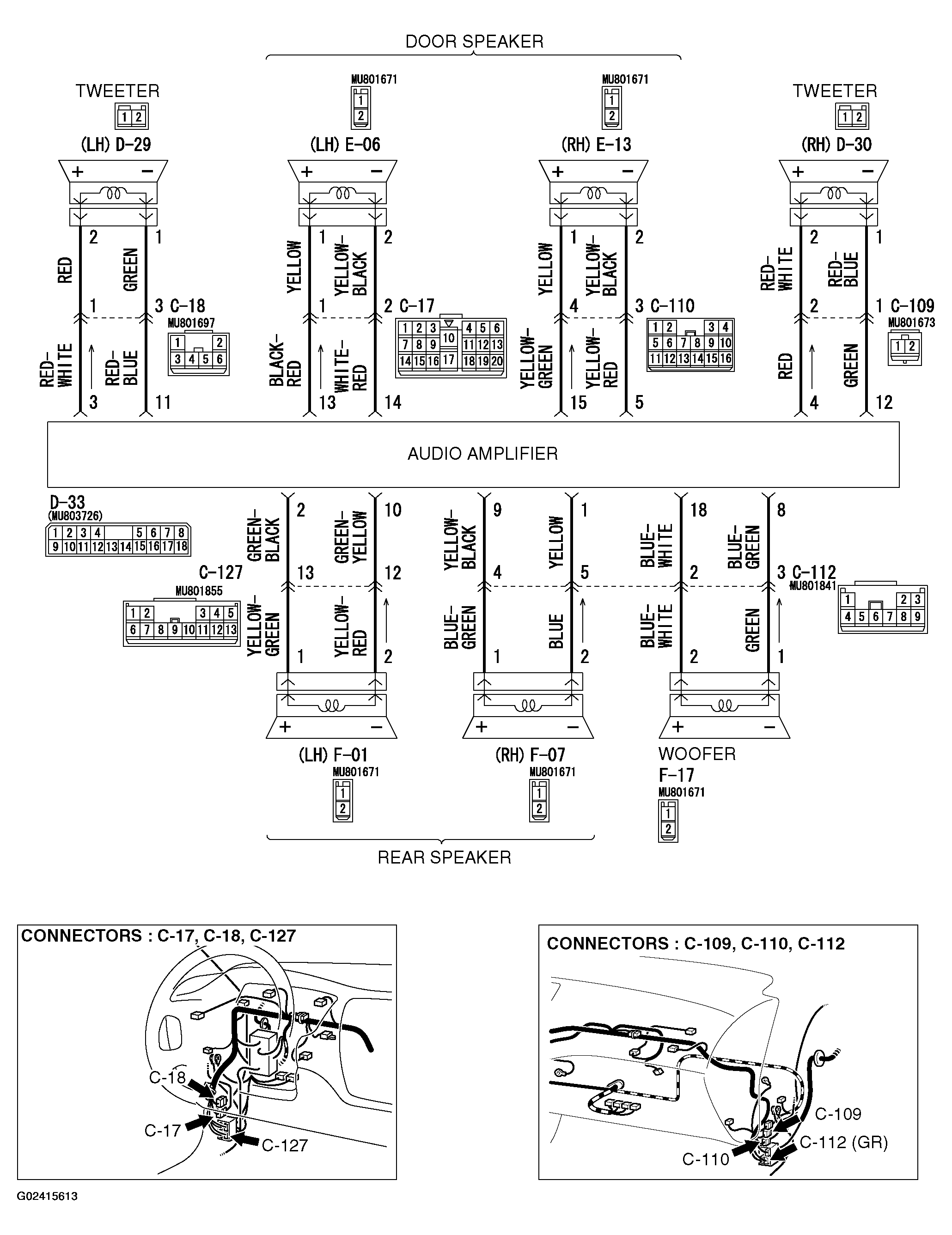

Fig 1: Identifying Speaker System Circuit Wiring Diagram (1 Of 2)
G02415613Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

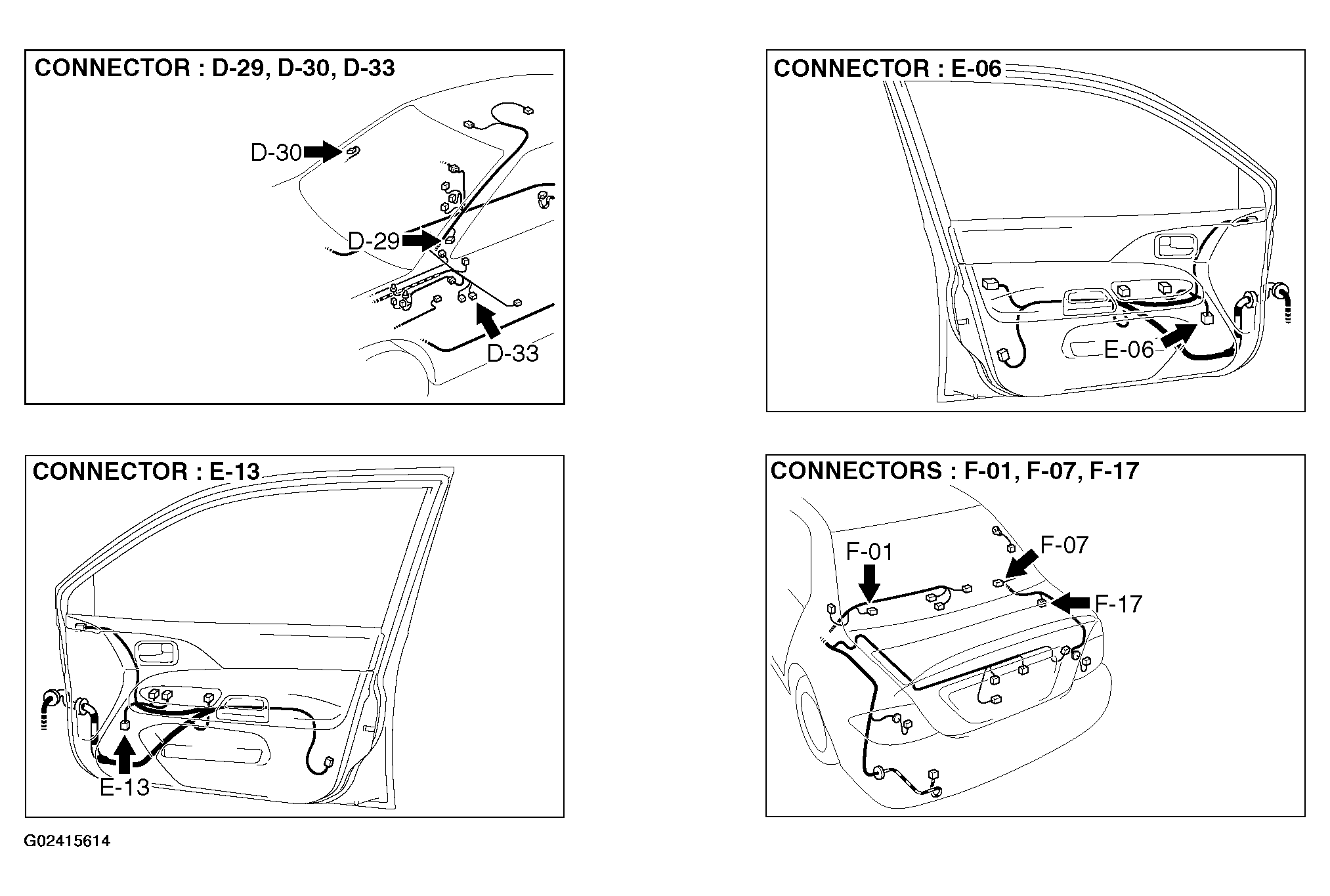

Fig 2: Identifying Speaker System Circuit Wiring Diagram (2 Of 2)
G02415614Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
