INSPECTION PROCEDURE 3: No Sound from One Speaker. < Vehicles with Amplifier >: Diagnosis

  1. STEP 1. Check to see which speaker the sound is not output from.

    Use the speaker test to determine which speaker does not sound.

    Q: Which speaker is not working?

    1. Door speaker (LH):  Go to Step 2.
    2. Door speaker (RH):  Go to  Step 5.
    3. Rear speaker (LH):  Go to  Step 8.
    4. Rear speaker (RH):  Go to  Step 11.
    5. Tweeter (LH):  Go to  Step 14.
    6. Tweeter (RH):  Go to  Step 17.
    7. Woofer:  Go to  Step 20.
  2. STEP 2. Check the door speaker (LH).
    1. Remove the door speaker (LH). Refer to SPEAKER  .
    2. Check that the door speaker (LH) generates noise when a five-volt voltage is applied on the door speaker (LH) terminal.

    Q: Is the door speaker (LH) generating noise?

    1. YES:  Go to Step 3.
    2. NO:  Replace the door speaker (LH). The door speaker (LH) should sound.

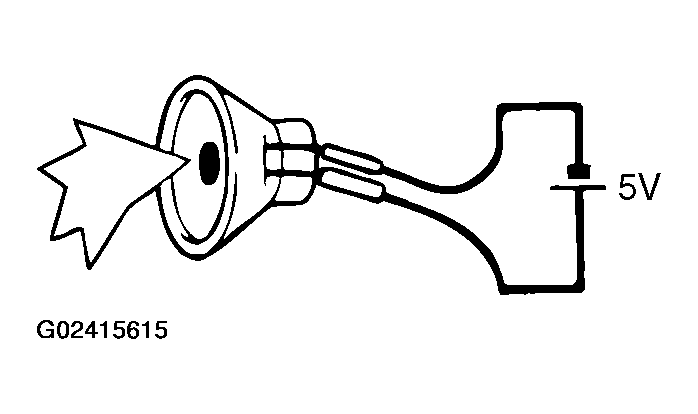

      Fig 1: Checking Door Speaker (LH)
      G02415615Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. STEP 3. Check door speaker (LH) connector E-06 and audio amplifier connector D-33 for damage.

    Q: Are harness connectors E-06 and D-33 in good condition?

    1. YES:  Go to Step 4.
    2. NO:  Repair or replace the connector. Refer to HARNESS CONNECTOR INSPECTION . The door speaker (LH) should sound.

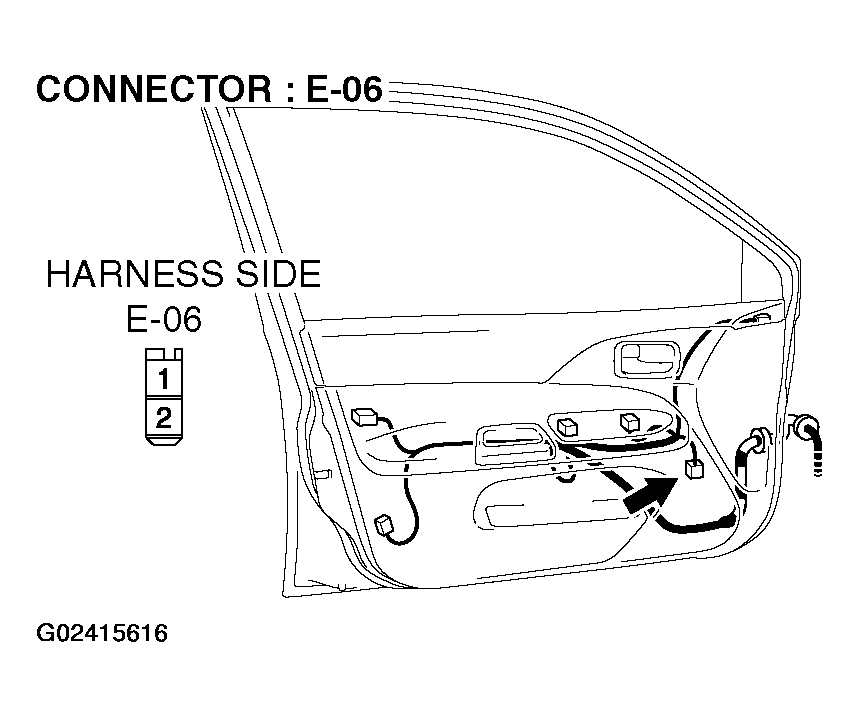

      Fig 2: Identifying E-06 Terminal Connectors
      G02415616Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      Fig 3: Identifying D-33 Terminal Connectors
      G02415617Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. STEP 4. Check the wiring harness between door speaker (LH) connector E-06 (terminal 1 and 2) and audio amplifier connector D-33 (terminal 13 and 14.)
    Fig 4: Identifying E-06 Terminal Connectors
    G02415618Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 5: Identifying D-33 Terminal Connectors
    G02415619Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    NOTE: Also check intermediate connector C-17. If intermediate connector C-17 are damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .

    Q: Are the wiring harness between door speaker (LH) connector E-06 (terminal 1 and 2) and audio amplifier connector D-33 (terminal 13 and 14) in good condition?

    1. YES:  Repair or replace the audio amplifier. The door speaker (LH) should sound.
    2. NO:  Repair the wiring harness. The door speaker (LH) should sound.

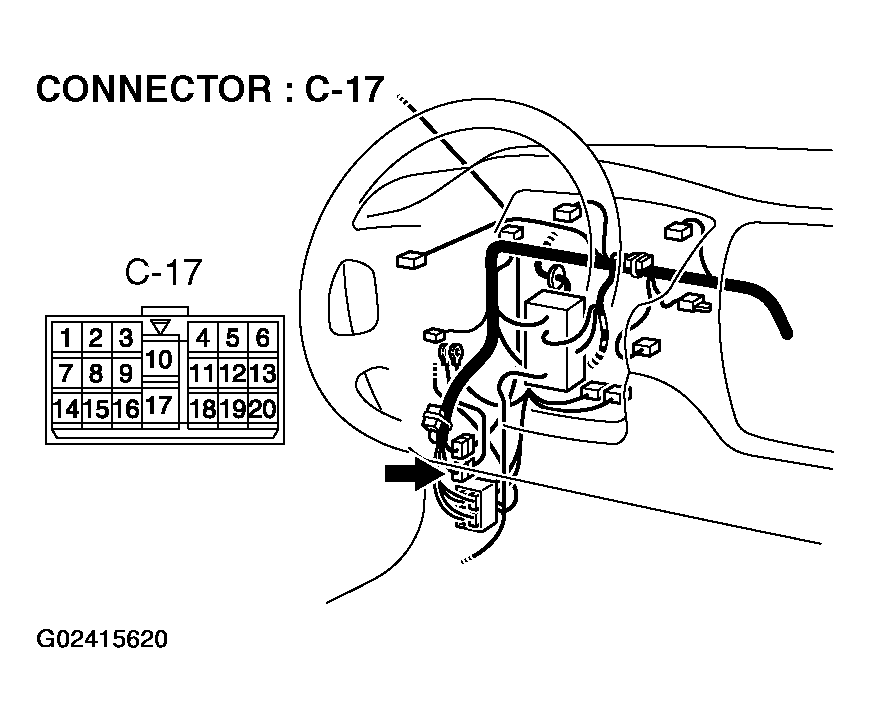

      Fig 6: Identifying C-17 Terminal Connectors
      G02415620Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. STEP 5. Check the door speaker (RH).
    1. Remove the door speaker (RH). Refer to SPEAKER  .
    2. Check that the door speaker (RH) generates noise when a five-volt voltage is applied on the door speaker (RH) terminal.

    Q: Is the door speaker (RH) generating noise?

    1. YES:  Go to Step 6.
    2. NO:  Replace the door speaker (RH). The door speaker (RH) should sound.
      Fig 7: Checking Door Speaker (RH)
      G02415621Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  6. STEP 6. Check door speaker (RH) connector E-13 and audio amplifier connector D-33 for damage.

    Q: Are harness connectors E-13 and D-33 in good condition?

    1. YES:  Go to Step 7.
    2. NO:  Repair or replace the connector. Refer to HARNESS CONNECTOR INSPECTION . The door speaker (RH) should sound.

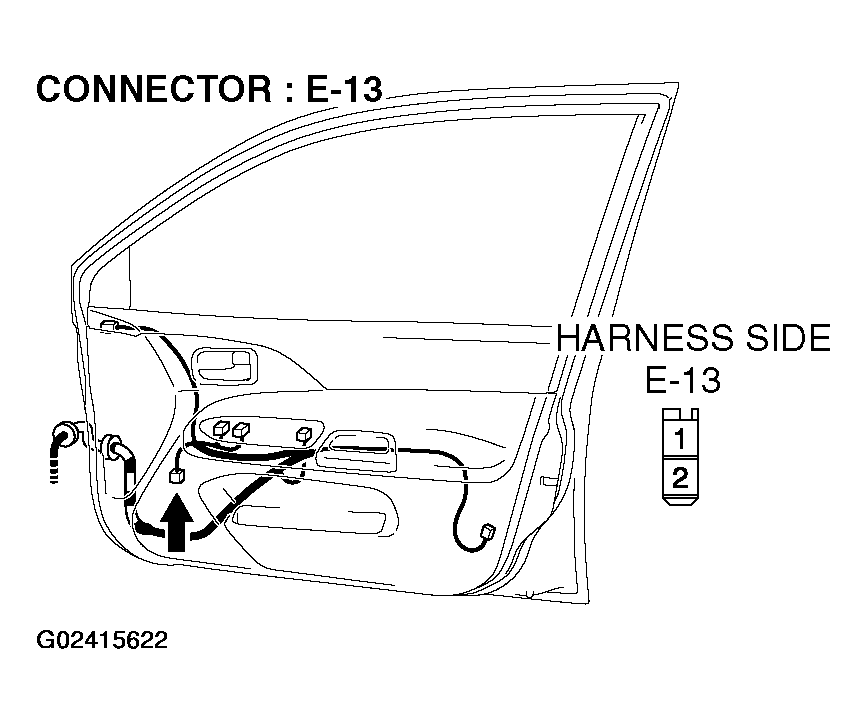

      Fig 8: Identifying E-13 Terminal Connectors
      G02415622Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      Fig 9: Identifying D-33 Terminal Connectors
      G02415623Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  7. STEP 7. Check the wiring harness between door speaker (RH) connector E-13 (terminal 1 and 2) and audio amplifier connector D-33 (terminal 5 and 15.)
    Fig 10: Identifying E-13 Terminal Connectors
    G02415624Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 11: Identifying D-33 Terminal Connectors
    G02415625Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    NOTE: Also check intermediate connector C-110. If intermediate connector C-110 are damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .

    Q: Are the wiring harness between door speaker (RH) connector E-13 (terminal 1 and 2) and audio amplifier connector D-33 (terminal 5 and 15) in good condition?

    1. YES:  Repair or replace the audio amplifier. The door speaker (RH) should sound.
    2. NO:  Repair the wiring harness. The door speaker (RH) should sound.

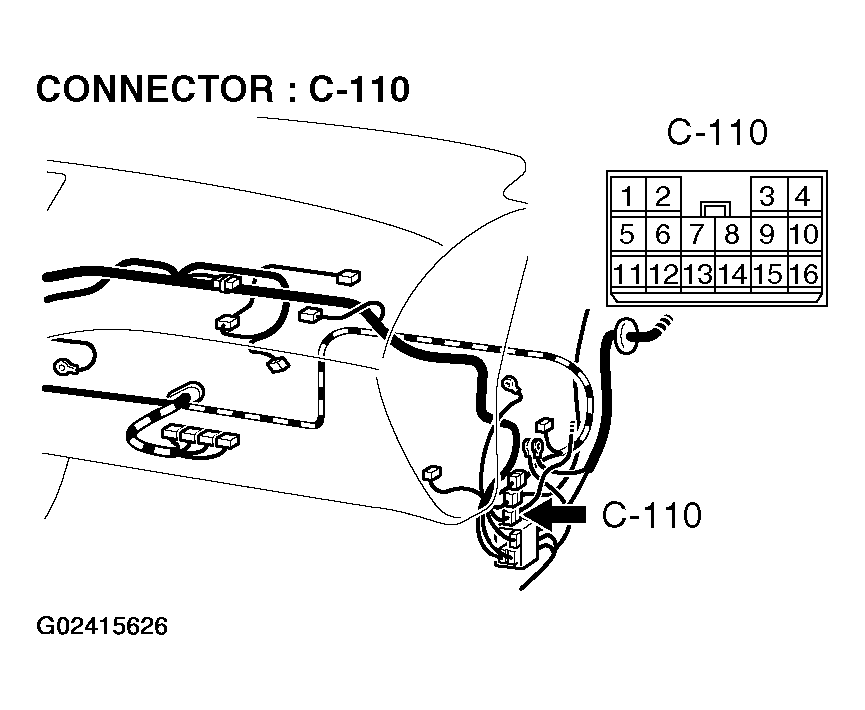

      Fig 12: Identifying C-110 Terminal Connectors
      G02415626Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  8. STEP 8. Check the rear speaker (LH).
    1. Remove the rear speaker (LH). Refer to SPEAKER  .
    2. Check that the rear speaker (LH) generates noise when a five-volt voltage is applied on the rear speaker (LH) terminal.

    Q: Is the rear speaker (LH) generating noise?

    1. YES:  Go to Step 9.
    2. NO:  Replace the rear speaker (LH). The rear speaker (LH) should sound.
      Fig 13: Checking Rear Speaker (LH)
      G02415627Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  9. STEP 9. Check rear speaker (LH) connector F-01 and audio amplifier connector D-33 for damage.

    Q: Are harness connectors F-01 and D-33 in good condition?

    1. YES:  Go to Step 10.
    2. NO:  Repair or replace the connector. Refer to HARNESS CONNECTOR INSPECTION . The rear speaker (LH) should sound.
      Fig 14: Identifying F-01 Terminal Connectors
      G02415628Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      Fig 15: Identifying D-33 Terminal Connectors
      G02415629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  10. STEP 10. Check the wiring harness between rear speaker (LH) connector F-01 (terminal 1 and 2) and audio amplifier connector D-33 (terminal 2 and 10.)

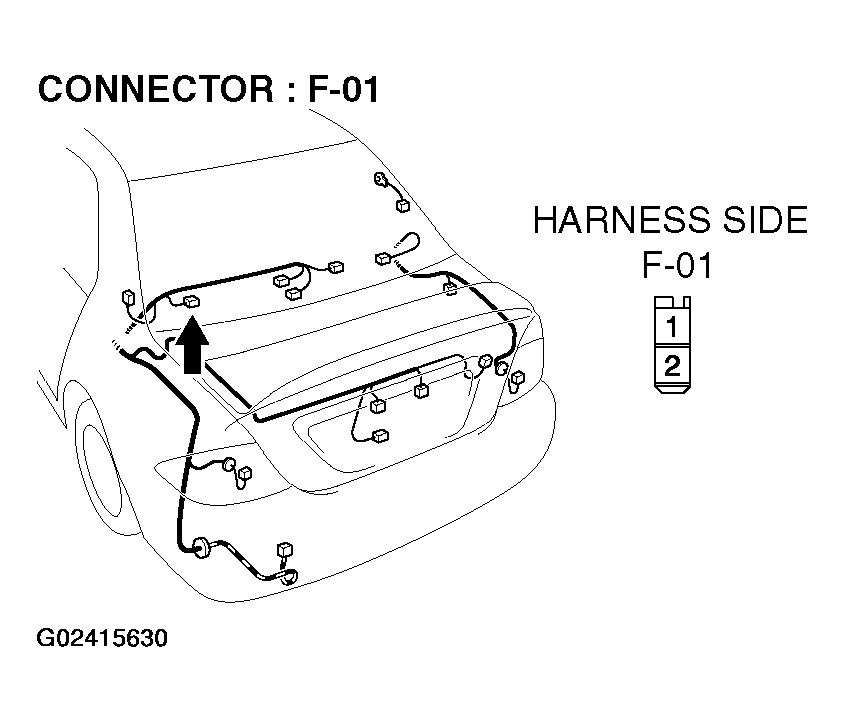

    Fig 16: Identifying F-01 Terminal Connectors
    G02415630Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 17: Identifying D-33 Terminal Connectors
    G02415631Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    NOTE: Also check intermediate connector C-127. If intermediate connector C-127 is damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .

    Q: Are the wiring harness between the rear speaker (LH) connector F-01 (terminal 1 and 2) and audio amplifier connector D-33 (terminal 2 and 10) in good condition?

    1. YES:  Repair or replace the audio amplifier. The rear speaker (LH) should sound.
    2. NO:  Repair the wiring harness. The rear speaker (LH) should sound.

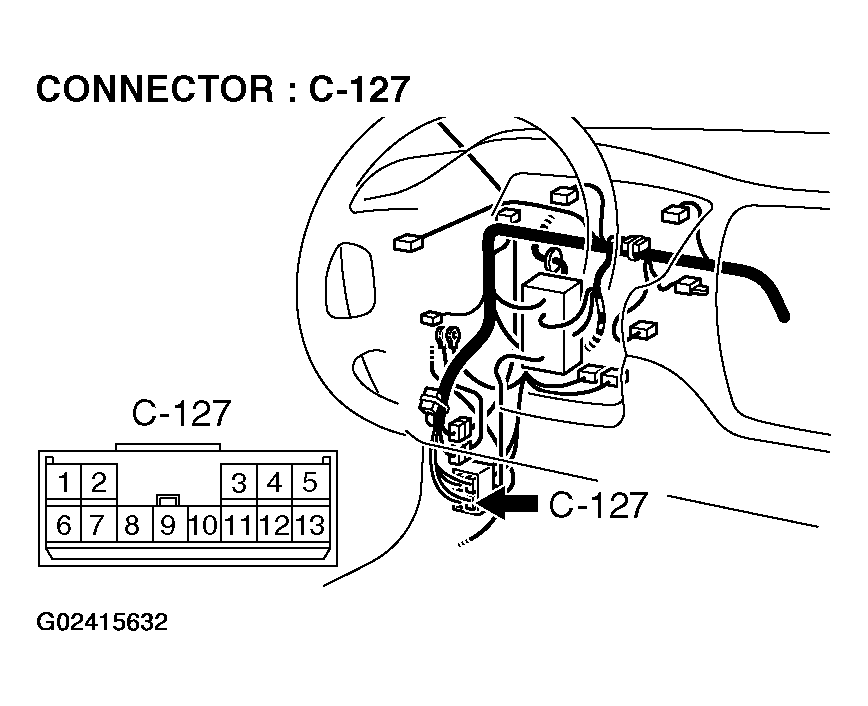

      Fig 18: Identifying C-127 Terminal Connectors
      G02415632Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  11. STEP 11. Check the rear speaker (RH).
    1. Remove the rear speaker (RH). Refer to SPEAKER  .
    2. Check that the rear speaker (RH) generates noise when a five-volt voltage is applied on the rear speaker (RH) terminal.

    Q: Is the rear speaker (RH) generating noise?

    1. YES:  Go to Step 12.
    2. NO:  Replace the rear speaker (RH). The rear speaker (RH) should sound.
      Fig 19: Checking Rear Speaker (RH)
      G02415633Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  12. STEP 12. Check rear speaker (RH) connector F-07 and audio amplifier connector D-33 for damage.

    Q: Are harness connectors F-07 and D-33 in good condition?

    1. YES:  Go to Step 13.
    2. NO:  Repair or replace the connector. Refer to HARNESS CONNECTOR INSPECTION . The rear speaker (RH) should sound.
      Fig 20: Identifying F-07 Terminal Connectors
      G02415634Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      Fig 21: Identifying D-33 Terminal Connectors
      G02415635Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  13. STEP 13. Check the wiring harness between rear speaker (RH) connector F-07 (terminal 1 and 2) and audio amplifier connector D-33 (terminal 9 and 1.)

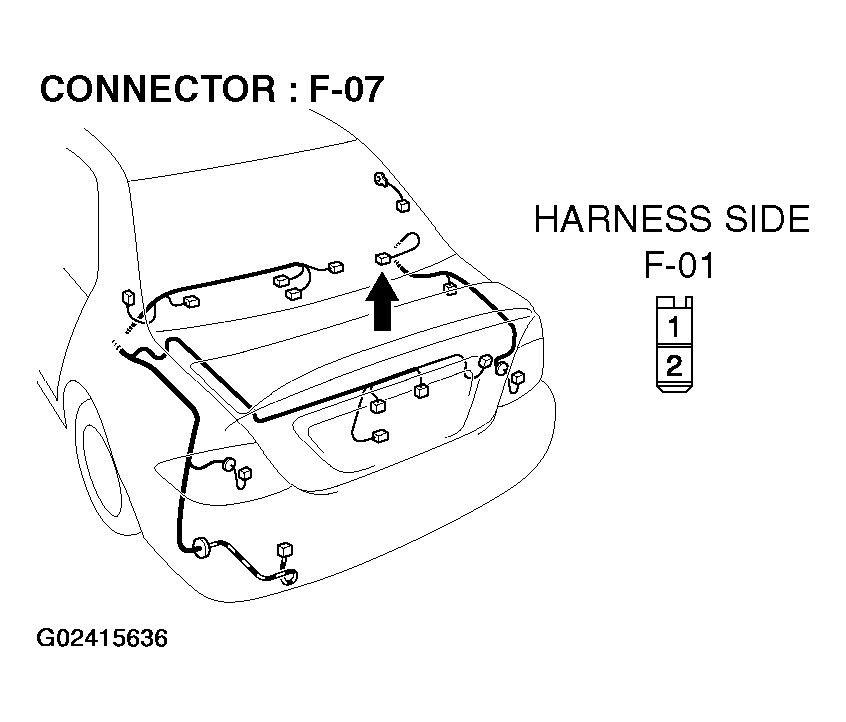

    Fig 22: Identifying F-07 Terminal Connectors
    G02415636Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 23: Identifying D-33 Terminal Connectors
    G02415637Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    NOTE: Also check intermediate connector C-112. If intermediate connector C-112 is damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .

    Q: Are the wiring harness between rear speaker (RH) connector F-07 (terminal 1 and 2) and audio amplifier connector D-33 (terminal 9 and 1) in good condition?

    1. YES:  Repair or replace the audio amplifier. The rear speaker (RH) should sound.
    2. NO:  Repair the wiring harness. The rear speaker (RH) should sound.

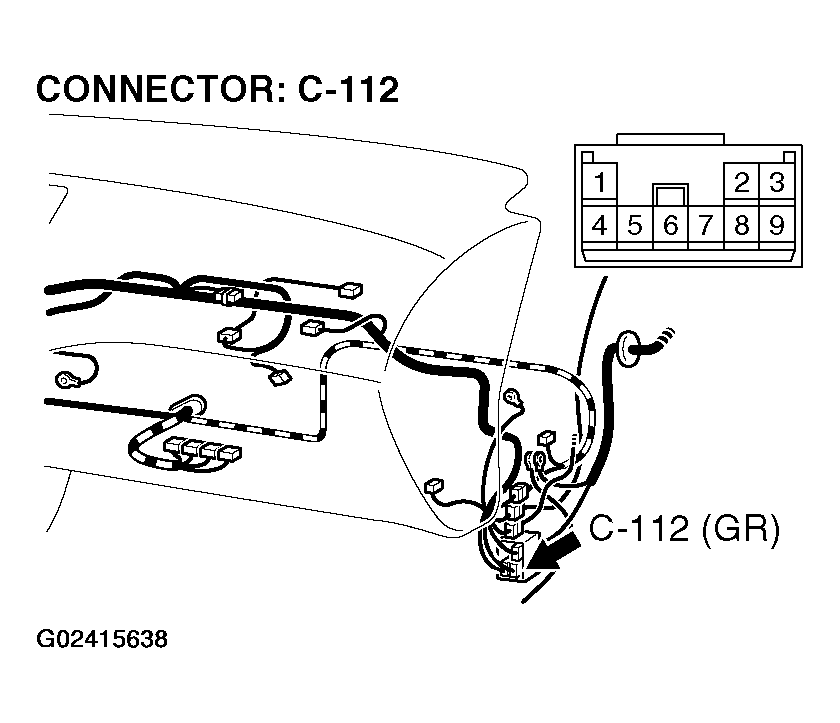

      Fig 24: Identifying C-112 Terminal Connectors
      G02415638Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  14. STEP 14. Check the tweeter (LH).
    1. Remove the tweeter (LH).
    2. Check that the tweeter (LH) generates noise when a five-volt voltage is applied on the tweeter (LH) terminal.

    Q: Is the tweeter (LH) generating noise?

    1. YES:  Go to Step 15.
    2. NO:  Replace the tweeter (LH). The tweeter (LH) should sound.
  15. STEP 15 Check tweeter (LH) connector D-29 and audio amplifier connector D-33 for damage.

    Q: Are harness connectors D-29 and D-33 in good condition?

    1. YES:  Go to Step 16.
    2. NO:  Repair or replace them. Refer to HARNESS CONNECTOR INSPECTION . The tweeter (LH) should sound.
      Fig 25: Identifying D-29, D-33 Terminal Connectors
      G02415639Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  16. STEP 16. Check the harness wires between tweeter (LH) connector D-29 (terminal 1 and 2) and audio amplifier connector D-33 (terminal 11 and 3.)

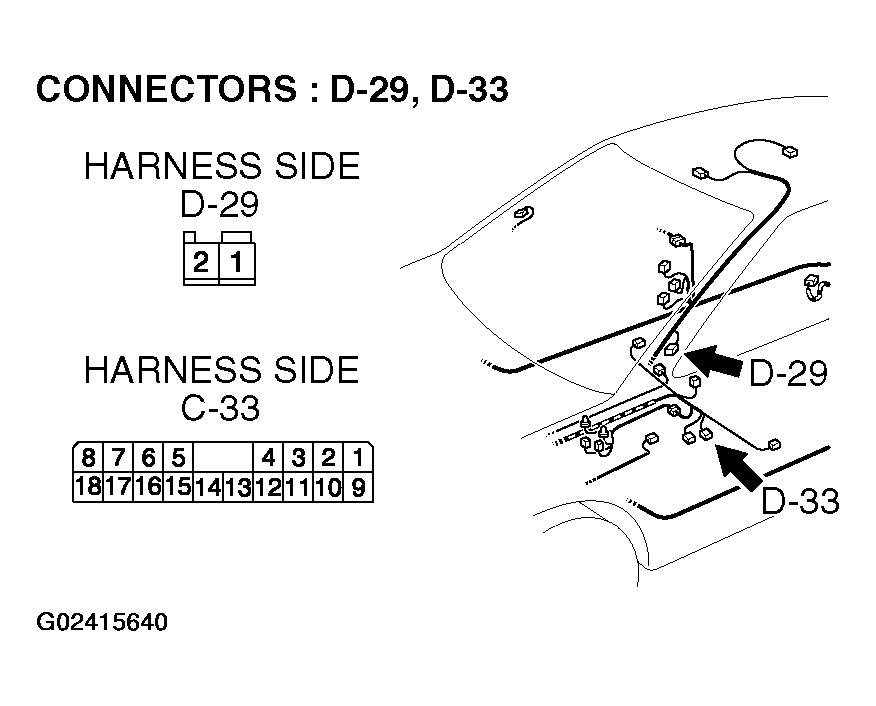

    Fig 26: Identifying D-29, D-33 Terminal Connectors
    G02415640Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    NOTE: After inspecting intermediate connector C-18, inspect the wire. If intermediate connector C-18 are damaged, repair or replace it. Refer to HARNESS CONNECTOR INSPECTION .

    Q: Are the harness wires between tweeter (LH) connector D-29 (terminal 1 and 2) and audio amplifier connector D-33 (terminal 11 and 3) in good condition?

    1. YES:  Repair or replace the audio amplifier. The tweeter (LH) should sound.
    2. NO:  Repair them. The tweeter (LH) should sound.

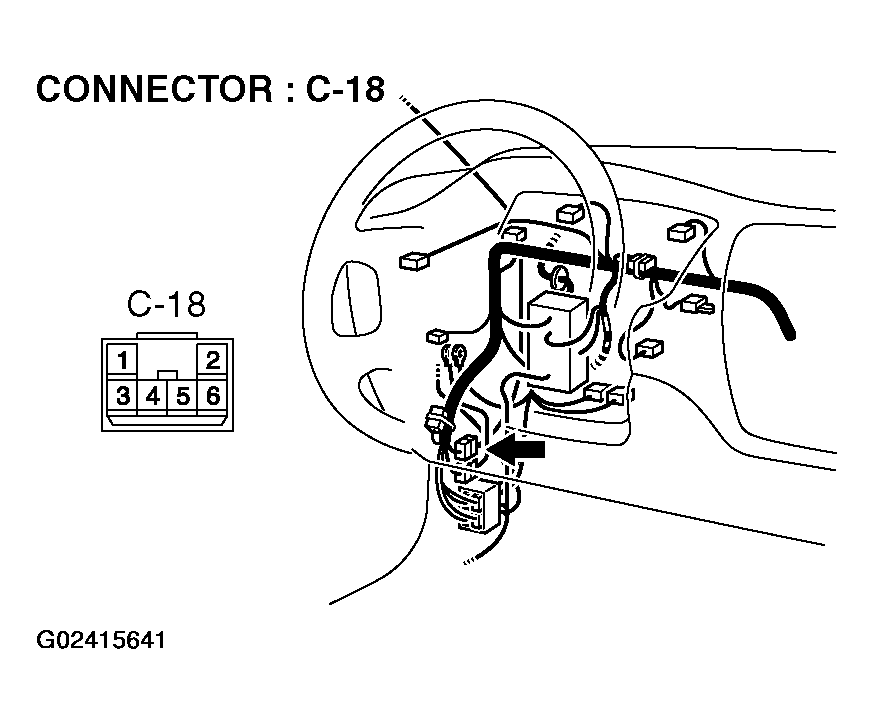

      Fig 27: Identifying C-18 Terminal Connectors
      G02415641Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  17. STEP 17. Check the tweeter (RH).
    1. Remove the tweeter (RH).
    2. Check that the tweeter (RH) generates noise when a five-volt voltage is applied on the speaker terminal.

    Q: Is the tweeter (RH) generating noise?

    1. YES:  Go to Step 18.
    2. NO:  Replace the tweeter (RH). The tweeter (RH) should sound.
  18. STEP 18. Check tweeter (RH) connector D-30 and audio amplifier connector D-33 for damage.

    Q: Are harness connectors D-30 and D-33 in good condition?

    1. YES:  Go to Step 19.
    2. NO:  Repair or replace them. Refer to HARNESS CONNECTOR INSPECTION . The tweeter (RH) should sound.
      Fig 28: Identifying D-30, D-33 Terminal Connectors
      G02415642Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  19. STEP 19. Check the harness wires between tweeter (RH) connector D-30 (terminal 1 and 2) and audio amplifier connector D-33 (terminal 12 and 4.)

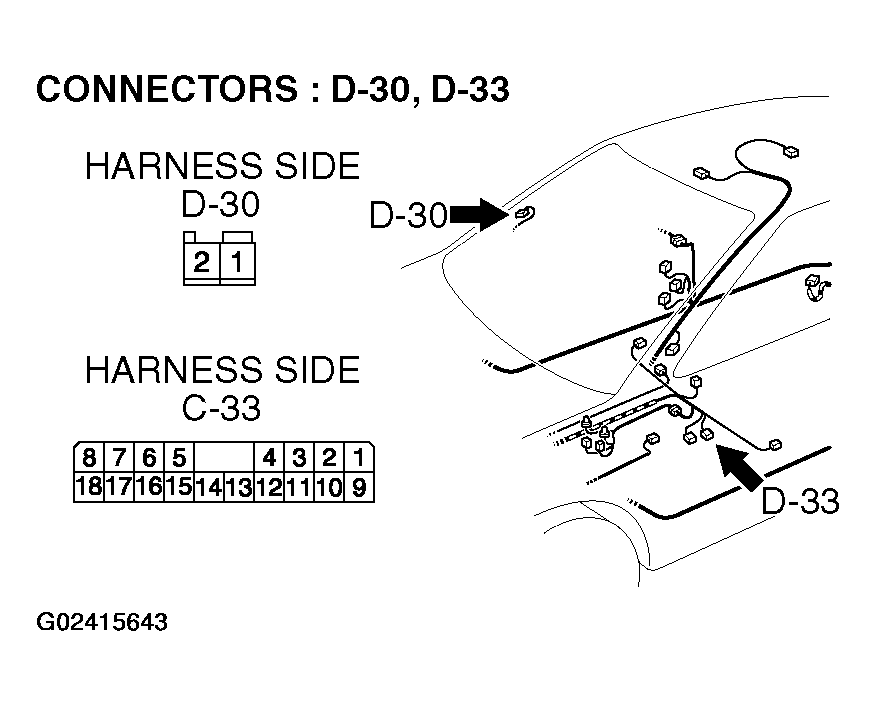

    Fig 29: Identifying D-30, D-33 Terminal Connectors
    G02415643Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    NOTE: After inspecting intermediate connector C-109, inspect the wire. If intermediate connector C-109 are damaged, repair or replace it. Refer to HARNESS CONNECTOR INSPECTION .

    Q: Are the harness wires between tweeter (RH) connector D-30 (terminal 1 and 2) and audio amplifier connector D-33 (terminal 12 and 4) in good condition?

    1. YES:  Repair or replace the audio amplifier. The tweeter (RH) should sound.
    2. NO:  Repair them. The tweeter (RH) should sound.

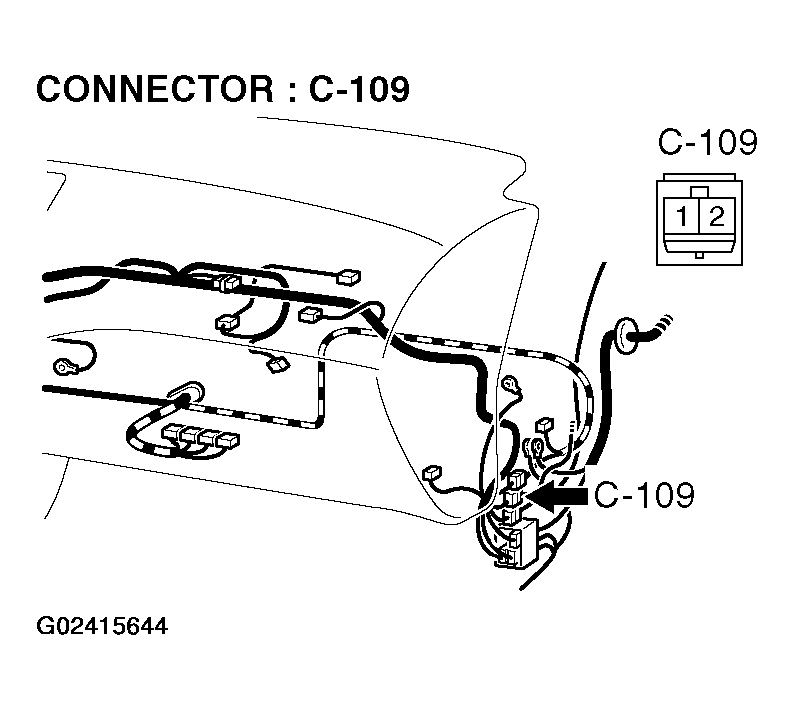

      Fig 30: Identifying C-109 Terminal Connectors
      G02415644Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  20. STEP 20. Check the woofer.
    1. Remove the woofer. Refer to SPEAKER  .
    2. Check that the woofer generates noise when a five-volt voltage is applied on the woofer terminal.

    Q: Is the woofer generating noise?

    1. YES:  Go to Step 21.
    2. NO:  Replace the woofer. The woofer should sound.
      Fig 31: Checking Woofer
      G02415645Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  21. STEP 21. Check woofer connector F-17 and audio amplifier connector D-33 for damage.

    Q: Are harness connectors F-17 and D-33 in good condition?

    1. YES:  Go to Step 22.
    2. NO:  Repair or replace the connector. Refer to HARNESS CONNECTOR INSPECTION . The woofer should sound.

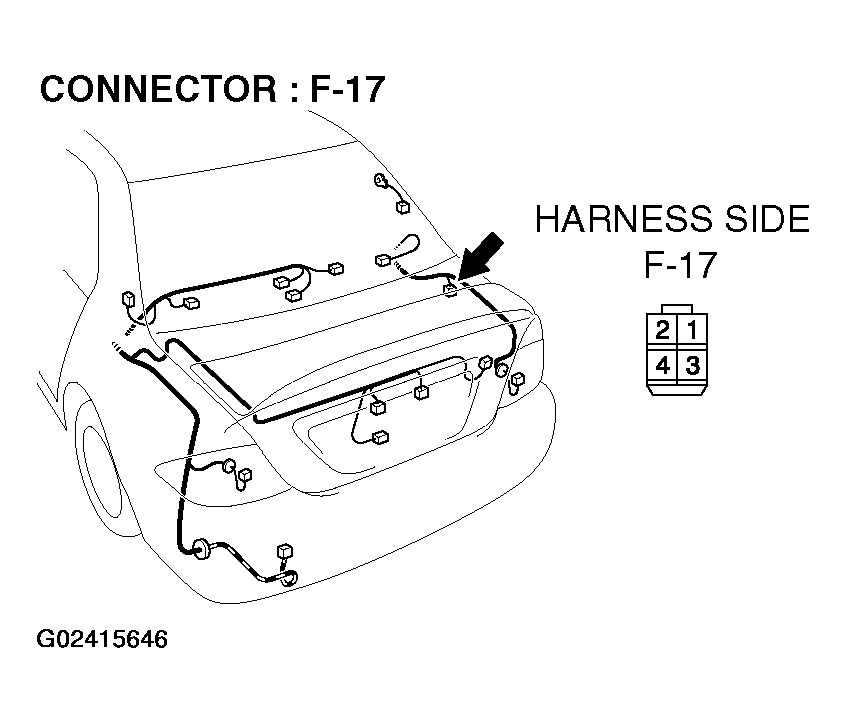

      Fig 32: Identifying F-17 Terminal Connectors
      G02415646Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

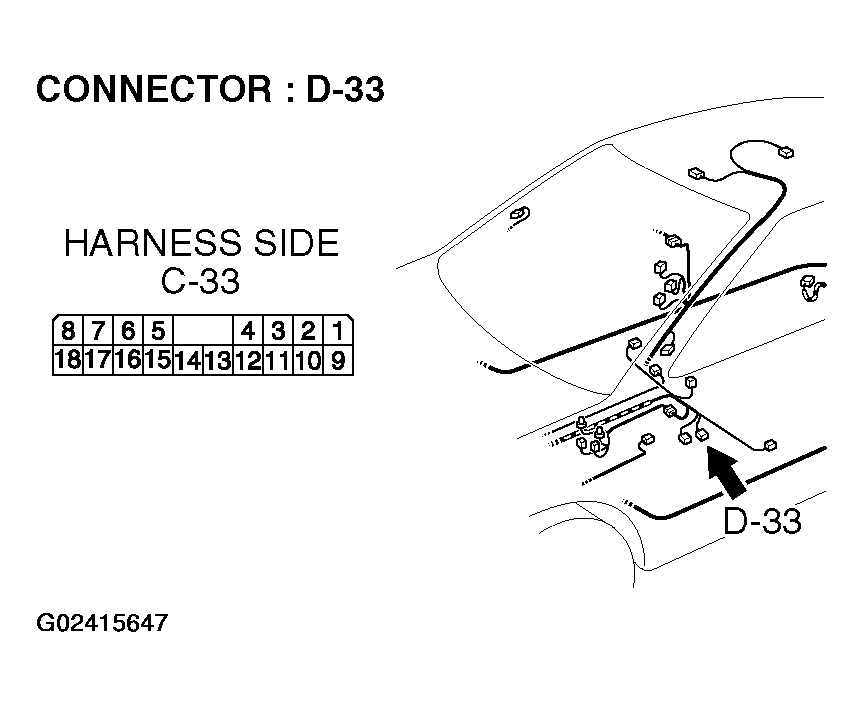

      Fig 33: Identifying D-33 Terminal Connectors
      G02415647Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  22. STEP 22. Check the wiring harness between woofer connector F-17 (terminal 1 and 2) and audio amplifier connector D-33 (terminal 8 and 18.)

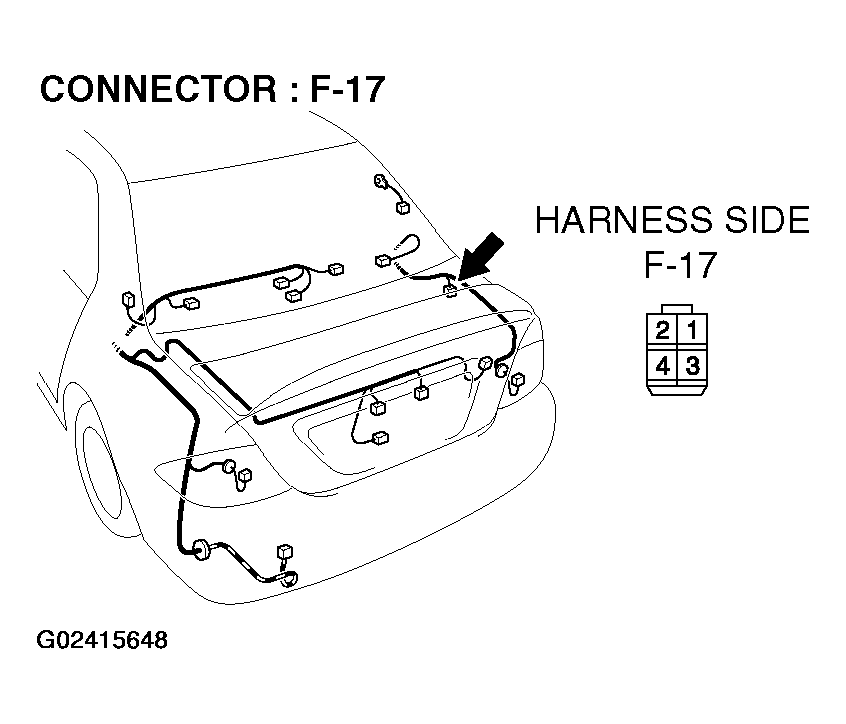

    Fig 34: Identifying F-17 Terminal Connectors
    G02415648Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 35: Identifying D-33 Terminal Connectors
    G02415649Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    NOTE: Also check intermediate connector C-112. If intermediate connector C-112 is damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .

    Q: Are the wiring harness between woofer connector F-17 (terminal 1 and 2) and audio amplifier connector D-33 (terminal 8 and 18) in good condition?

    1. YES:  Repair or replace the audio amplifier. The woofer should sound.
    2. NO:  Repair the wiring harness. The woofer should sound.
    Fig 36: Identifying C-112 Terminal Connectors
    G02415650Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
