INSPECTION PROCEDURE 2: No Sound from One Speaker. < Vehicles without Amplifier >: Notes

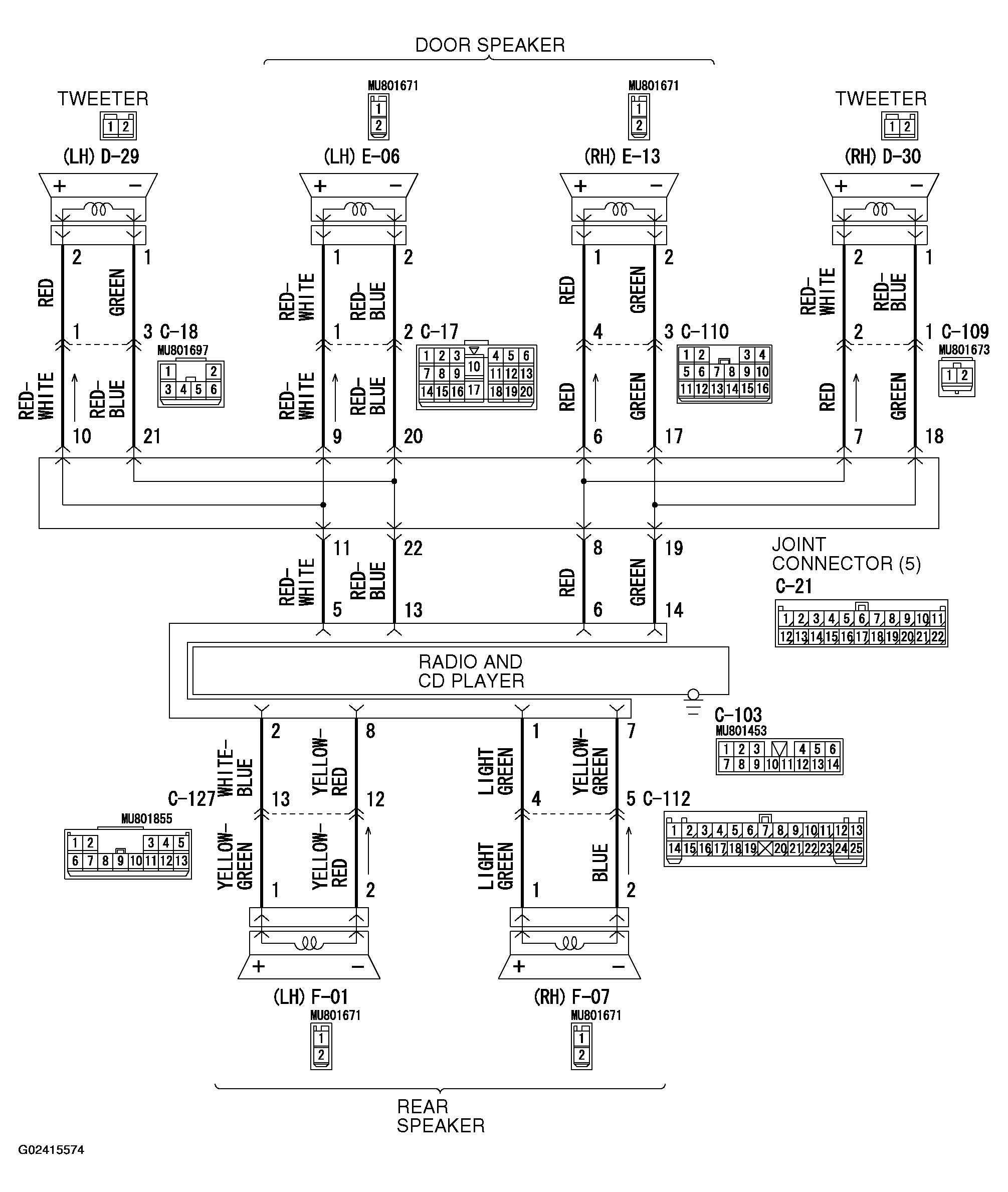

Fig 1: Speaker System Circuit < 6 Speaker > Wiring Diagram
G02415574Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

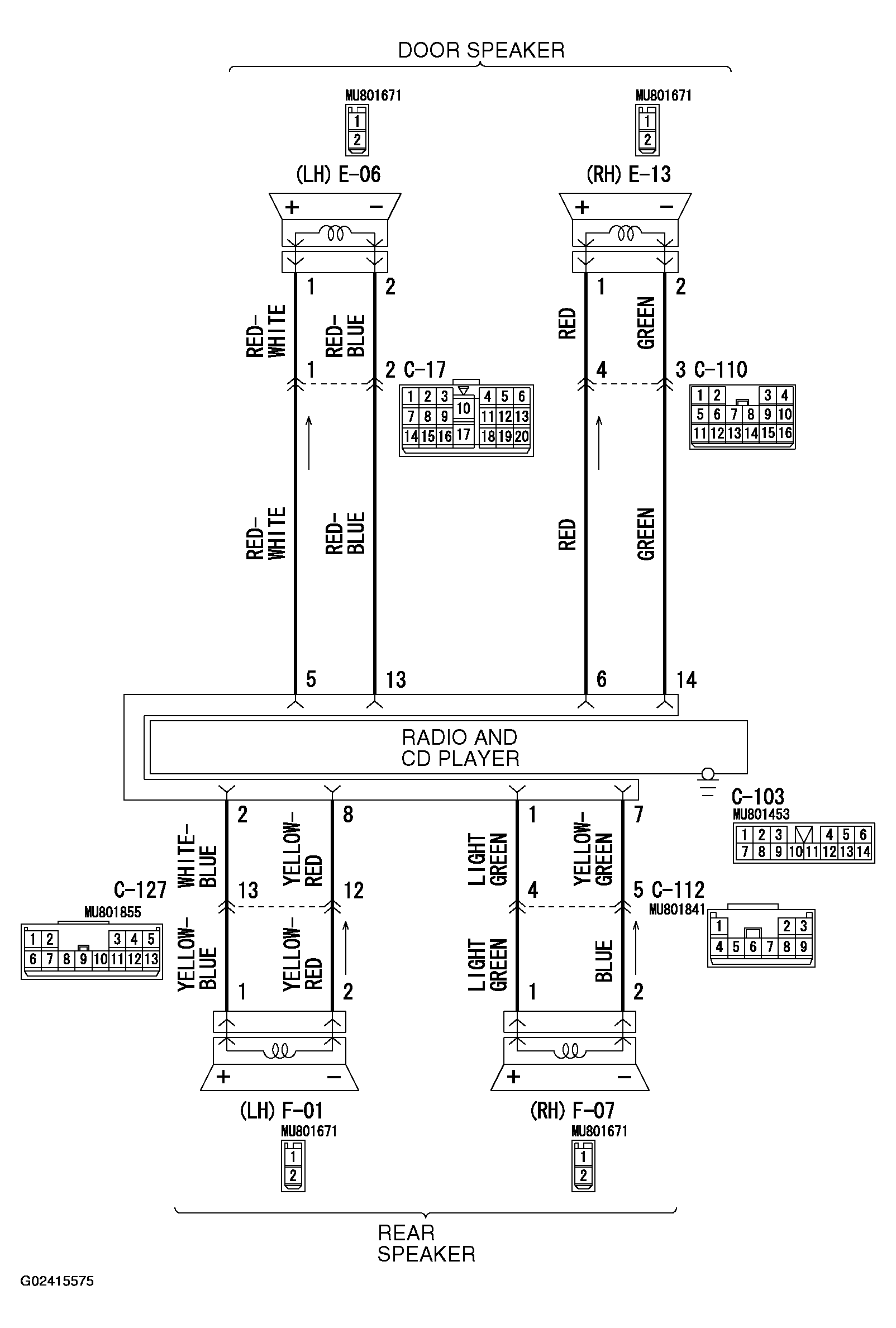

Fig 2: Speaker System Circuit < 4 Speaker > Wiring Diagram (1 Of 2)
G02415575Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

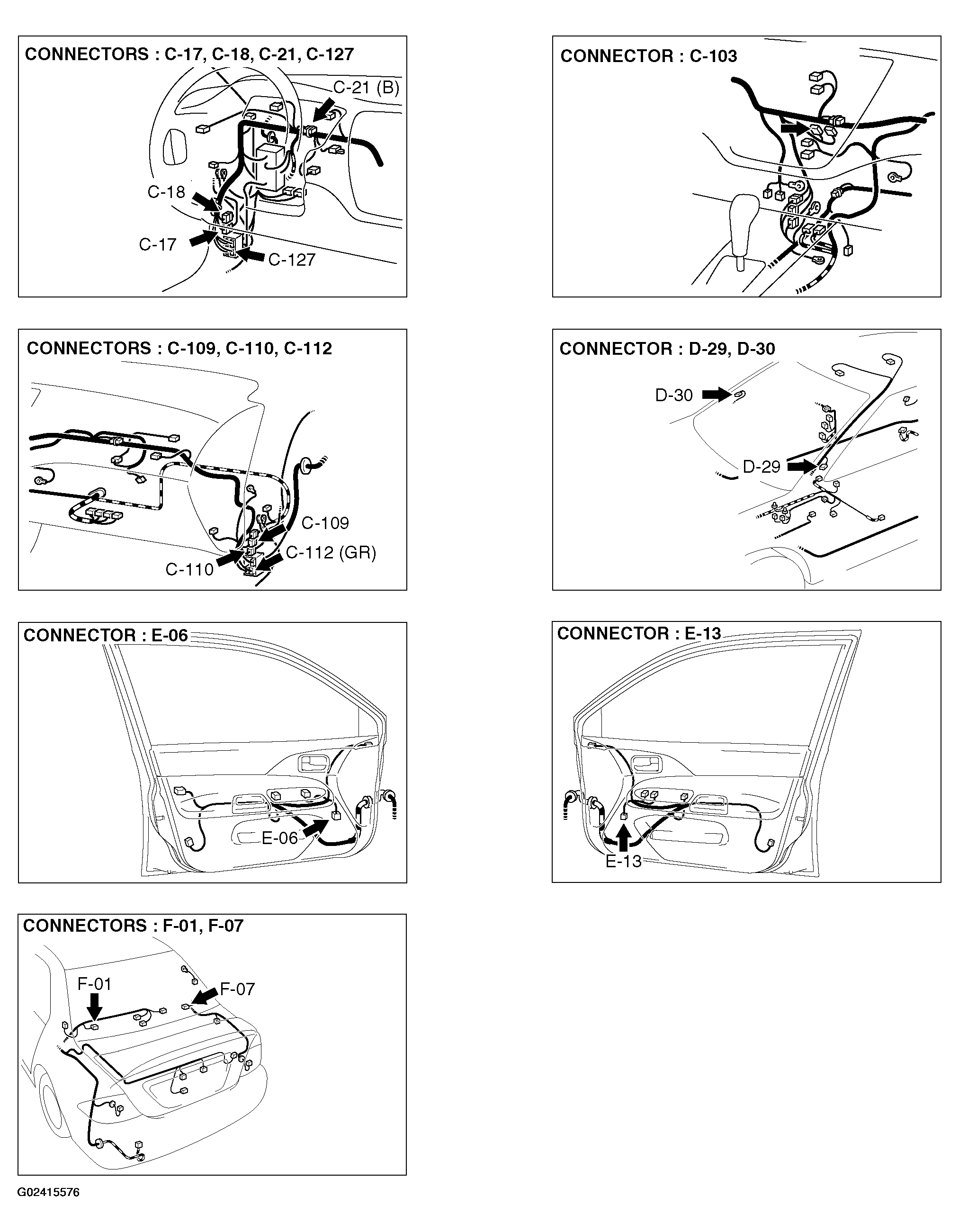

Fig 3: Speaker System Circuit < 4 Speaker > Wiring Diagram (2 Of 2)
G02415576Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
