INSPECTION PROCEDURE 1: Power of radio and CD player does not turn ON when the ignition switch is in the "ACC" position or "ON" position.: Notes

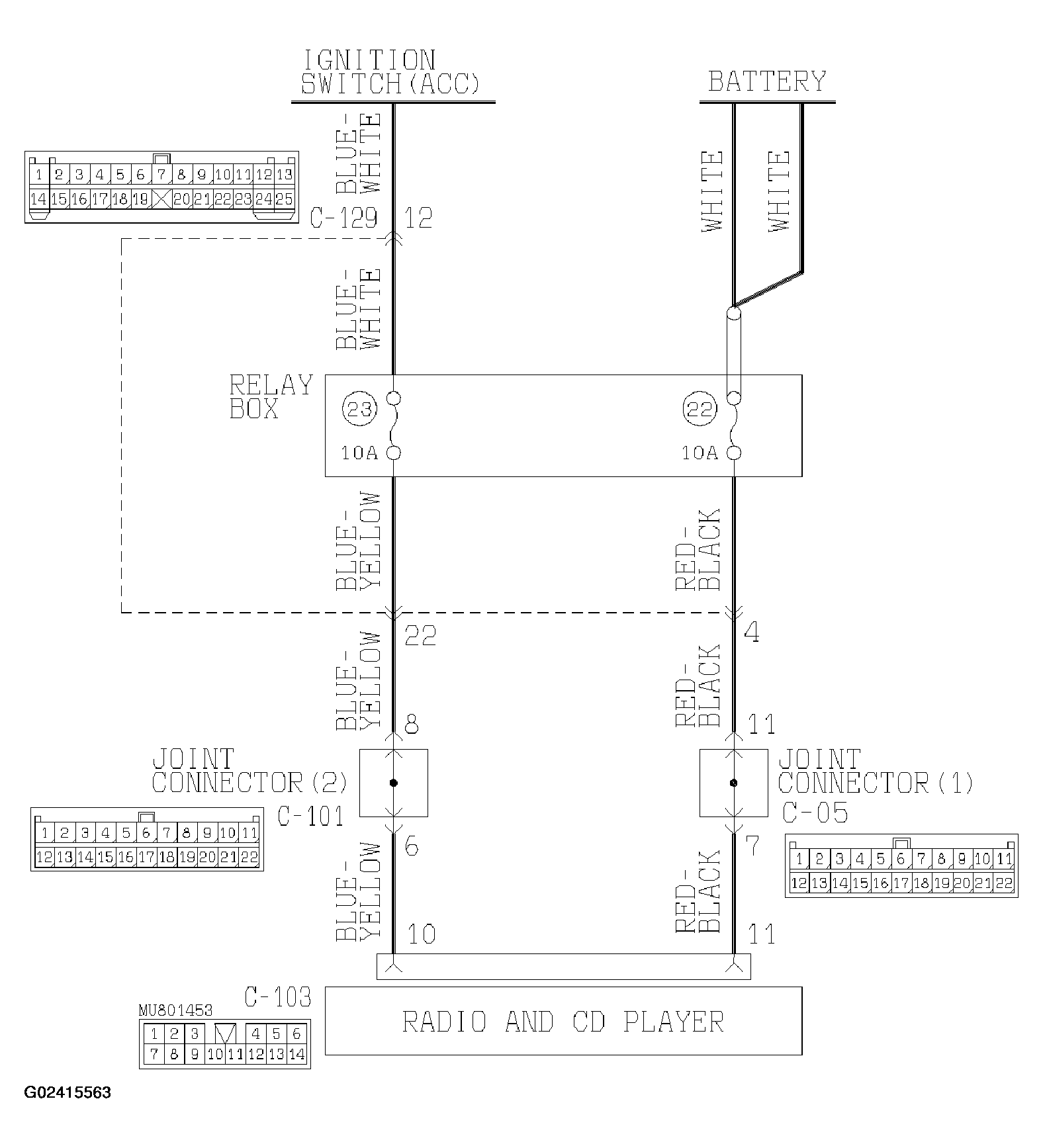

Fig 1: Radio And CD Player Supply Circuit Wiring Diagram (1 Of 2)
G02415563Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

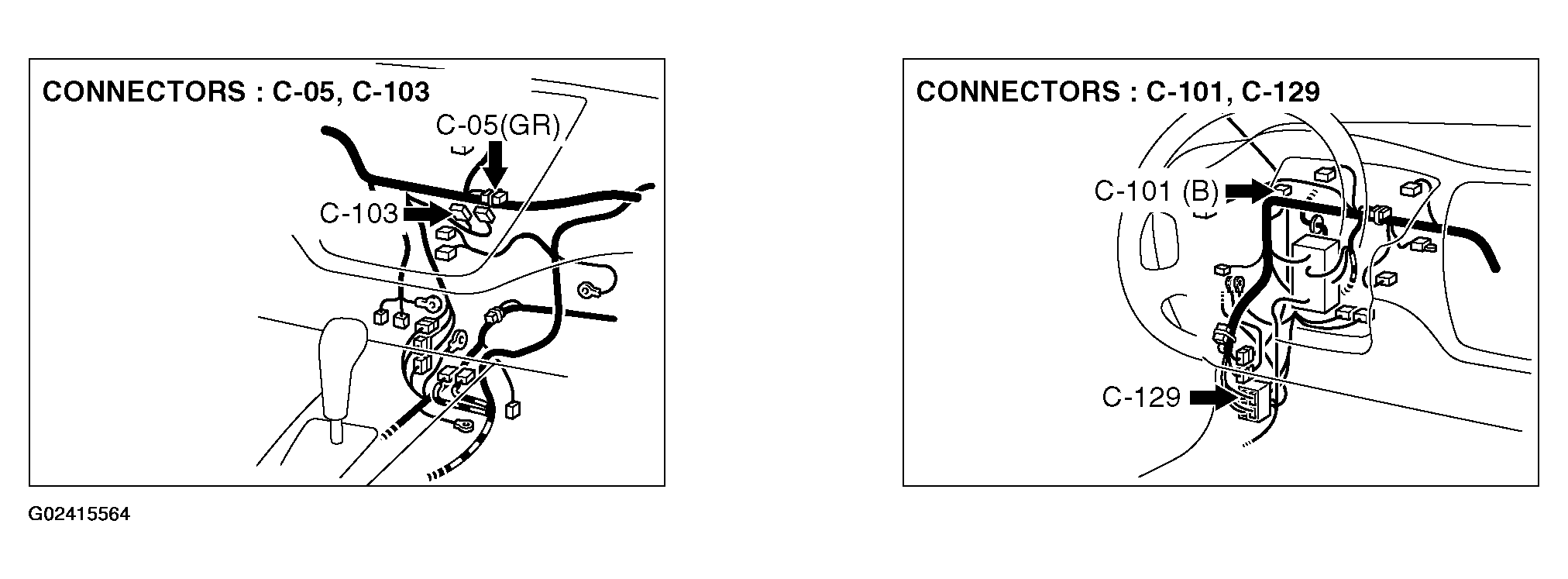

Fig 2: Radio And CD Player Supply Circuit Wiring Diagram (2 Of 2)
G02415564Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
