Removal And Installation

WARNING:

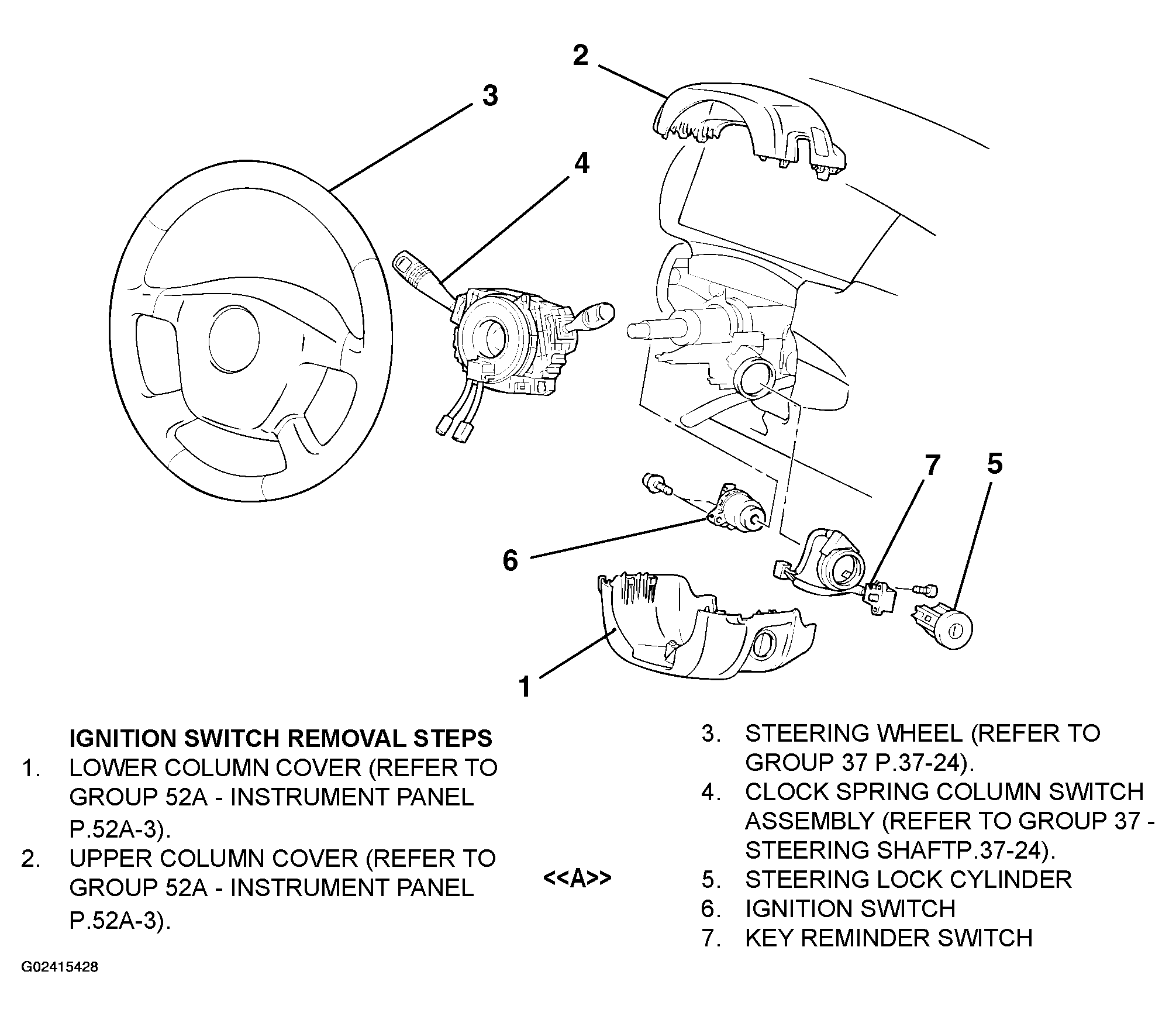

Fig 1: Exploded View Of Ignition Switch
G02415428Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
