Fog Light Adjustment

Check if the beam shining onto the screen is at the standard value.

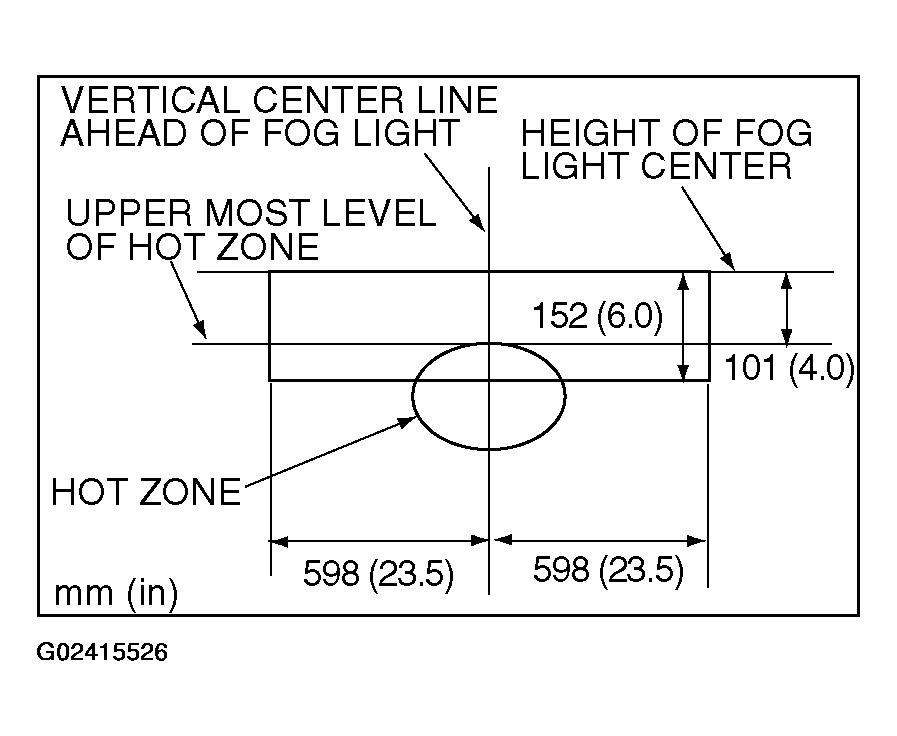

Fig 1: Checking Fog Light
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If it is not within the standard value range, adjust by turning the adjusting screw.
1. Standard value:
2. (Vertical direction): Top of the hot zone should be 101 mm (4.0 inches) (0.76 degrees angle) downward from the height of the fog light center.
3. Limit:
4. (Vertical direction): Top of the hot zone should be 152mm (6.0 inches) (1.14 degrees angle) in maximum downward from the height of the fog light center.

  Fig 2: Adjusting Turning
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The horizontal direction is non-adjustable. If deviation of the light beam axis exceeds the standard value, check that the mounting location or some other points are not faulty.
