INSPECTION PROCEDURE 5: Engine Coolant Temperature Gauge does not Work.: Notes

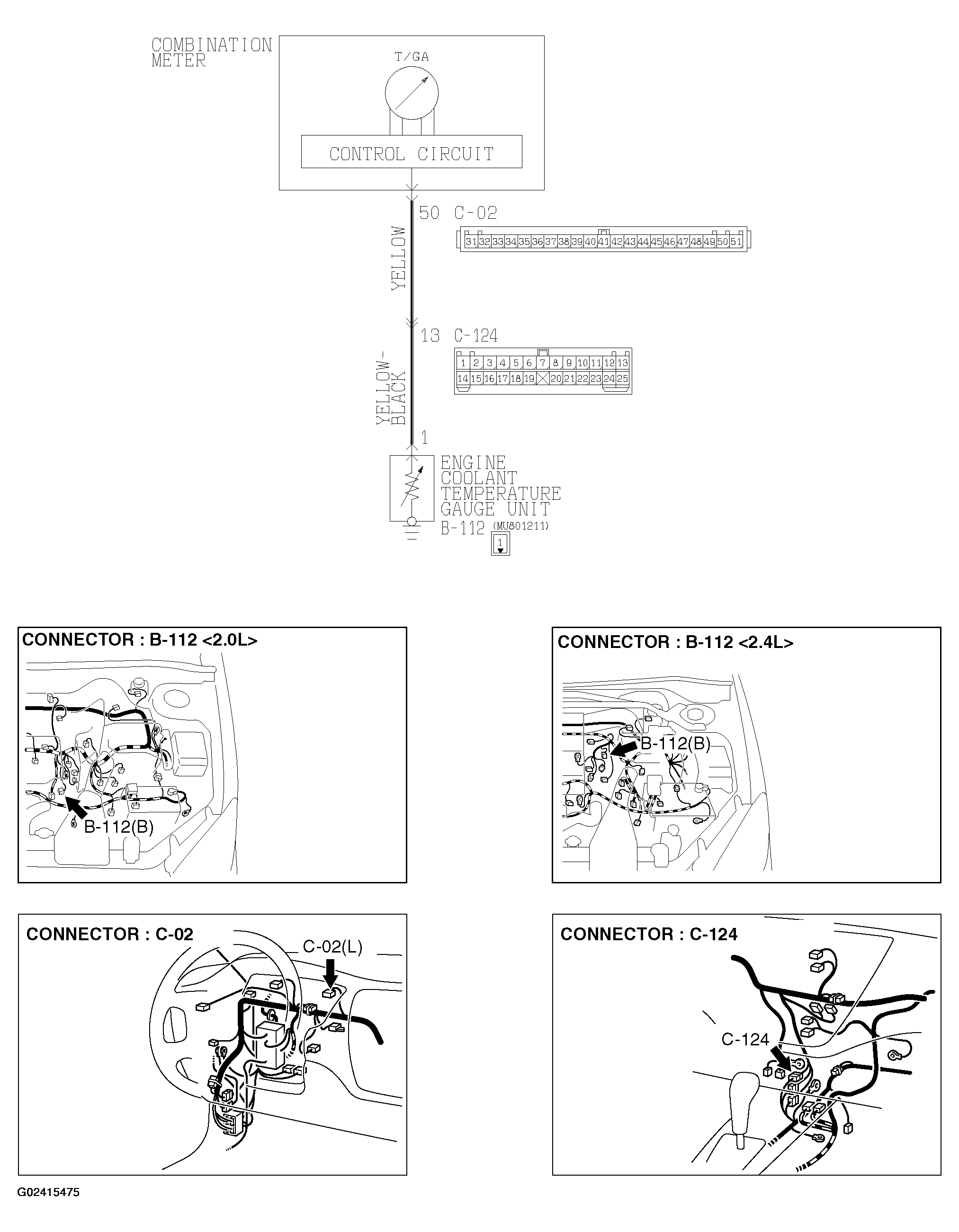

Fig 1: Identifying Engine Coolant Temperature Gauge Circuit Wiring Diagram

G02415475

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
