INSPECTION PROCEDURE 4: Fuel Gauge does not Work.: Notes

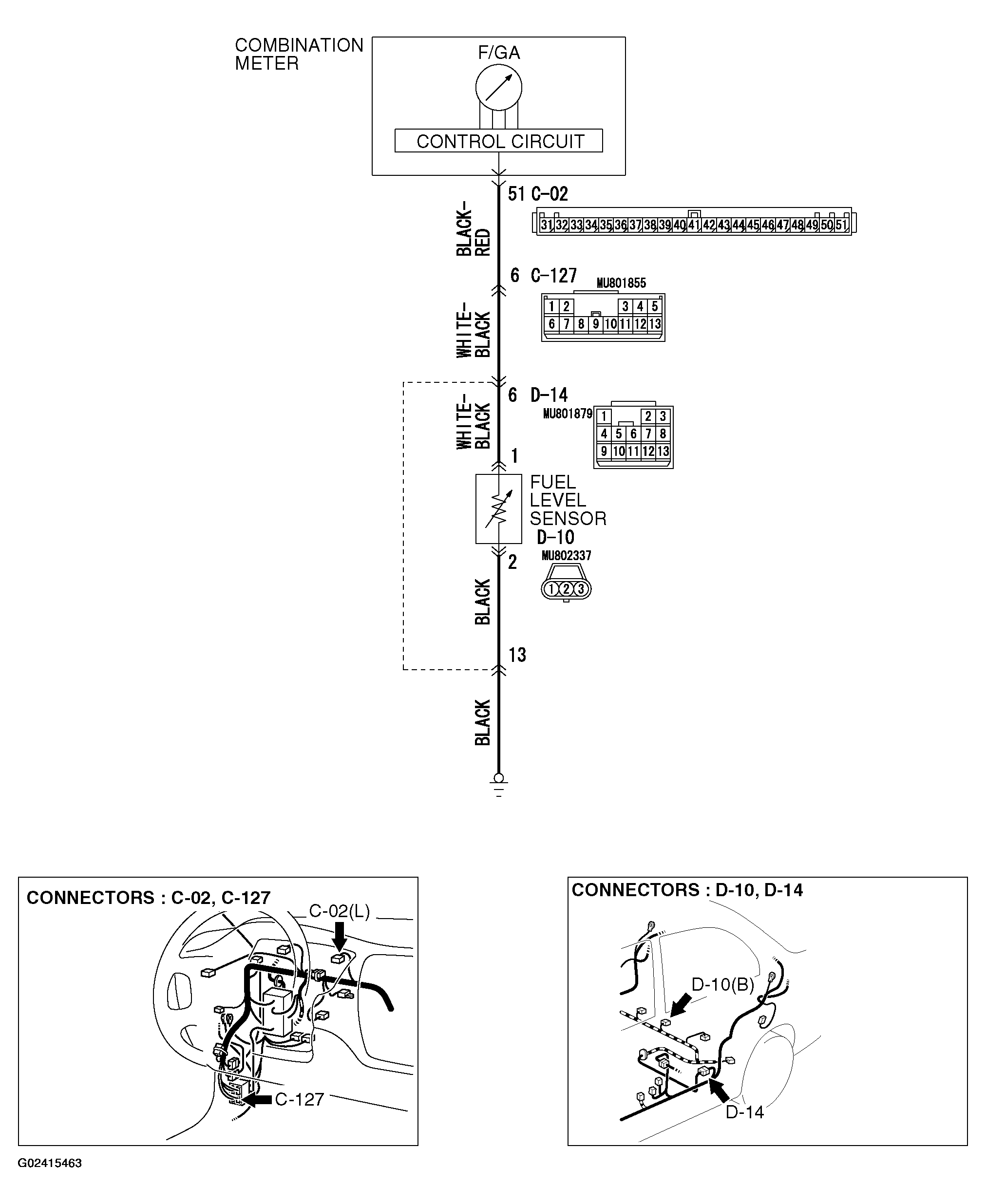

Fig 1: Identifying Fuel Gauge Circuit Wiring Diagram

G02415463

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
