INSPECTION PROCEDURE 3: Tachometer does not Work.: Notes

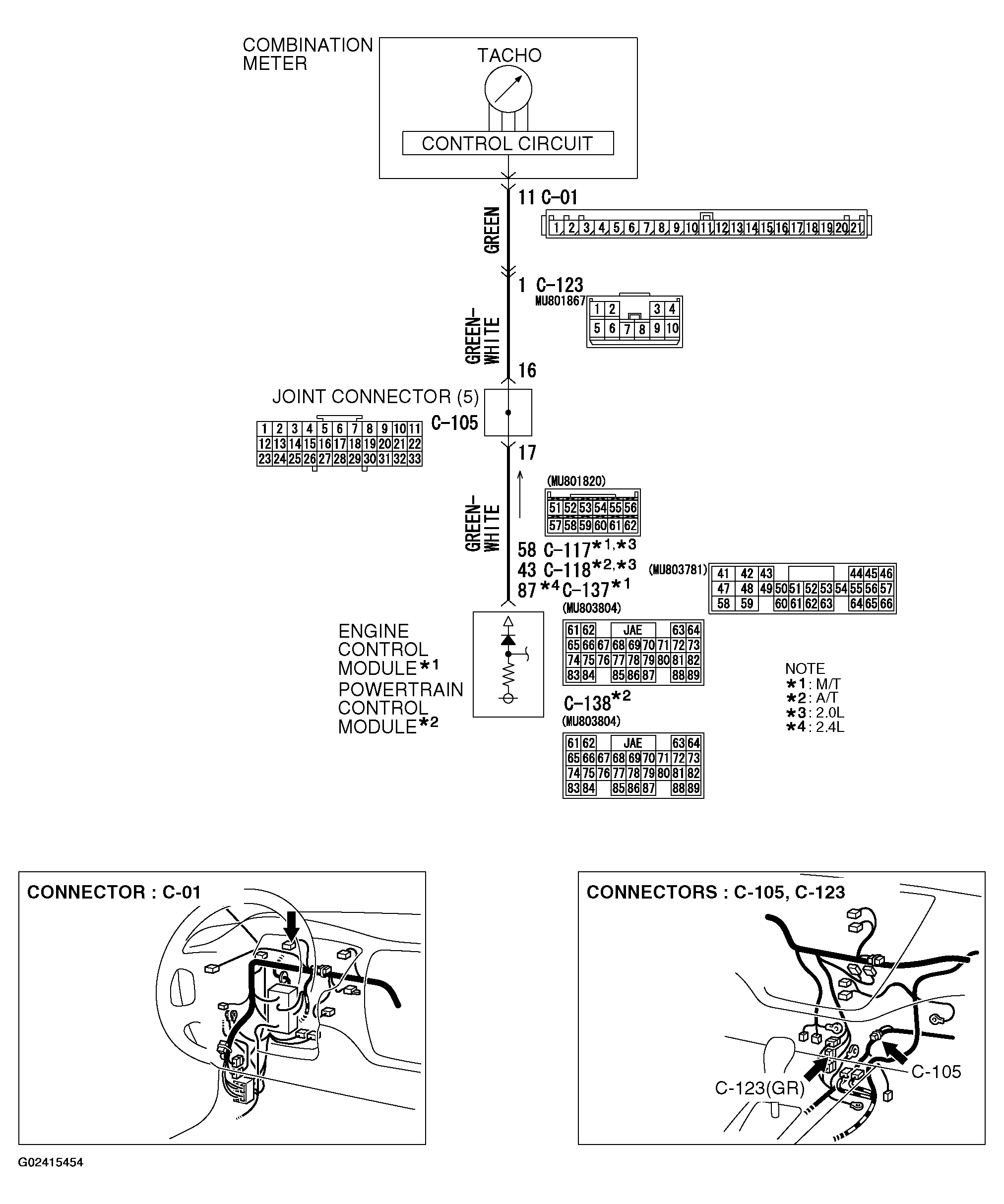

Fig 1: Identifying Tachometer Circuit Wiring Diagram (1 Of 2)
G02415454Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

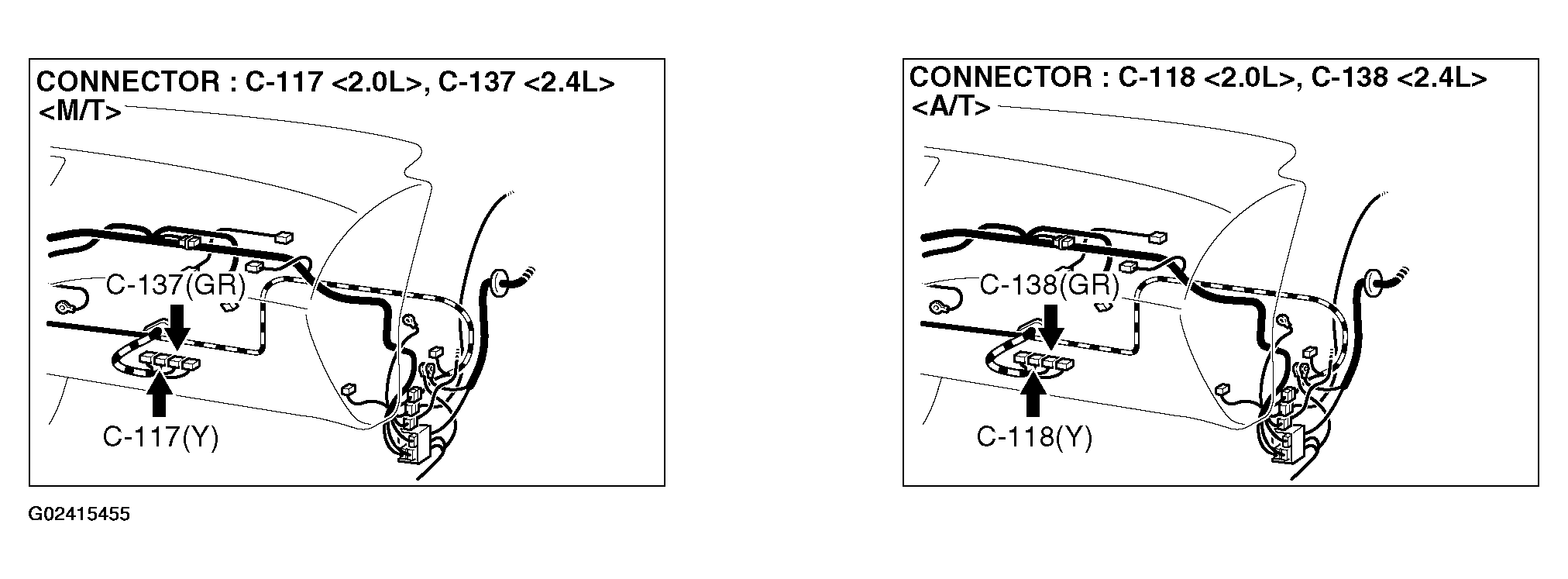

Fig 2: Identifying Tachometer Circuit Wiring Diagram (2 Of 2)
G02415455Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
