INSPECTION PROCEDURE 2: Speedometer does not Work. < M/T >: Notes

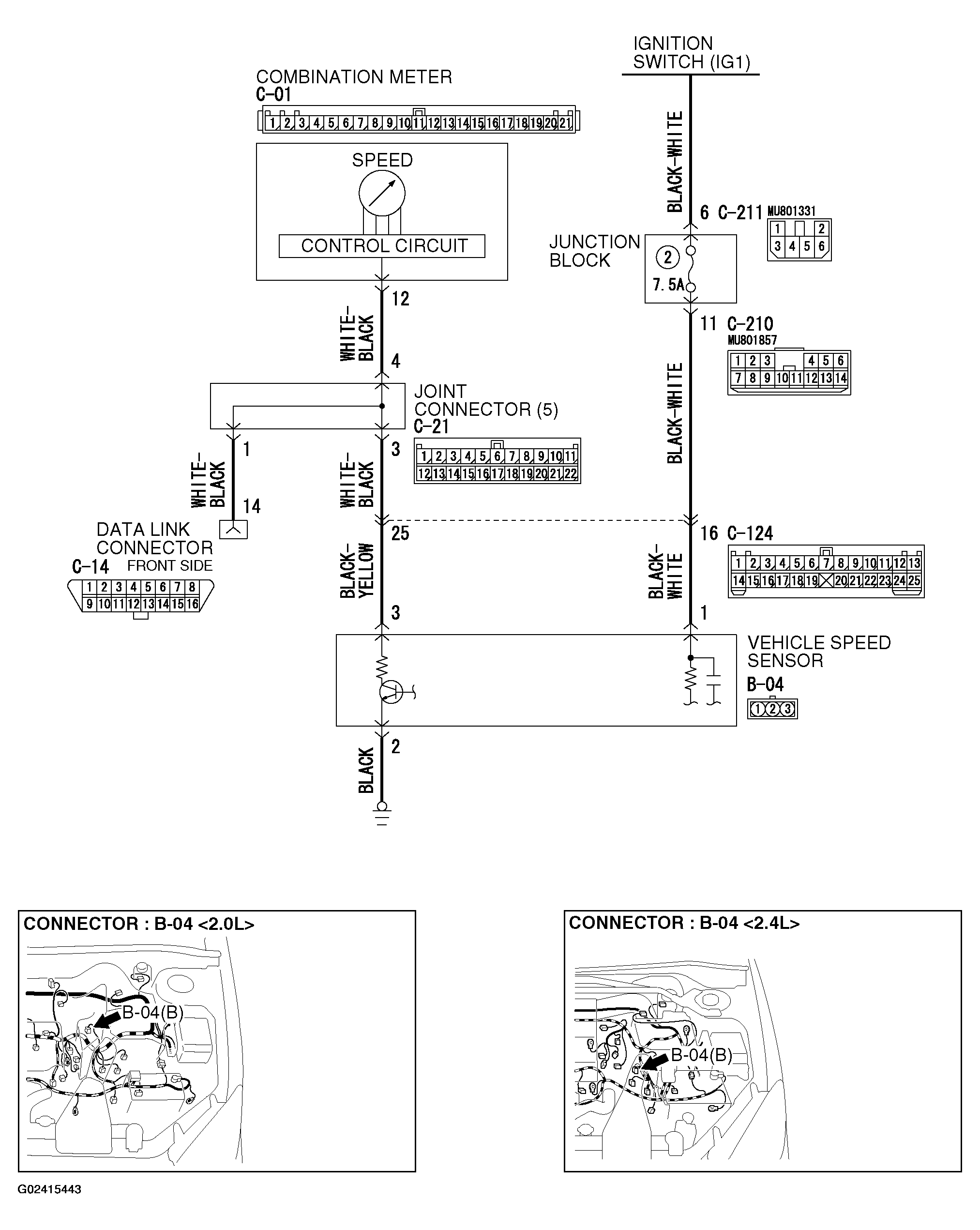

Fig 1: Identifying Speedometer Circuit < M/T > Wiring Diagram (1 Of 2)
G02415443Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

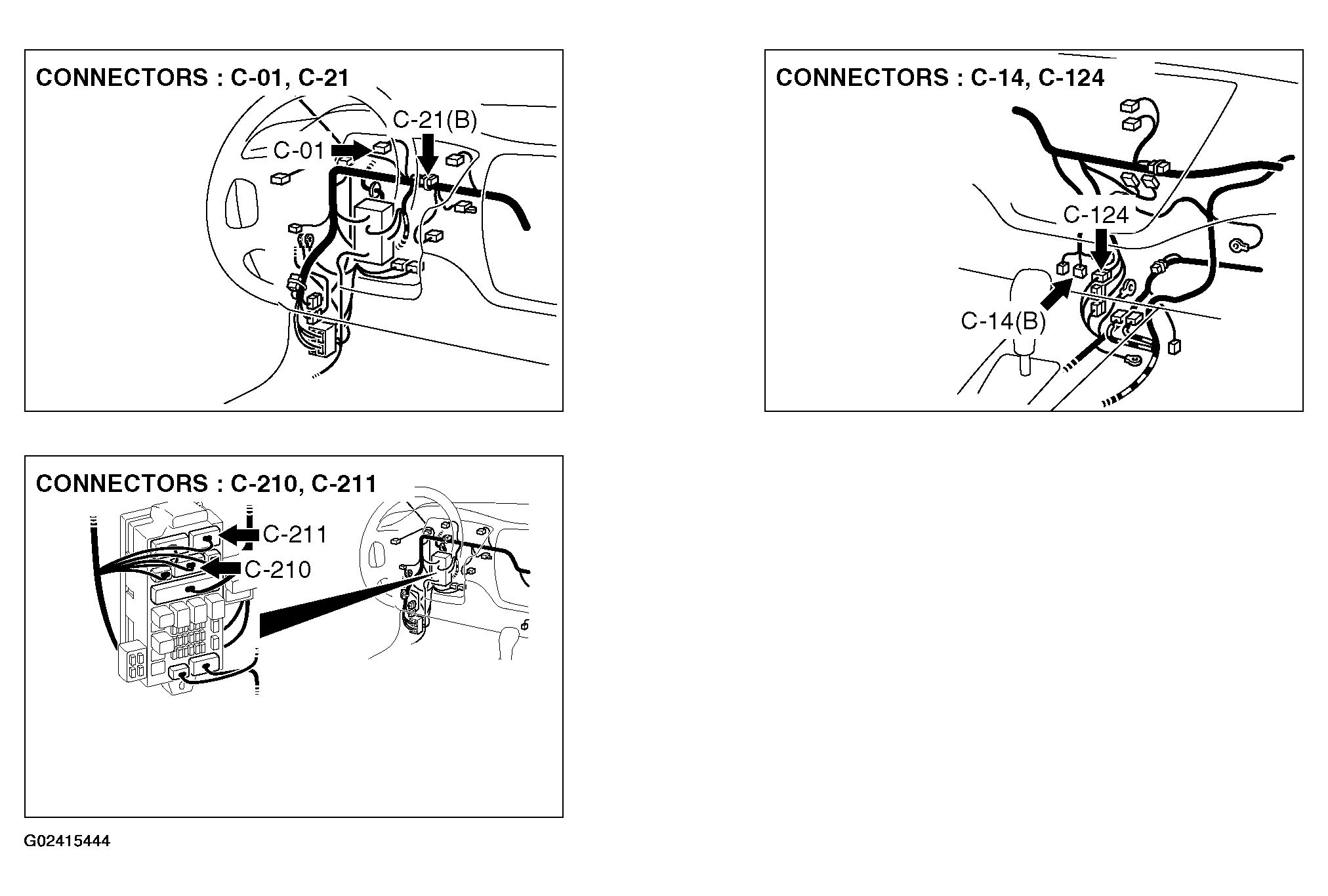

Fig 2: Identifying Speedometer Circuit < M/T > Wiring Diagram (2 Of 2)
G02415444Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
