Combination Meter Internal Resistance Check

Use circuit tester to measure combination meter internal resistance.

Standard value:

COMBINATION METER INTERNAL RESISTANCE CHECK

measuring terminal No. Terminal name Standard value (Ω)
1-21 Engine coolant temperature gauge to ground 233 +/- 3
31-51 Fuel gauge to ground 181 +/- 2

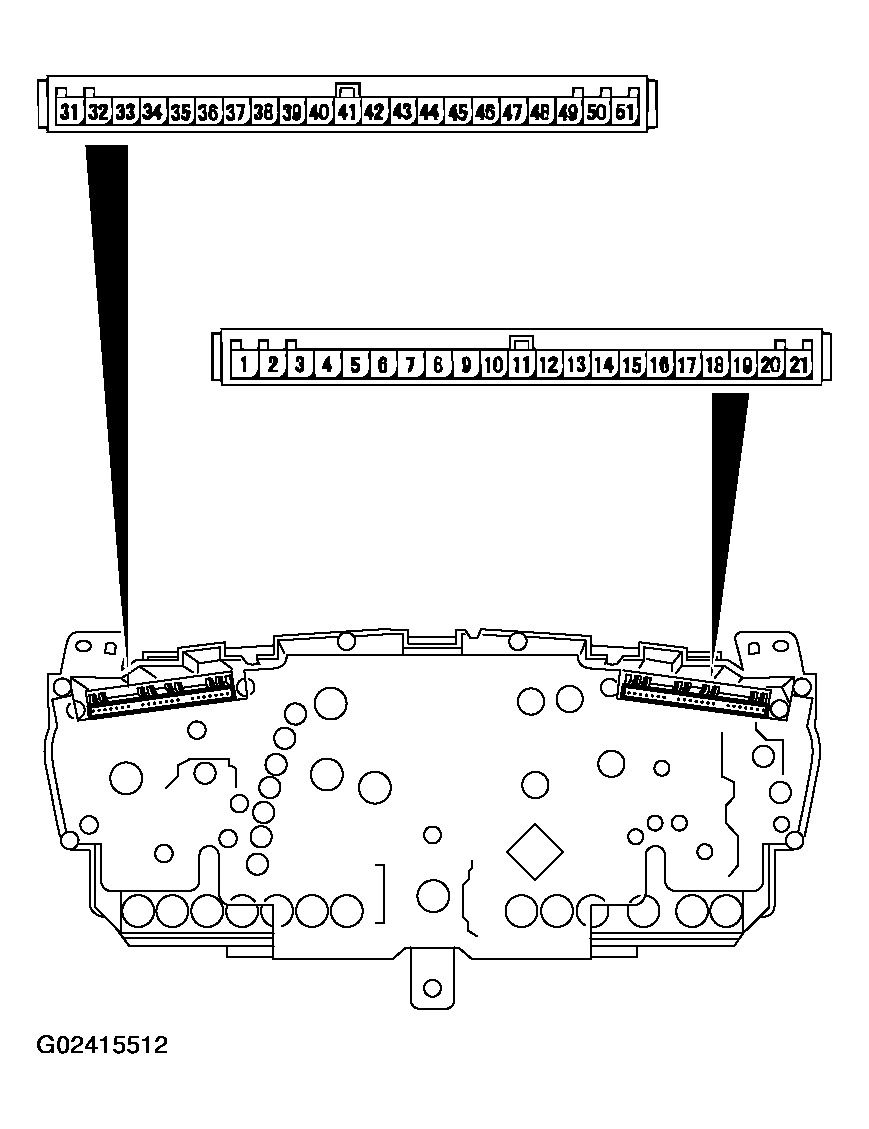

Fig 1: Checking Combination Meter Internal
G02415512Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
