Diagnostic Trouble Code Chart

CAUTION: During diagnosis, a DTC code associated with another system may be set when the ignition switch is turned on with connector(s) disconnected. After completing the repair, confirm all systems for DTC code(s). If DTC code(s) are set, erase them all.

Inspect according to the inspection chart that is appropriate for the DTC.

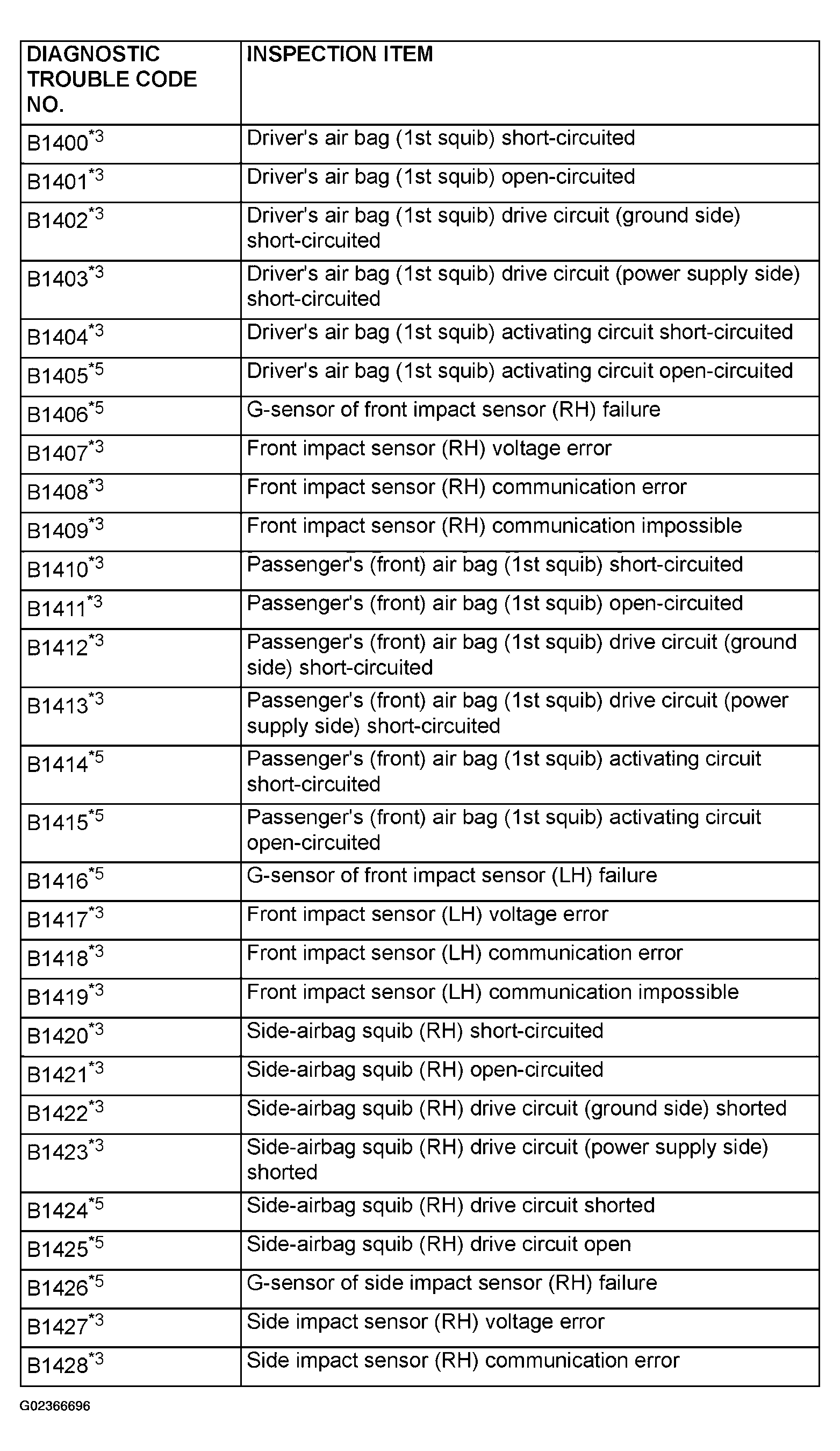

Fig 1: Diagnostic Trouble Code Chart (1 Of 5)

G02366696

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

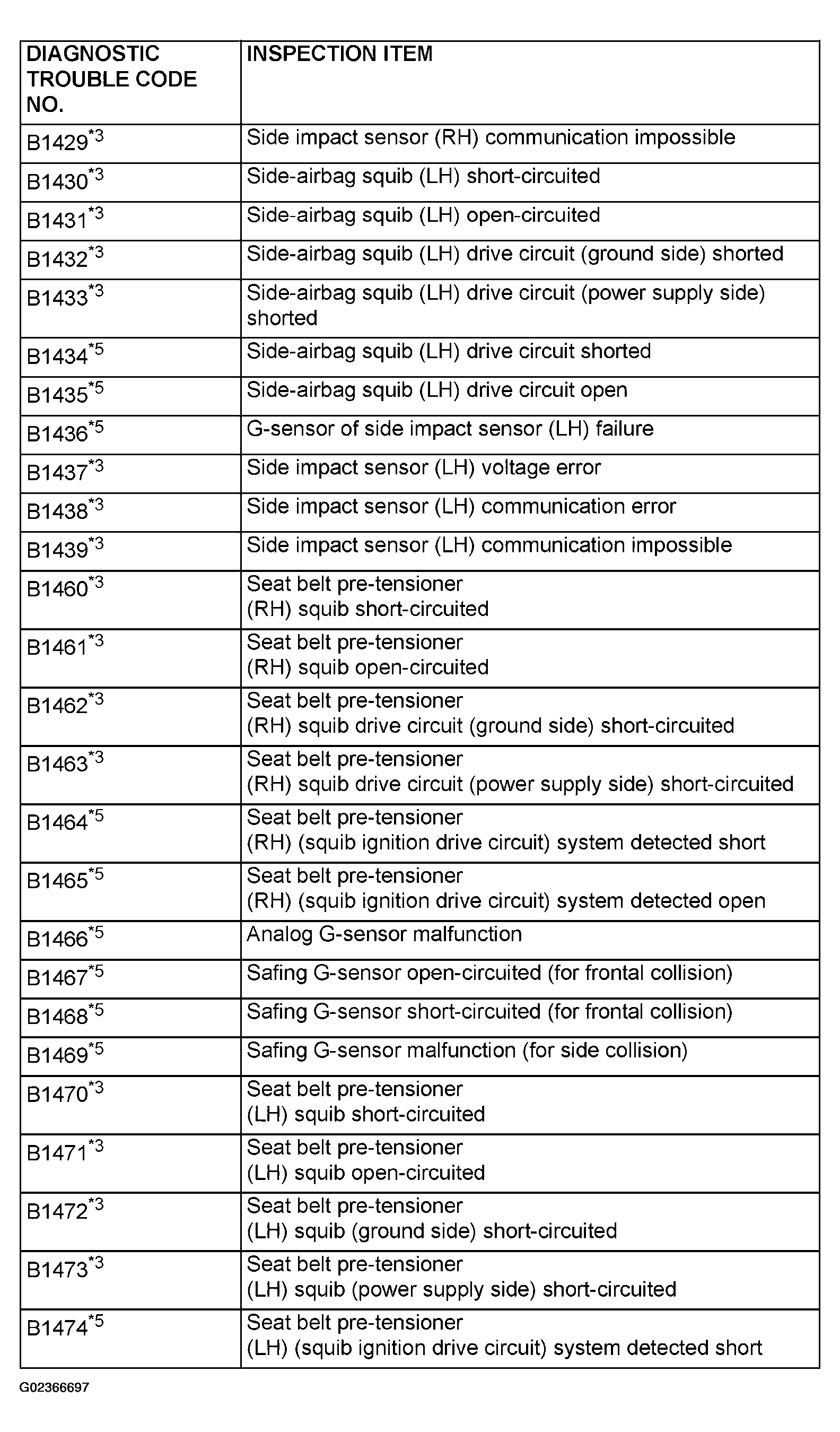

Fig 2: Diagnostic Trouble Code Chart (2 Of 5)

G02366697

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

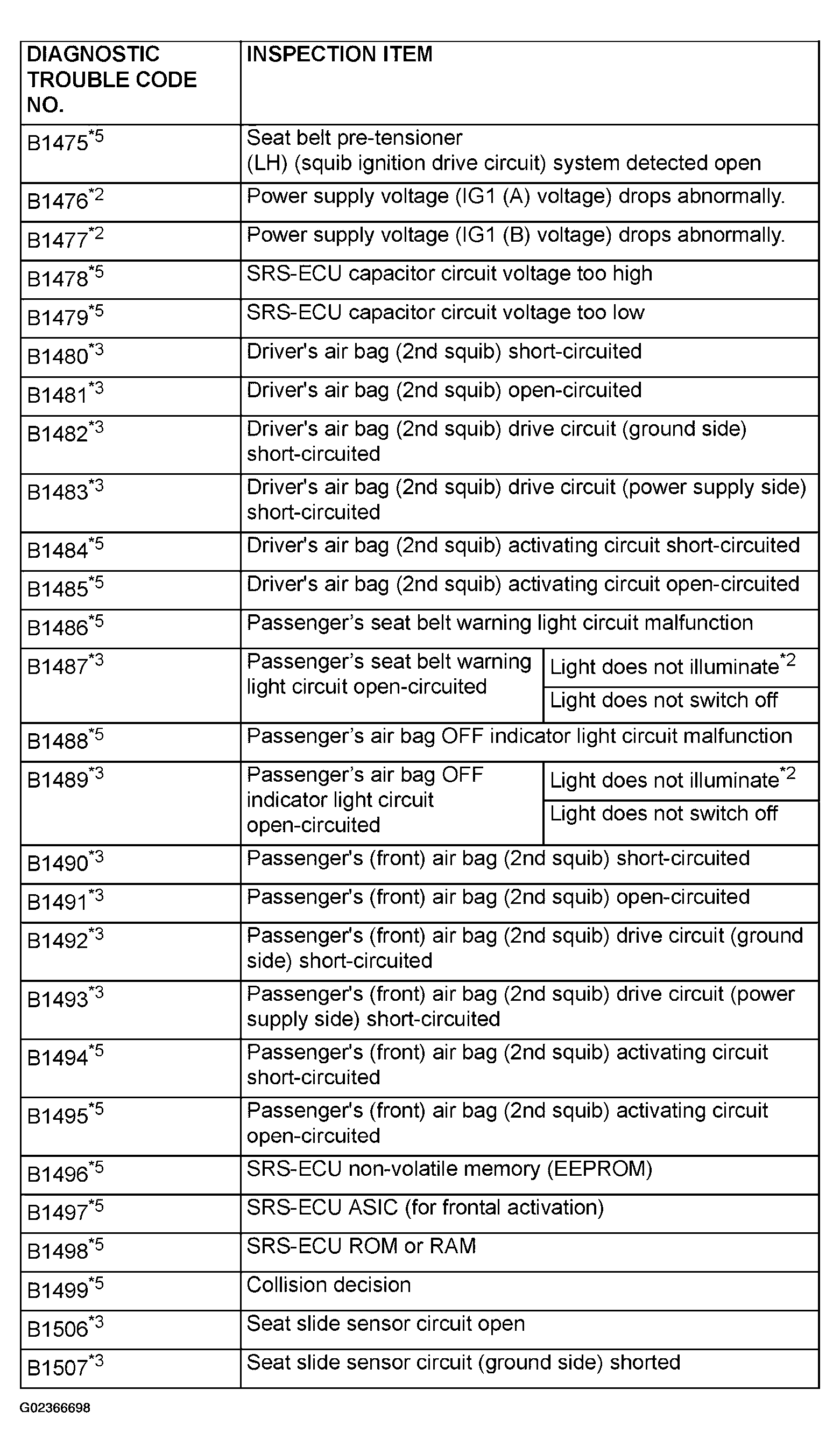

Fig 3: Diagnostic Trouble Code Chart (3 Of 5)

G02366698

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

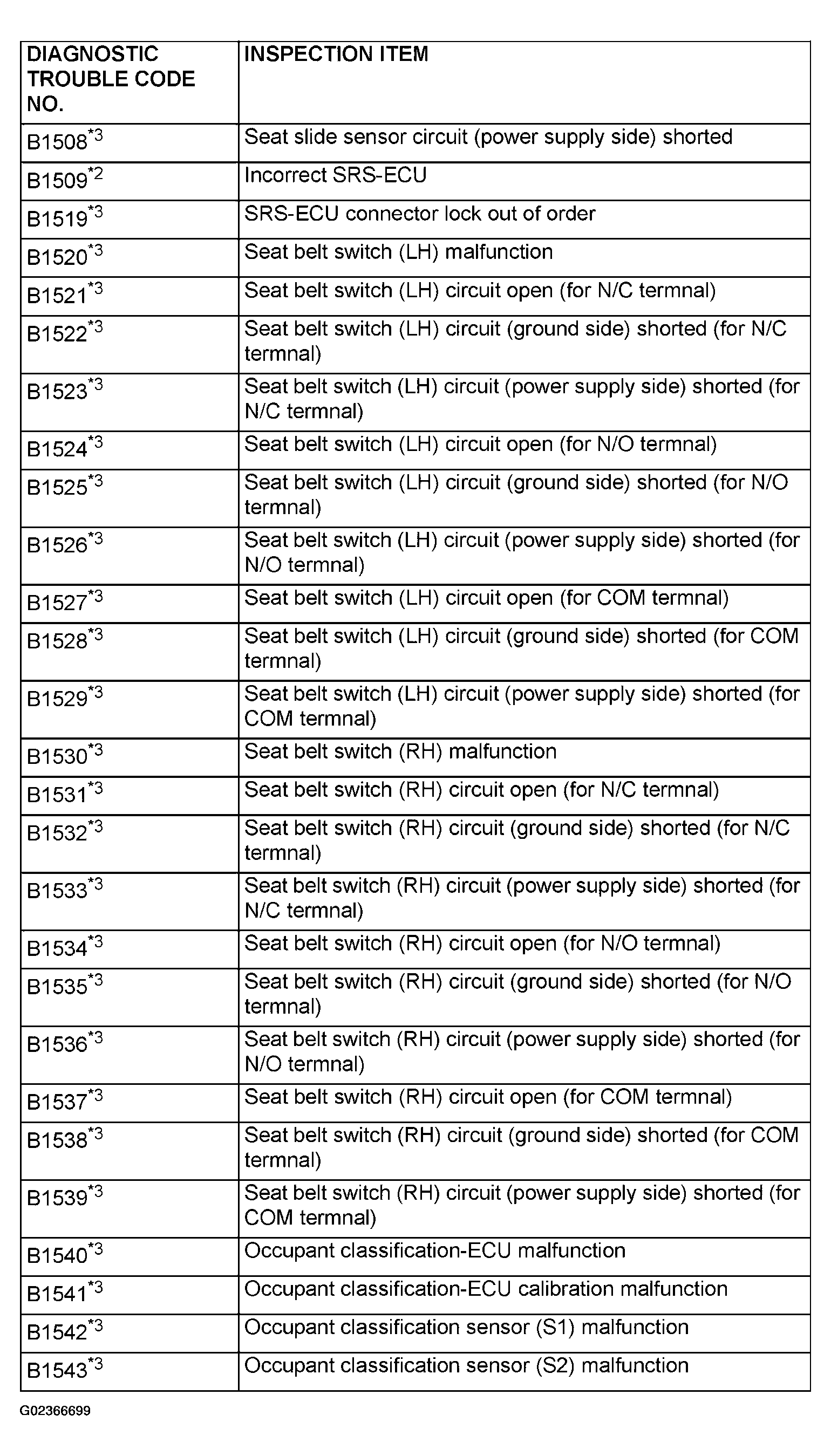

Fig 4: Diagnostic Trouble Code Chart (4 Of 5)

G02366699

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

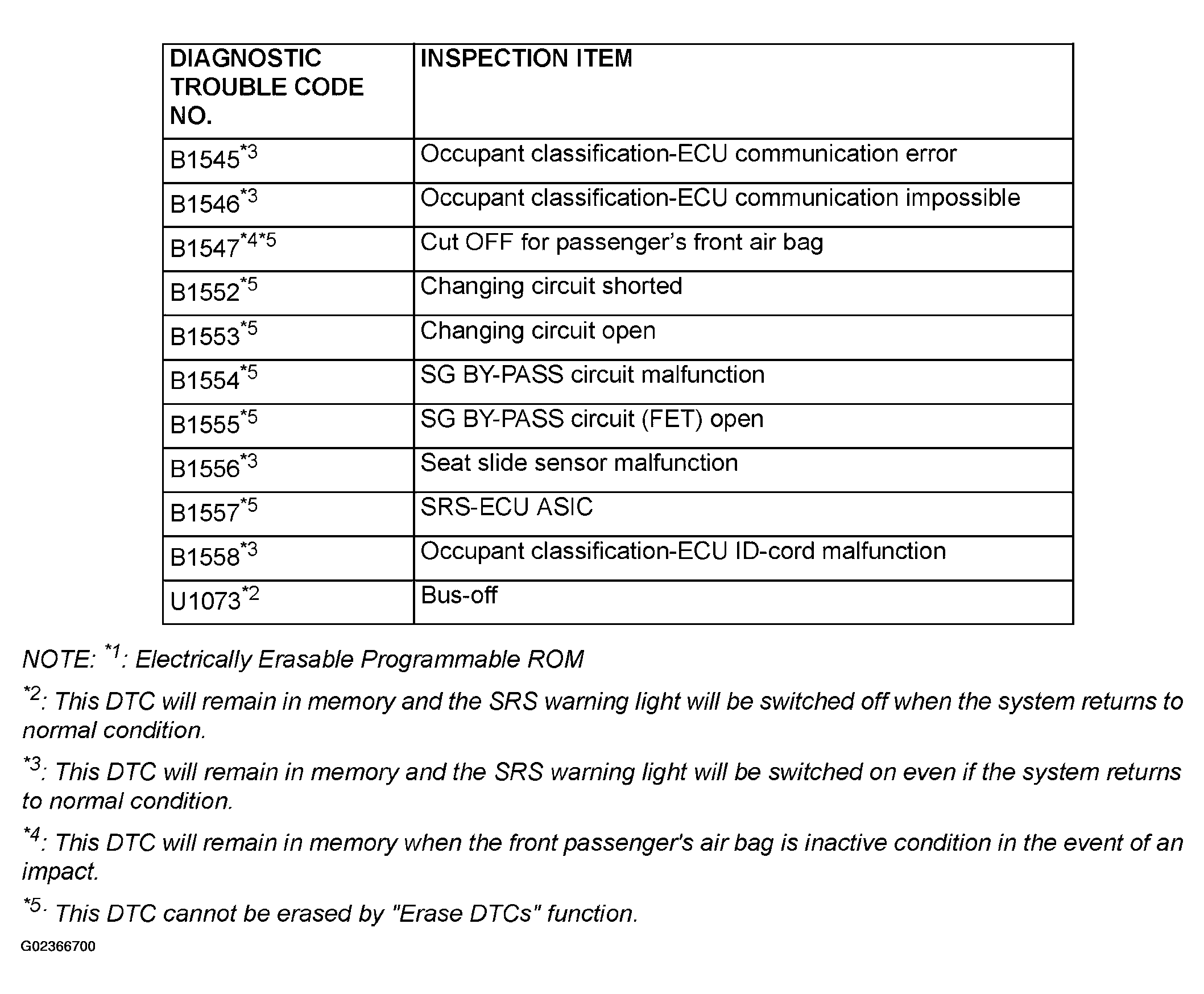

Fig 5: Diagnostic Trouble Code Chart (5 Of 5)

G02366700

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE:

*1: Electrically Erasable Programmable ROM
*2: This DTC will remain in memory and the SRS warning light will be switched off when the system returns to normal condition.
*3: This DTC will remain in memory and the SRS warning light will be switched on even if the system returns to normal condition.
*4: This DTC will remain in memory when the front passenger's air bag is inactive condition in the event of an impact.
*5: This DTC cannot be erased by "Erase DTCs" function.
