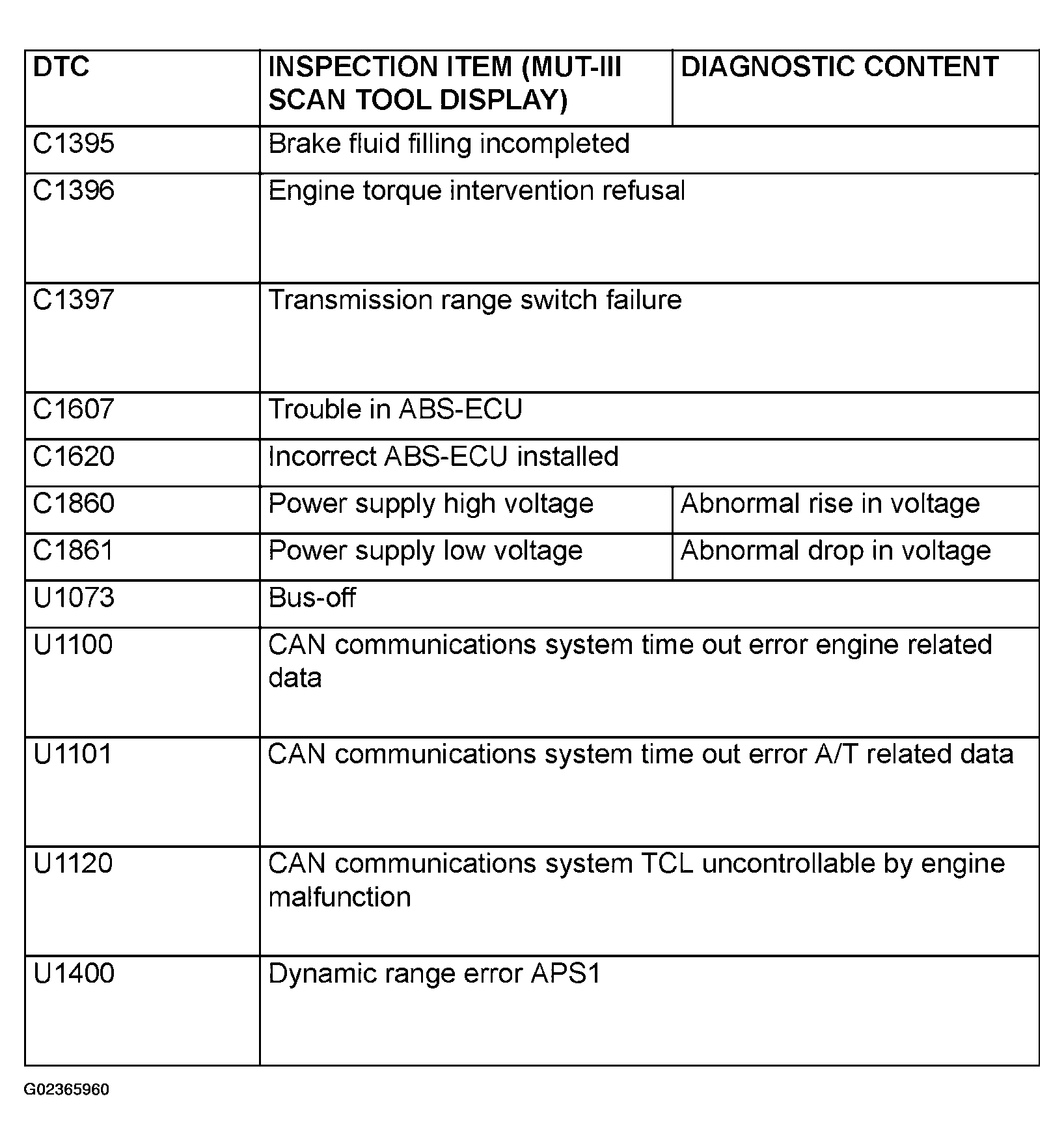

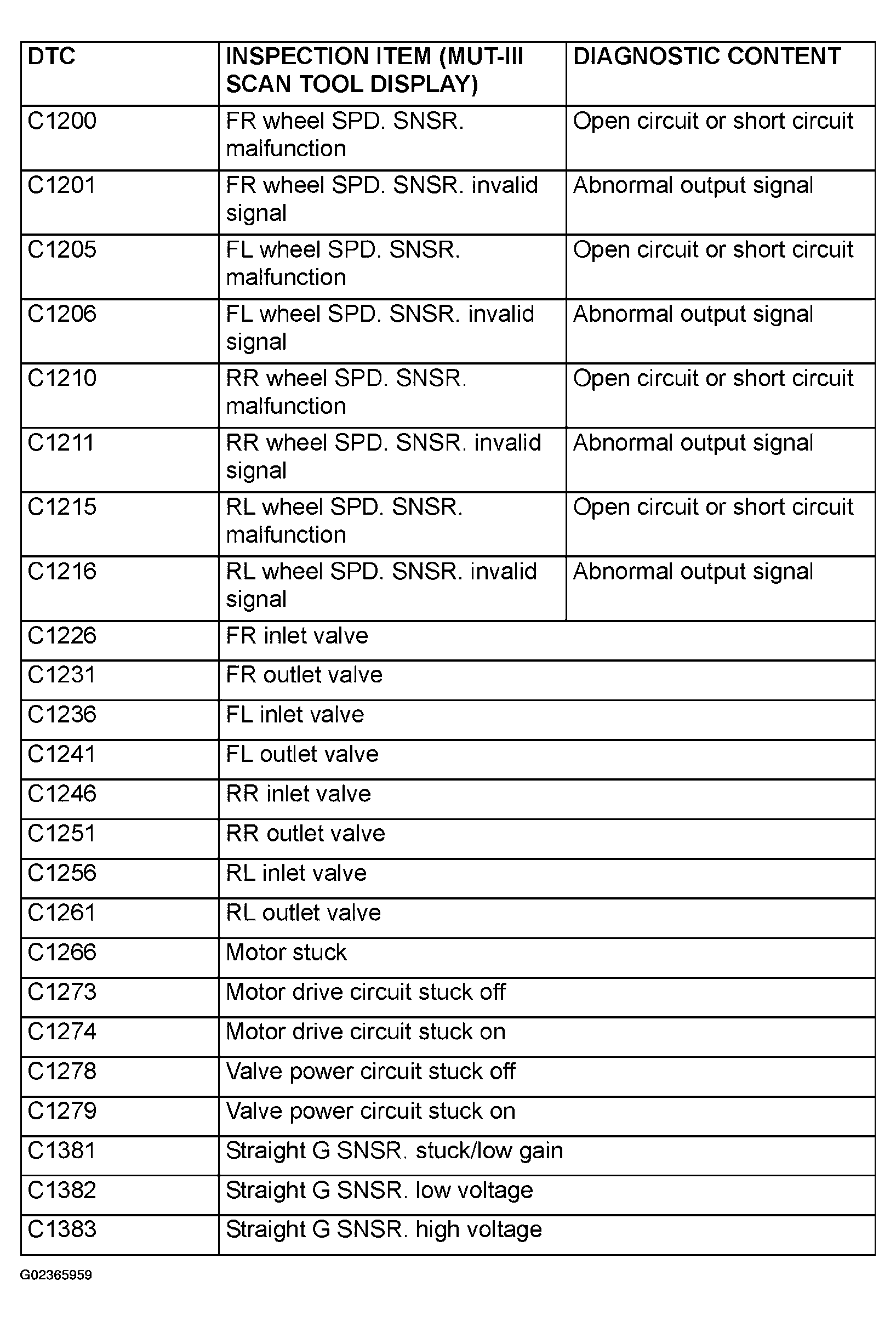

Diagnostic Trouble Code Chart
NOTE:
For vehicles with ASC, refer to TCL/ASC DIAGNOSIS
.
CAUTION:
During diagnosis, a DTC code associated with other system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTC code(s). If DTC code(s) are set, erase them all.
