INSPECTION PROCEDURE 1: A Disk is not Played Although It is Inserted.: Notes

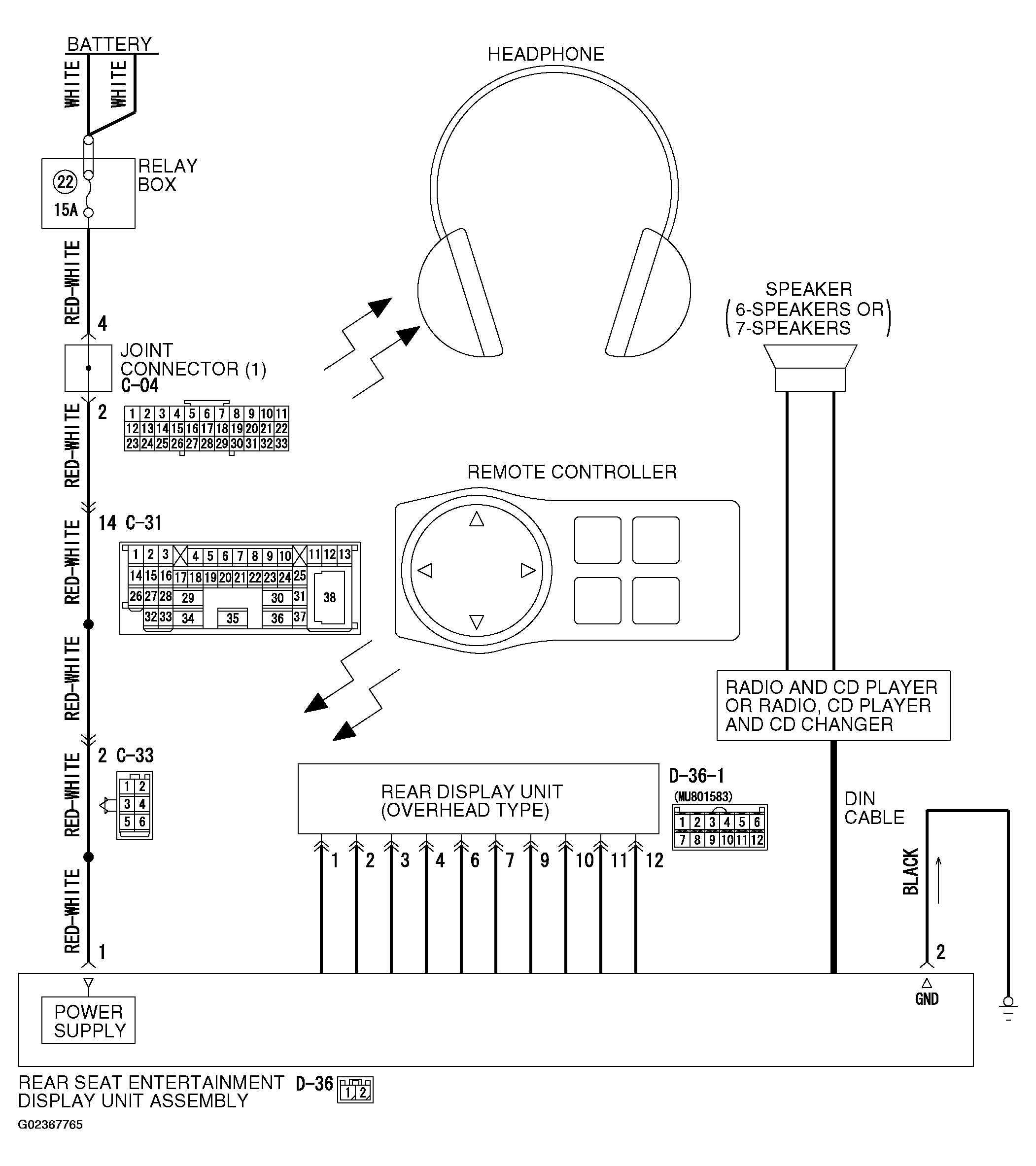

Fig 1: Video Entertainment System (VES) Diagram & Connector Identification (1 Of 2)
G02367765Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Video Entertainment System (VES) Diagram & Connector Identification (1 Of 2)
G02367766Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
