< Combination Meter >

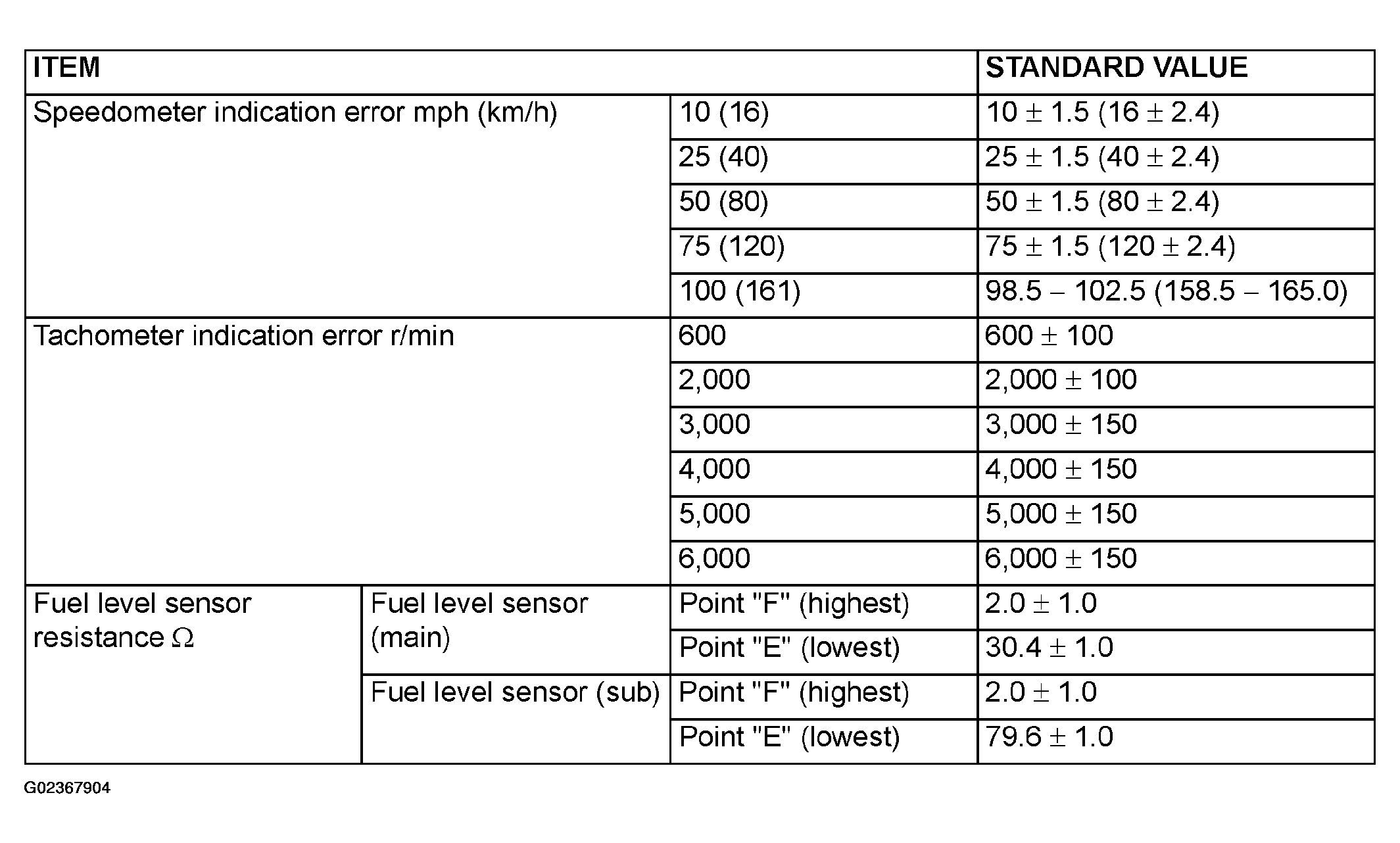

Fig 1: Combination Meter Standard Specification (1 Of 2)
G02367904Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

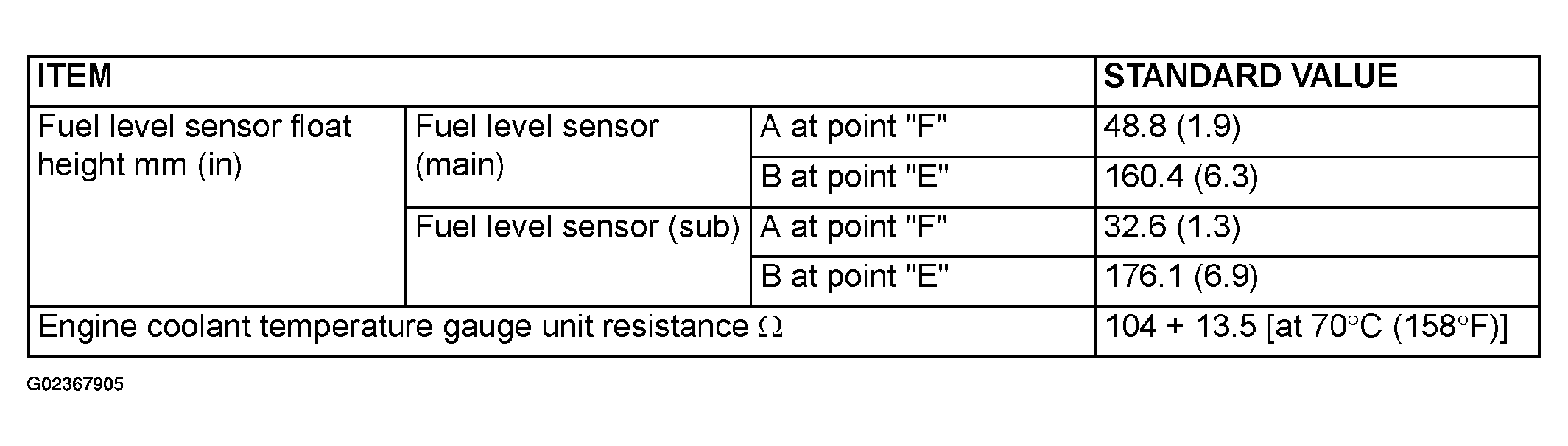

Fig 2: Combination Meter Standard Specification (2 Of 2)
G02367905Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
